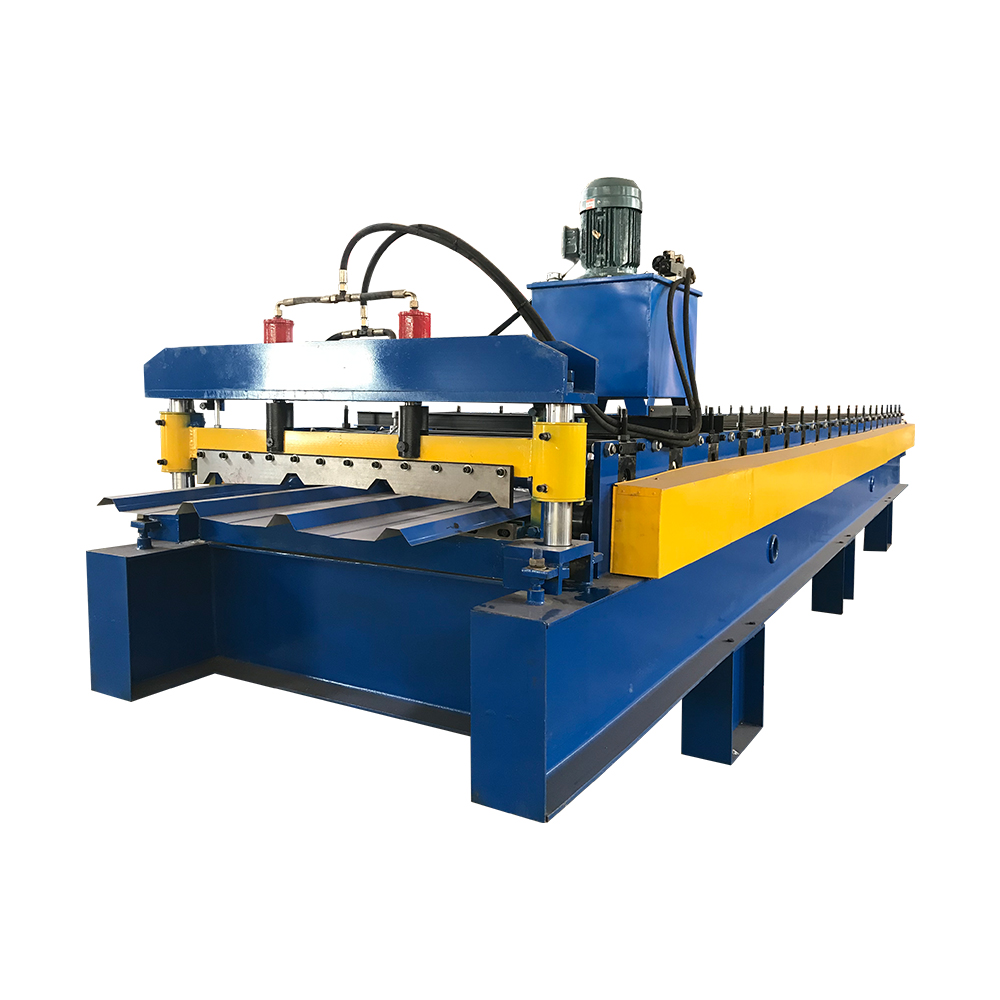

1000 Trapezoidal Metal Sheet Roll Forming Machine
Every machine leave our factory with one book of operation manual. You can read through the manual first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.
Roof roll forming machine parameters
|1||Main motor power||4kW, 3-phase or as your requests|
|2||Hydraulic motor power||3kW|
|4||Voltage||380V/3-phase/50Hz (or as your requirements)|
|5||Control system||PLC delta inverter|
|6||Mainframe||300/350mm H-beam or 350mm|
|8||Chain size||1 Inch|
|9||Feeding material||color steel coils|
|14||Roll station||13 roll steps (according to different design)|
|15||Roller diameter||70mm (depends on different design)|
|16||Roller material||45# steel|
|20||Total weight||4.8 tons|
Manual un-coiler: 1 set

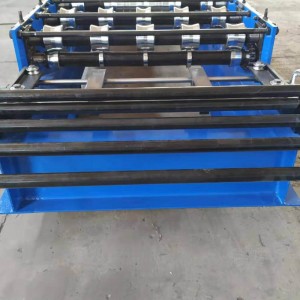

Guiding platform: 1 set
Coil strip leveler: 1 set

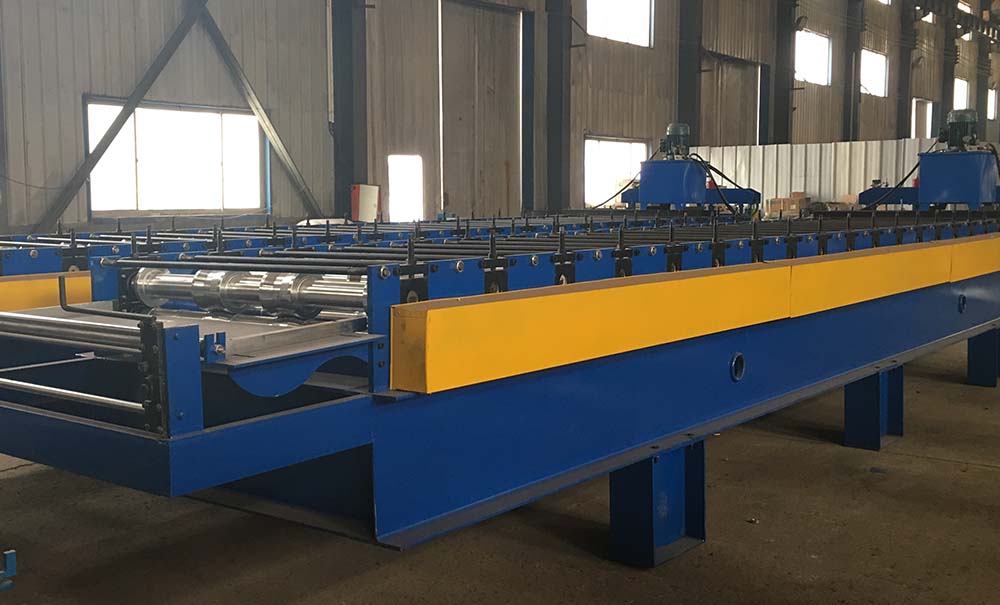

Main machine of roll forming: 1 set
Electric-motor: 1 set

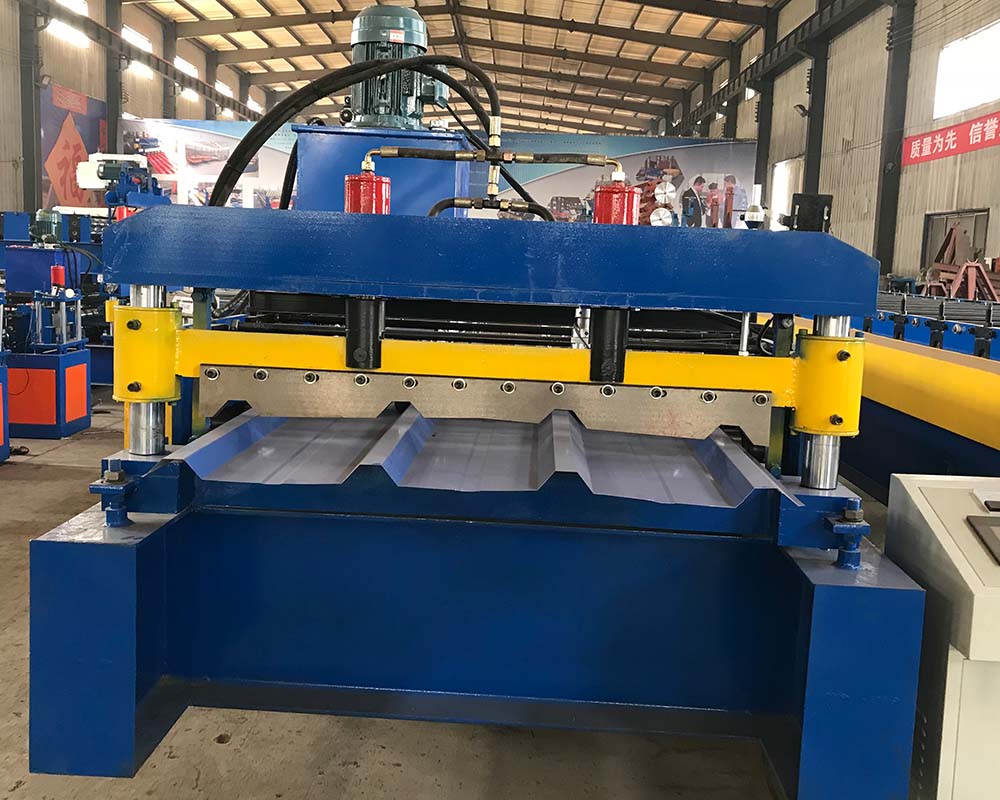

Cutting device: 1 set
Hydraulic station: 1 set
PLC control: 1 set
Supporter table: 1 set
Machine package and shipment details
Standard export packing: 1*40 GP container,main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box.
The advantages of automatic roofing sheet roll forming machine:
1.Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2.Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.
3.We can make and design will kinds of roll forming machine according to customer’s request.
