Our business promises all users of the first-class items and the most satisfying post-sale company. We warmly welcome our regular and new prospects to join us for Floor Deck Roll Former , C/Z Automatic Light Steel Keel Roll Forming Machine , Floor Deck Macking Machine , Our business has already setup a professional, creative and responsible workforce to develop purchasers together with the multi-win principle.
2017 Latest Design Wall/Roof Panel Forming Machine - Reasonable price for Ac Inverter Speed Regulation Roofing Ridge Cap Tile Forming Machine – Haixing Industrial Detail:

“Quality initial, Honesty as base, Sincere company and mutual profit” is our idea, so that you can create consistently and pursue the excellence for Reasonable price for Ac Inverter Speed Regulation Roofing Ridge Cap Tile Forming Machine, The principle of our business is usually to supply high-quality items, skilled services, and truthful communication. Welcome all mates to place trial order for creating a long-term organization connection.
“Quality initial, Honesty as base, Sincere company and mutual profit” is our idea, so that you can create consistently and pursue the excellence for Roofing C/z Tiles Roll Forming Machinery, Roofing Ridge Cap Tile Forming Machine, Roofing Sheet Machine Roofing Sheet Rollforming Machine 914, Since our establishment, we keep on improving our merchandise and customer service. We have been able to offer you with a wide range of high quality hair items at competitive prices. Also we can produce different hair solutions according to your samples. We insist on high quality and reasonable price. Except this, we provide best OEM service. We warmly welcome OEM orders and customers all over the world to cooperate with us for mutual development in the future.
The galvanized ridge roofing sheet/cap roll forming machine is mainly used to produce the roof panel. The traditional ridges are made of glazed tiles, but have now been replaced by new ridge tiles. The color steel ridge tiles and aluminum-formed ridge tiles that are pressed out of roof ridge making machine are lighter, easier to install and less expensive.

Machine parameters

1 Decoiler Manual decoiler or hydraulic decoiler
2 Raw material thickness 0.2-0.8mm
3 Material As your requirements
4 Machine dimensions 7000*800*1500mm
5 Feeding width According to your profile
6 Forming station 13 to 15 steps
7 Shaft diameter 75mm
8 Shaft material High-grade 45# steel, heated and quenched
9 Roller material High-grade 45# steel, coated with 0.05mm chrome
10 Forming speed 10-15m/minute (adjustable)
11 Transmission type Chain transmission
12 Machine frame stand Welded structural steel, thickness is 18mm
13 Main motor 5.5kW from Shanghai, China
14 Cutting type Stop hydraulic cutting
15 Cutting power 3kW
16 Cutter material Cr12 with quenched treatment HRC 58-62
17 Cutting length error ±2mm
18 Voltage 380V/50Hz and 3 or according to your requirements
19 Control system PLC control system
20 Size of PLC 700*1000*300mm
21 PLC Delta/Siemens

Components of Galvanized Ridge Roofing Sheet/Cap Roll Forming Machine

1. Manual Decoiler…………………………………………….1 set

2. Feeding Guide……………………………………………….1 set

3. Main Roll Forming Machine……………………………1 set

4. Hydraulic Cutting Device………………………………..1 set

5. Hydraulic Station…………………………………………..1 set

6. PLC Computer Control…………………………………..1 set

7. Output Table…………………………………………………1 set

Machine details:

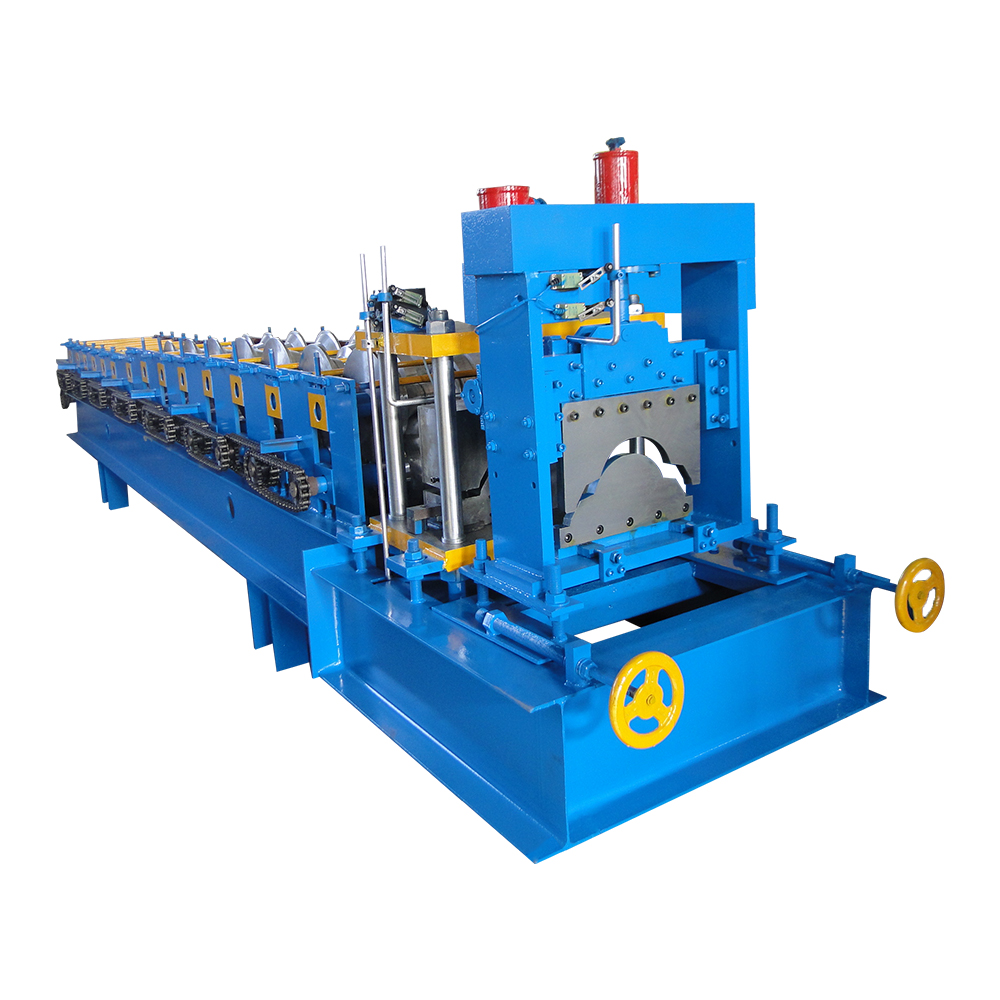

Ridge cap machine2 Ridge cap machine3 Ridge cap machine1

Package and shipment details:

The machines sold by Haixing Industrial Group Co., Ltd. use standard export packaging, as follows:
1*40 GP container,main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box.


Product detail pictures:

2017 Latest Design Wall/Roof Panel Forming Machine -
 Reasonable price for Ac Inverter Speed Regulation Roofing Ridge Cap Tile Forming Machine – Haixing Industrial detail pictures
