2017 New Style Customized Rain Gutter Machine - Metal cut to length machine – Haixing Industrial Detail:

This Metal cut to length machine is designed to automatically slit the steel and aluminum coils of 0.3-1.0 mm thick into smaller strips, then cutting into the desired length according to the parameters setting on the PLC control system. Compared with the complex slitting and cut to length production line, this simple machine is economic and functional equipment for the metal sheet processing industry.

Cut to length machine technical parameters

1

Material type

Pre-painted steel or aluminum coil, galvanized steel coils, GI, PPGI, GL, PPGL

2

Thickness

0.3-1.0mm

3

Width

Max. 1250mm

4

Yield strength

235-345Mpa

5

Slitting width

80mm-1250mm

6

Slitter material

Cr12 mould steel

7

Cutter material

Cr12 mould steel

8

Quantity of slitting blade

6 pairs

9

Working speed

15 times/min

10

Type of cutting

length-set cutting

11

Size of machine

2500mm*1700mm*1400mm

12

Control mode

Mitsubishi PLC

13

Operating mode

Operation buttons + Mitsubishi touching screen

14

Electric condition

380V/3phase/50Hz (or according to customers requirement)

15

Main motor power

4 KW

16

Hydraulic station power

2.2 KW

 Components:

Decoiler: 1set

Guiding device: 1set

Leveling system: 1set

Hydraulic cutting system: 1set

PLC controlling system: 1set

Slitter device: 1set

Outputs table: 2 pieces

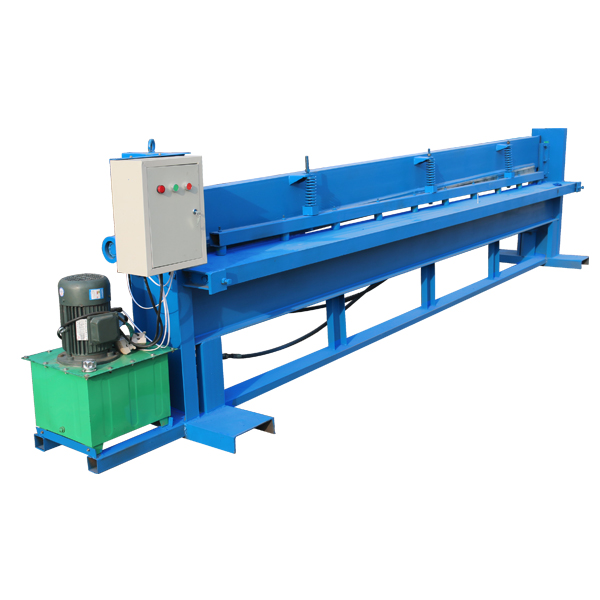

Machine picture display

cut to length machine2 cut to length machine3 cut to length machine1

Packaging Details:

1. Machine is covered by plastic film.

2. PLC control box, spare parts and other small parts are packed by wooden carton box.

Terms:

1. Delivery: within 60 days after receiving the deposit.

2. Package: export standard package for container.

3. Payment: TT(30% by TT in advance, 70% by TT after inspect the machine before delivery).


Product detail pictures:

2017 New Style Customized Rain Gutter Machine -
 Metal cut to length machine – Haixing Industrial detail pictures
