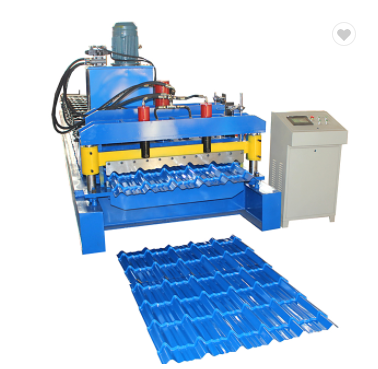

2019 Canton Fair hot sale model Glazed Tile Roll Forming Machine
Product Application of Metal roofing glazed tile roll forming machine
This product has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet. The ridge cap sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.
|Main Parameters||Main Parameters|
|Width of the raw materials||1200mm||Power||5.5Kw+4Kw|
|Rollers||15Rows||Thickness of the coil||0.3-0.8mm|
Metal roofing glazed tile roll forming machine main details
Name: 5T Manual Uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T,Inner diameter: 500-508mm
Name: Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the
products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the
function of locate angle iron.
Name: Main Roll Forming Machine
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Name: Hydraulic System AND Computer Control Cabinet Brand: HX
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
PLC:Siemens (or according to customer’s inquirement)
Name: Shearing Mechanism
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment
Name: Hydraulic Box
Power :4Kw.Lichao brand (Or as customer’s need )
Name: Output Table
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
Metal roofing glazed tile roll forming machine package details
1.Main roll forming machine package by Plastic film ;
2.Main machine spare parts package by paper box ;
3.We have professional technicians for loading
Guaranteed the goods load into container without any damage.
4.Transportation : Machines need one 40 feet container to hold;
5.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 30-45 days after deposit receipt your payment
3. Guarantee period: 18months free service/ pay service all the machine life
4. Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.Without visiting,we will send you user manual and video to teach you to install and operate.If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
