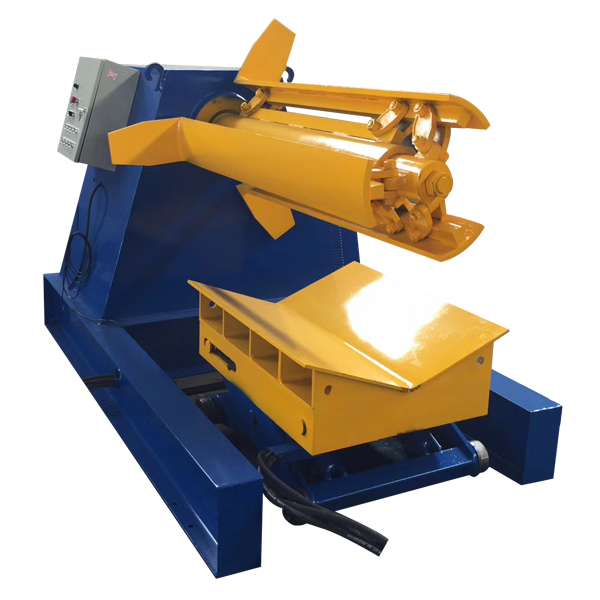

5t/7t/10t Auto Hydraulic Decoiler With Car

Short Description:

Our commission is to serve our buyers and purchasers with most effective good quality and aggressive portable digital goods for OEM Customized Bearing 5 Tons Hydraulic Loading Rack Roll Forming Machine Using Automatic Hydraulic Decoiler With Car, The mission of our firm would be to deliver the very best high-quality products and solutions with most effective value.

Product Detail

Product Tags

Decoiler is an auxiliary device for the roll forming machine. There are several types such as manual decoiler, electric decoiler and hydraulic decoiler.

Hydraulic Decoiler technical parameters

1 Coil inner diameter  450mm-650mm
2 Maximum width of coiling  1250mm
3 Maximum weight of loading  10 tons
4 Hydraulic power  5.5kW
5 Motor power  4kW
6 Working speed  0-15m/minute
7 Oil pump inner diameter  120mm
8 Working press  10MPa
9 Voltage  380V/50Hz, 3 phase
10 Dimensions  3.0*1.8*1.9m


1. Types available: hydraulic decoiler.

2. Adapts hydraulic expand/loosen and hydraulic driving system.

3. Easy to operate.

4. Suitable for pre-painted coil, cold-rolled coil and galvanized coil.

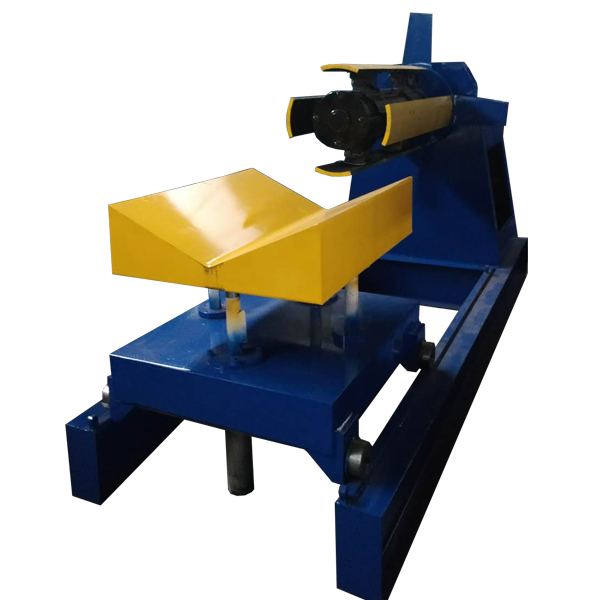

5t/7t/10t Auto Hydraulic Decoiler With Car picture display

decoiler with coil car1

Our company insists on the service aim: quality first, credit first, we believe that quality is the lifeblood of entering rise, we will supply satisfied products and after-sale service for every client.
