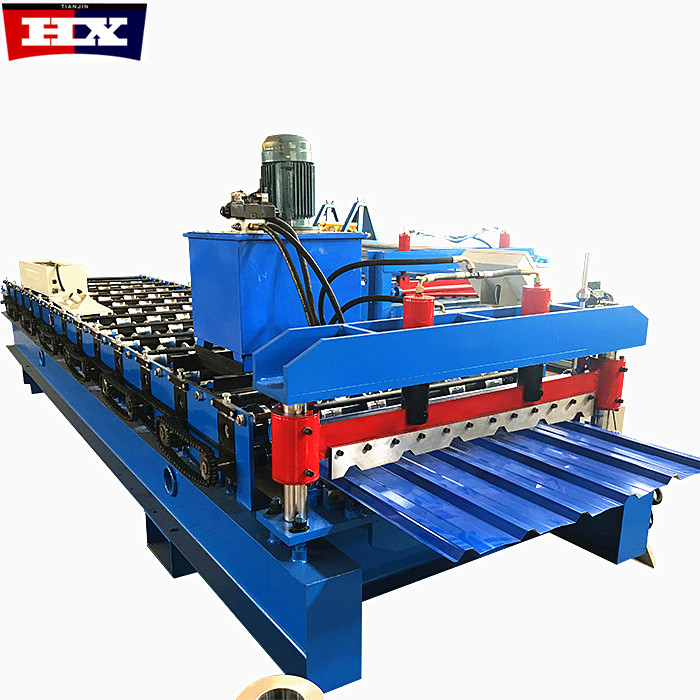

Aluminum metal roof sheet forming machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Product Application of aluminum metal roof sheet forming machine
    This product has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet. The ridge cap sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.

    aluminum metal roof sheet forming machinealuminum metal roof sheet forming machine

    aluminum metal roof sheet forming machine

    Main Parameters Main Parameters
    Width of the raw materials 1250mm Power 3Kw+4Kw
    Rollers 11-13Rows Thickness of the coil 0.3-0.8mm
    Dimensions 6800*1450*1500mm Productivity 10-15m/min
    Detailed Images

    aluminum metal roof sheet forming machine main details

    aluminum metal roof sheet forming machine Machine Parts
    Name: 5T Manual Uncoiler
    Brand: HX
    Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T,Inner diameter: 500-508mm
    Machine Parts
    Name: Feeding Table
    Brand: HX
    Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the

    products are neat, parallel and everything is uniformity.

    Please refer to the equipment regulation to know the

    function of locate angle iron.

    aluminum metal roof sheet forming machine
    aluminum metal roof sheet forming machine Machine Parts
    Name: Main Roll Forming Machine
    Brand: HX
    Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
    Machine Parts
    Name: Hydraulic System AND Computer Control Cabinet   Brand: HX
    Power:4kw,Hydraulic oil: 40#
    hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
    The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
    PLC:Siemens (or according to customer’s inquirement)
    aluminum metal roof sheet forming machine
    aluminum metal roof sheet forming machine Machine Parts
    Name: Shearing Mechanism
    Brand: HX
    It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
    Material of blades: Cr12,quenching treatment
    Machine Parts
    Name: Hydraulic Box

    Power :4Kw.Lichao brand (Or as customer’s need )

    aluminum metal roof sheet forming machine
    aluminum metal roof sheet forming machine Machine Parts
    Name: Output Table
    Brand: HX
    It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
    Packaging & Shipping

    aluminum metal roof sheet forming machine package details

    1.Main roll forming machine package by Plastic film ;

    2.Main machine spare parts package by paper box ;

    3.We have professional technicians for loading
    Guaranteed the goods load into container without any damage.
    4.Transportation : Machines need one 40 feet container to hold;
    5.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for     you.

    aluminum metal roof sheet forming machine

    Our Services

    1. Warranty :One year,and we will provide technical support for whole life of the equipment.
    2. Delivery time: Within 30-45 days after deposit receipt your payment
    3. Guarantee period: 18months free service/ pay service all the machine life
    4. Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.Without visiting,we will send you user manual and video to teach you to install and operate.If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

    aluminum metal roof sheet forming machine
