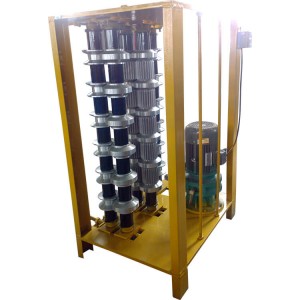

Auto Curved Roll Forming Machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Auto Curved Roll Forming Machine Parameters

    1 Main motor power 5.5kw, 3 phase or as your request
    2 Hydraulic motor power 4kw
    3 Hydraulic Pressure 10-12MPa
    4 Voltage 380V /3phase/ 50 HZ (or as your requirement)
    5 Control System PLC Delta Inverter
    6 Main Frame 300mm/350mm H-Beam or 350mm
    7 Backboard Thickness 16mm
    8 Chain Size 1 Inch
    9 Feeding Material color steel coils
    10 Feeding Thickness 0.3-0.8mm
    11 Feeding Width 100-1200mm
    12 Effective width 840-1050mm
    13 Productivity 0-15/min
    14 Roll Station 13 roll steps(according to different design)
    15 Roller Diameter 70mm(depend on different design)
    16 Roller material 45# steel
    17 Cutter material Cr12
    18 Cr-Plating Size 0.05mm
    19 Overall Size 6800*1400*1150mm
    20 Total Weight 5.8T

    Auto Curved Roll Forming Machine Applications

    The curved panels produced by Auto Curved Roll Forming Machine are used for the door and wall.

    Usually, when raining, the raindrops to the front of your door, and there is some water.

    It is not convenient to come in or out. Now with the curved panel, the rain is guided away from your door. It will be cleaner.

    It works the same for the wall. With the curved panel, the rain will not leak into your room, also keeps away from the wall panel. Thus the wall panel will endure for longer years.

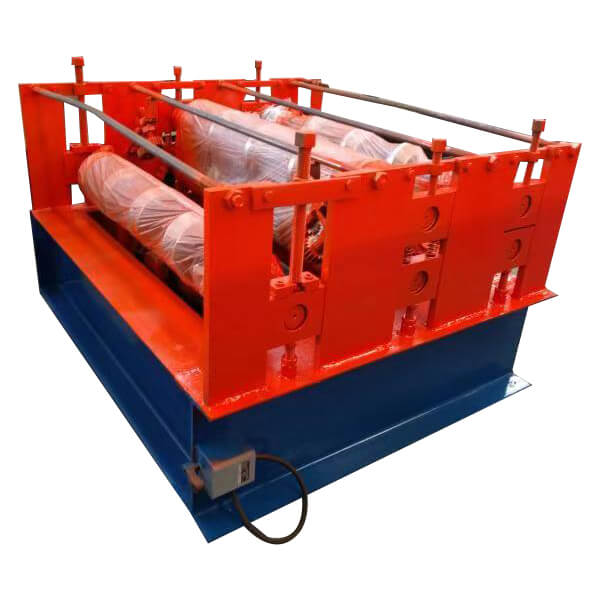

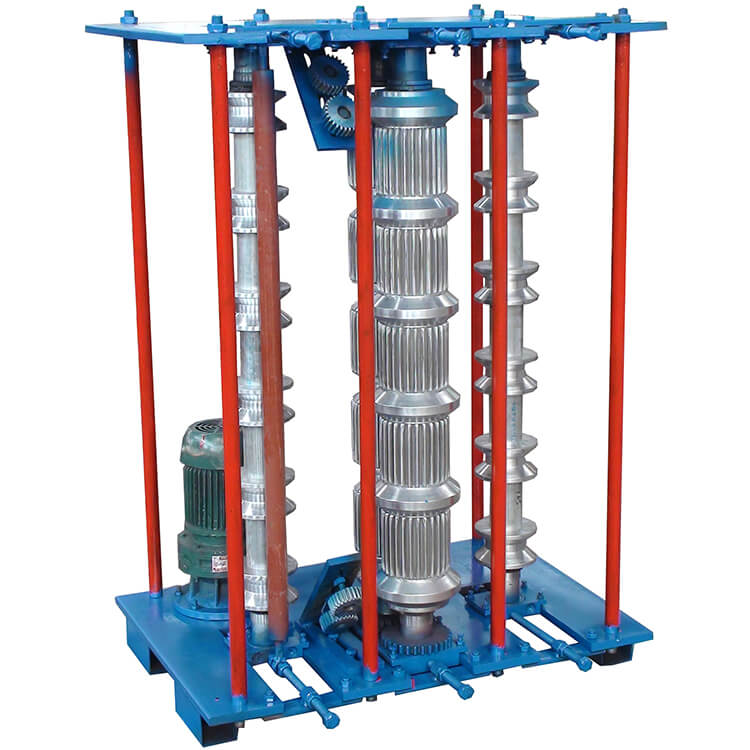

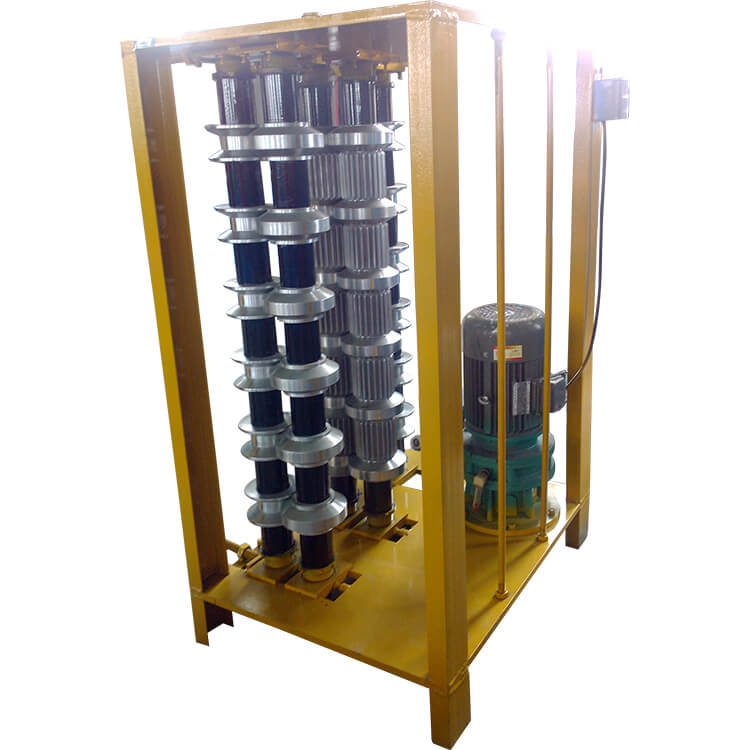

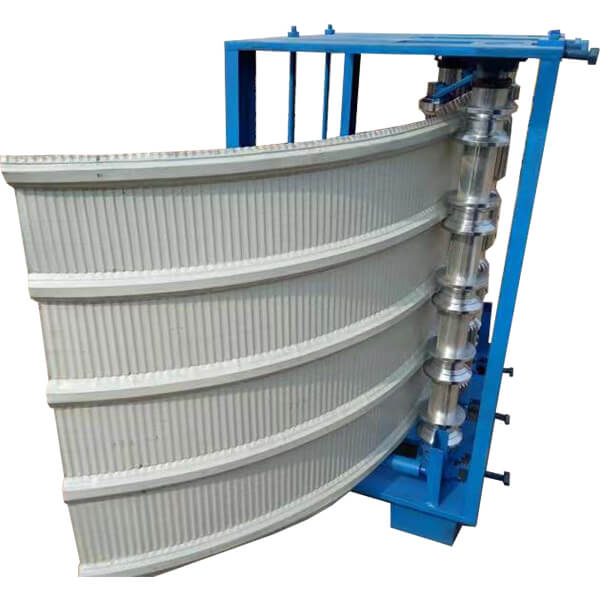

    Auto Curved Roll Forming Machine Photos

    roof curving machines

    Company Profile

    Haixing Industrial Group Co., Ltd. was established in 1996 and is located in Hebei District, Tianjin. It is a professional cold forming machine manufacturer and exporter with over 20 years of experience.
