Automatic Steel Plate Leveling Machine

Short Description:

  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Automatic Steel Plate Leveling Machine parameters

    1 Suitable to process PPGI, galvanized sheet
    2 Thickness of raw material Slitting: Max 0.8mm

    Cutting: Max 3.0mm

    3 Roller station Up: 5 rollers

    Down: 6 rollers

    4 Voltage 380V, 50HZ, 3Phase
    5 Main Frame 350 H beams
    6 Side panel thickness 60mm
    7 Diameter of shaft 110mm
    8 Chain size 1.2 inch
    9 Motor power 7.5Kw
    10 PLC Automatic PLC control system
    11 Transmission Chain transmission
    12 Machine size 2500*2000*2000mm
    13 Machine weight About 2.8 tons


    1. This Hydraulic Leveling and Cutting Machine adopts steel welded structure, hydraulic transmission, easy to operate, reliable performance, nice appearance.

    2. Blade gap is adjusted according to signpost, can adjust light quickly.

    3. It has light for wire device, and can non-polar adjust the route.

    4. It adopts a fence type safety device.

    5. Size of rear block stop and shearing numbers has digital display apparatus.

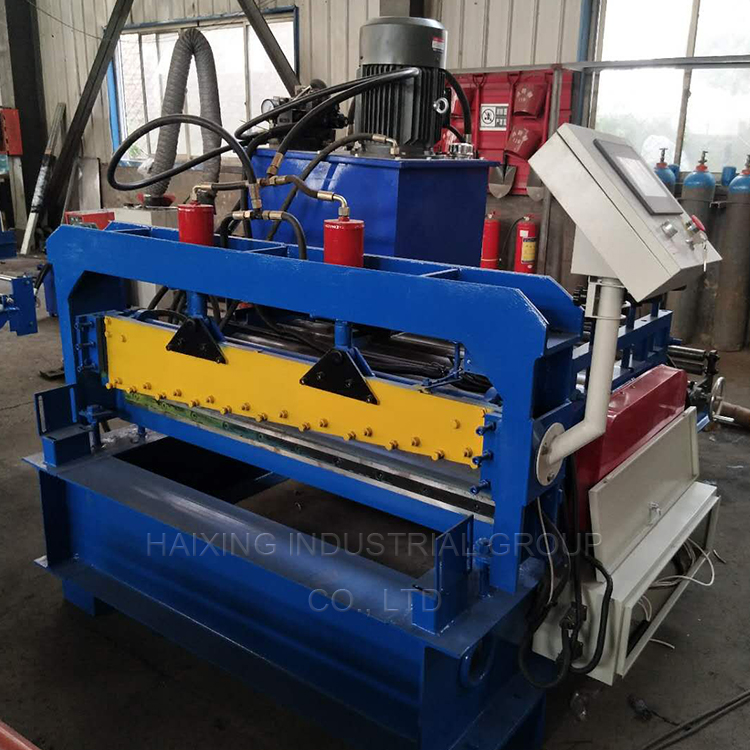

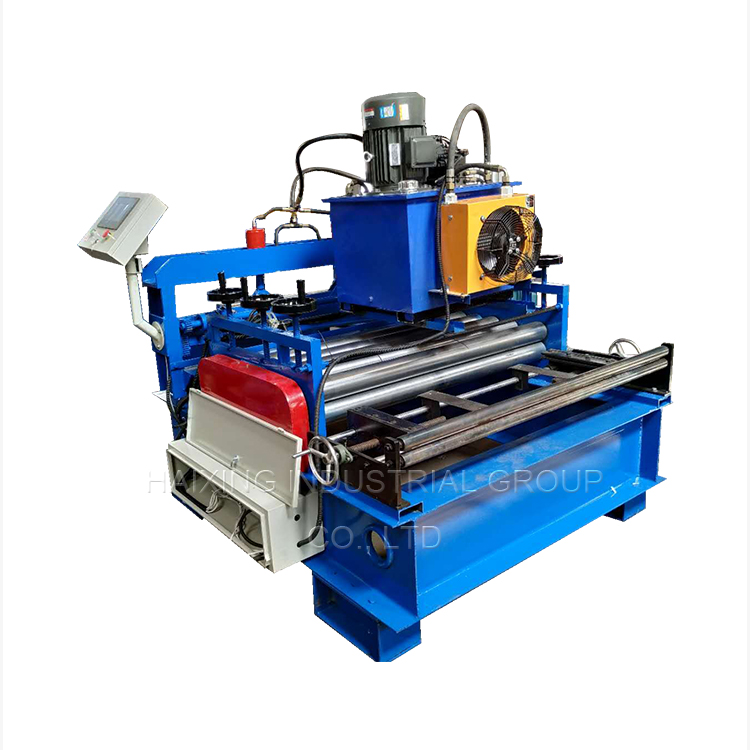

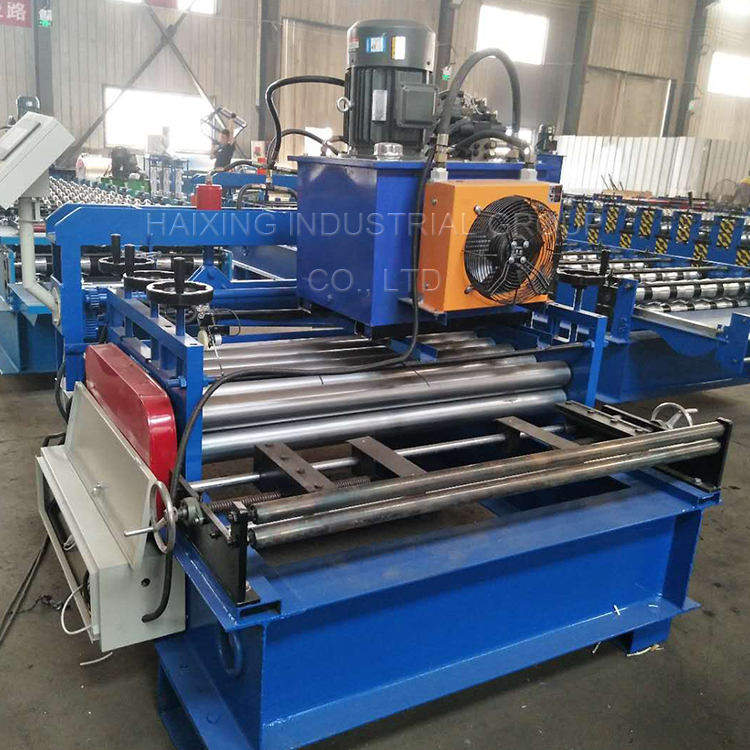

    Automatic Steel Plate Leveling Machine details

    metal leveling machine det2

    Packaging & Shipping

    1). Tighten to container with steel wire rope and welded machine with container by angel iron .

    2). Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic).

    3). PLC contral system and motor pump are packed in wooden box with water proof paper coverage.
