Bolivia 800 glazed single layer roof roll forming machine

Short Description:

1 Main motor power 4kW, 3 phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/ 3 phase/ 50 Hz (or as your requirements)
5 Control system PLC delta inverter


Product Detail

Product Tags

Bolivia 800 glazed single layer roof roll forming machine parameters

1 Main motor power 4kW, 3 phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/ 3 phase/ 50 Hz (or as your requirements)
5 Control system PLC delta inverter
6 Main frame 300/350 mm H-beam
7 Backboard thickness 16 mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8 mm
11 Productivity 0-15/ min
12 Roll station 13 roll steps (according to different design)
13 Roller diameter 70 mm (depends on different design)
14 Roller material 45# steel
15 Cutter material Cr12
16 Cr-plating size 0.05 mm

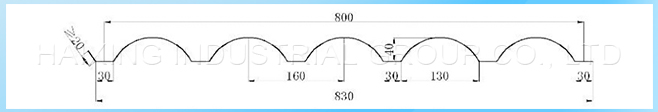

Tile drawing of Bolivia 800 glazed single layer roof roll forming machine

800 glazed tile drawing

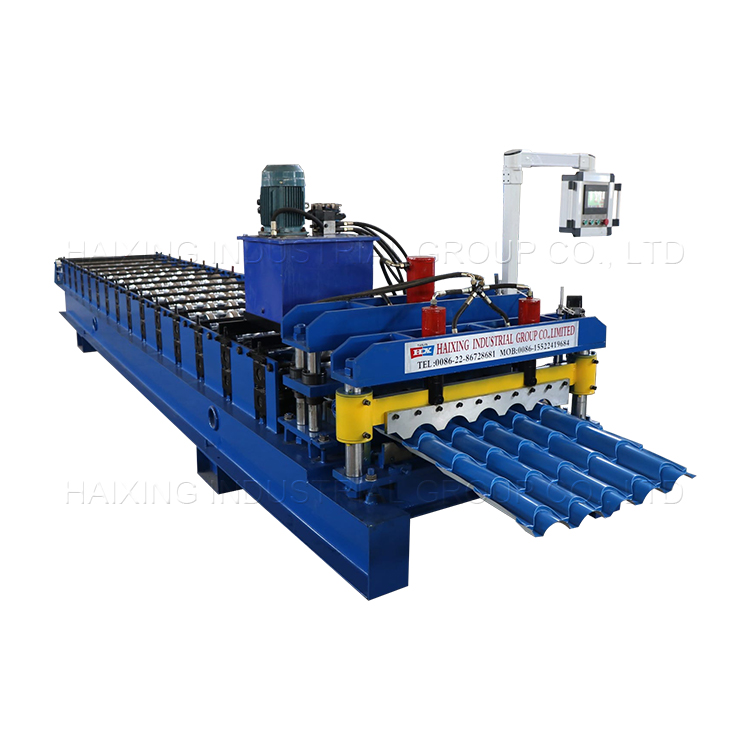

Machine details

800 glazed roof machine details

Advantages of our roll forming machines

1, Our machine can use galvanized steel, color steel plate or aluminum plate as material board.

2, Using computer control, PLC display. Therefore the machine is easy to operate, stable and reliable operation, durable, maintenance-free.

3. We can manufacture and design various roll forming machines according to customer requirements.

Machine packaging and shipping details

Standard export packaging: 1 * 40 GP container.

The main machine is bare and fixed in the container with wire.

The rollers is oiled and packaged in plastic film.

Electronic equipment is packed in wooden cases.
