C Shape Purlin Roll Forming Machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    C Shape Purlin Roll Forming Machine parts: single-end feeding machine, feeding leveling, forming system, straightening mechanism, at single + double holes, after forming shear system, supporting material platform.



    Purlin roll forming machine technical parameters
    1 Suitable to process Steel plate
    2 Rollers 12 rows
    3 Dimensions 11*1.3*1.5m
    4 Power 11.5kw+7.5kw
    5 Thickness of the plate 1-3mm
    6 Productivity 8-10m/min
    7 Middle plate thickness 20mm
    8 Driving ways 2.6-inch China wheels and link chain
    9 Diameter and material of the forming axis 80mm
    10 Weight About 8.5T
    11 Voltage 380V 50HZ3 phase
    12 Roll material GCr15(bearing steel)hard chrome plated after heat treatment
    13 Shaft material 40Cr Modulation of heat treatment after polishing hard chromium plating
    14 On both sides of the wall material A3 steel
    15 Frame International H-beam
    16 Blade material Cr12Mov
    17 Forming wheel Bearing steel quenching

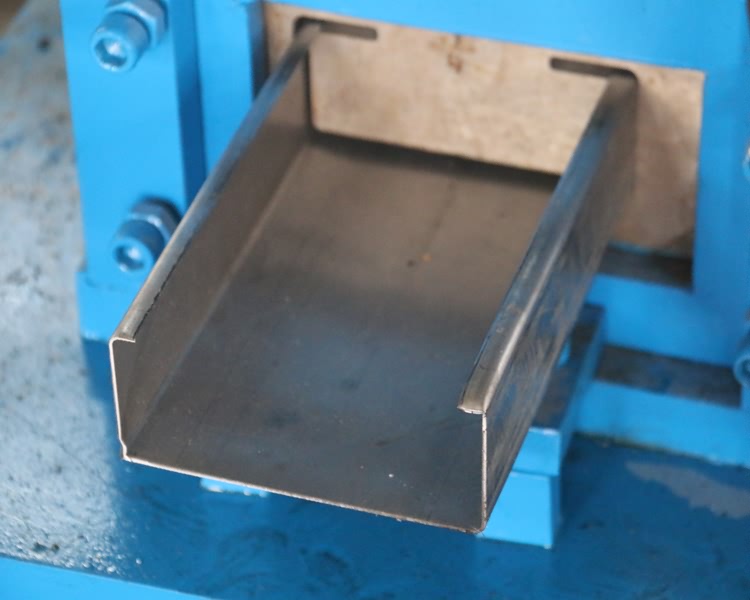

    Machine picture display

    C Shape Purlin Roll Forming Machine11 C Shape Purlin Roll Forming Machine21

    Terms:

    1. Delivery: within 60 days after receiving the deposit.

    2. Package: export standard package for container.

    3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery)

    Company profile:

    We are committed to research and develop this industry for more than 20 years, and our productions are widely used in gardens, factories, resorts, hotels, exhibition halls, vacation lands, ancient architectures and modern villas.
