Light steel keel roll forming machine parameters |
||
| 1 | Main motor power | 4kw/3 phase (or as your request) |
| 2 | Hydraulic motor power | 3kw |
| 3 | Hydraulic pressure | 10~12MPa |
| 4 | Voltage | 380V/3 phase/50HZ (or as your request) |
| 5 | Control System | PLC Delta /Panasonic/Siemens/ |
| 6 | Main Frame | 300/350mm H-Beam |
| 7 | Backboard Thickness | 17/20mm |
| 8 | Chain size | 1/2inch |
| 9 | Feeding material | color steel coils |
| 10 | Feeding thickness | 0.18~0.8mm |
| 11 | Feeding width | Better as your profile or from our design |
| 12 | Effective width | Better as your profile or from our design |
| 13 | Productivity | 0-3min |
| 14 | Roll station | 11~20 roll steps(according to different design) |
| 15 | Roller diameter | 75mm (according to different design) |
| 16 | Roller material | 45#steel |
| 17 | Cutter material | Cr12 |
| 18 | Cr-Plating size | 0.05mm |
| 19 | Overall size | 5000mm*1000mm*1500mm |
| 20 | Total weight | 2~12T |
After Service
a. One year guarantee for whole machine.
b. 24 hours technical support by email or calling
c. If there is any problem found of the machine, we will repair it for free in one year.

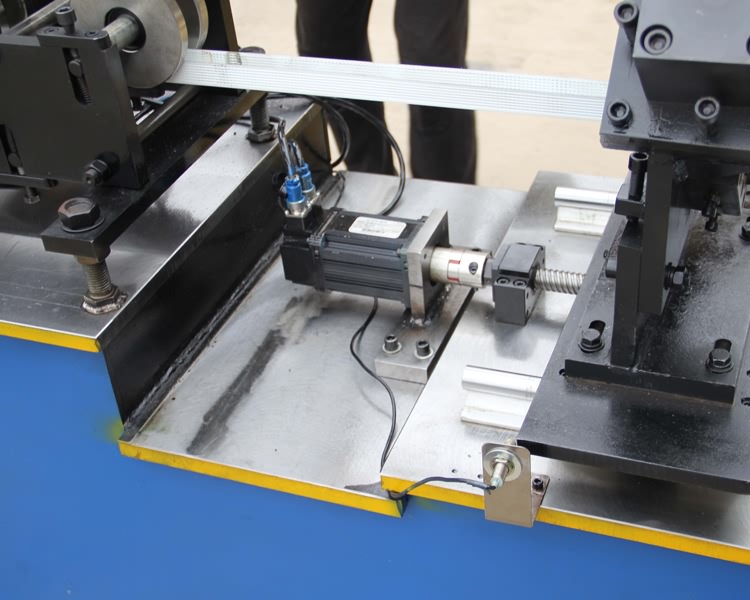

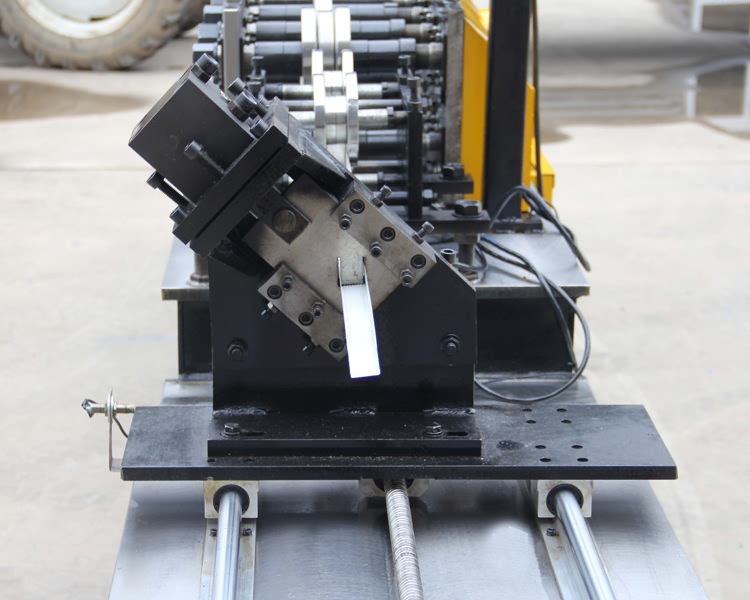

Ceiling U Profiles Roll Forming Machine picture display
Terms:
1. Delivery: within 60 days after receiving the deposit.
2. Package: export standard package for container.
3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
