Coil Metal Sheet Leveling Machine cuts the metal coil into a flat sheet of the desired length by unwinding, leveling, lengthening, and shearing.
This Coil Metal Sheet Leveling Machine adopts steel welded structure, hydraulic transmission, easy to operate, reliable performance, nice appearance.
| Leveling &cutting machine parameters | ||
| 1 | Suitable to process | PPGI, galvanized sheet |
| 2 | Thickness of raw material | Slitting: Max 0.8mm Cutting: Max 2.0mm |
| 3 | Roller station | Up: 5 rollers Down: 6 rollers |
| 4 | Voltage | 380V, 50HZ, 3Phase |
| 5 | Main Frame | 350 H beams |
| 6 | Side panel thickness | 40mm |
| 7 | Diameter of shaft | ¢90mm |
| 8 | Chain size | 1 inch |
| 9 | Motor power | 3 Kw (Siemens) |
| 10 | PLC | Delta/Siemens |
| 11 | Transmission | Gear transmission |
| 12 | Machine size | 2200*2000*2000mm |
| 13 | Machine weight | About 2 tons |

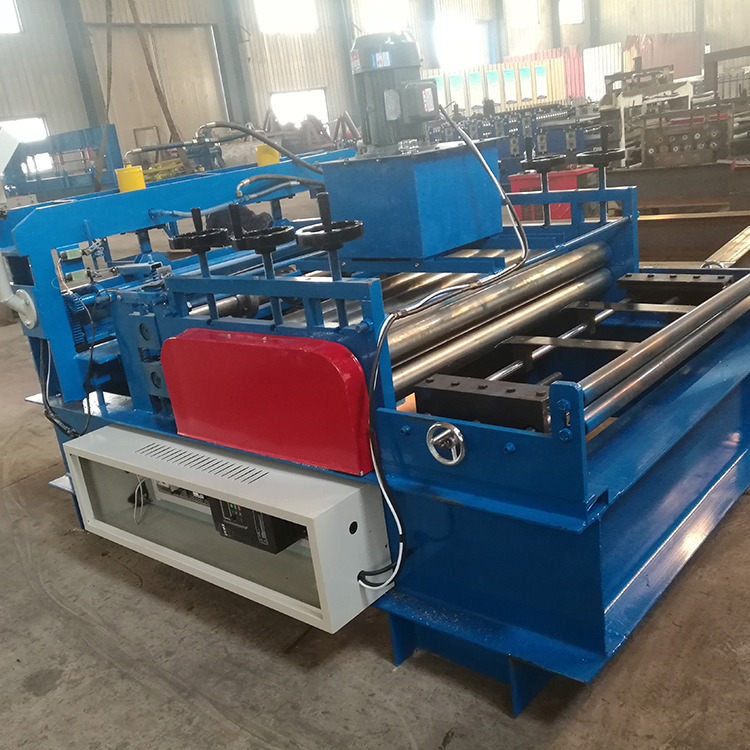

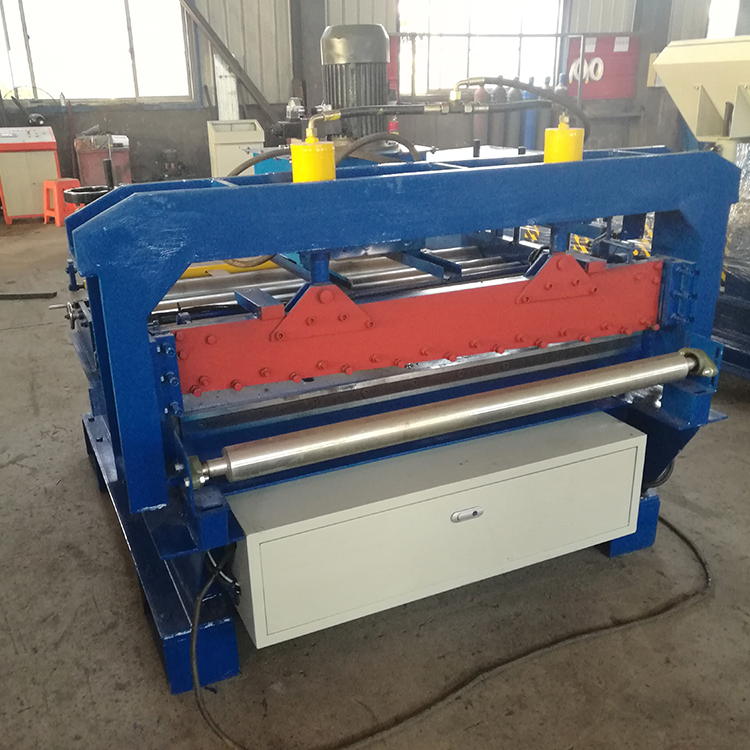

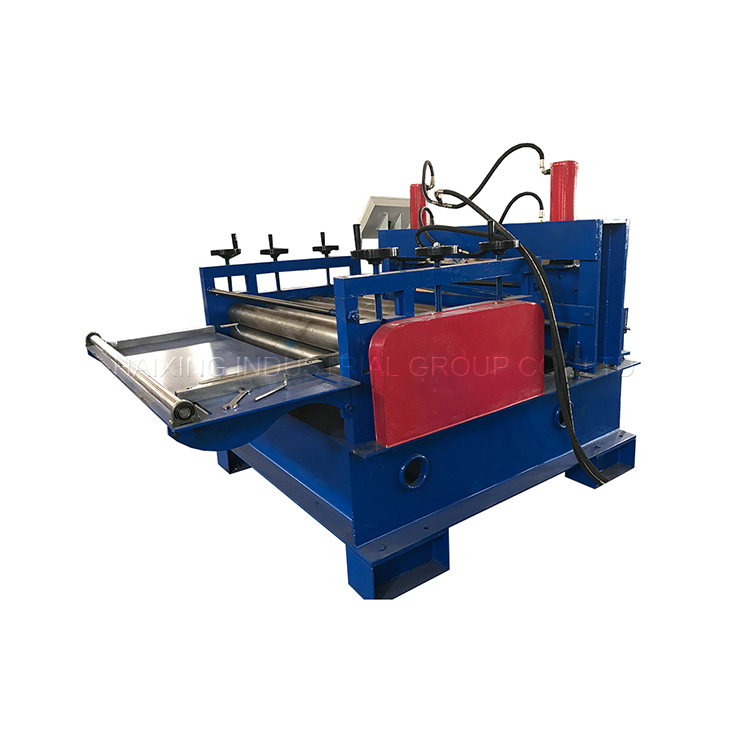

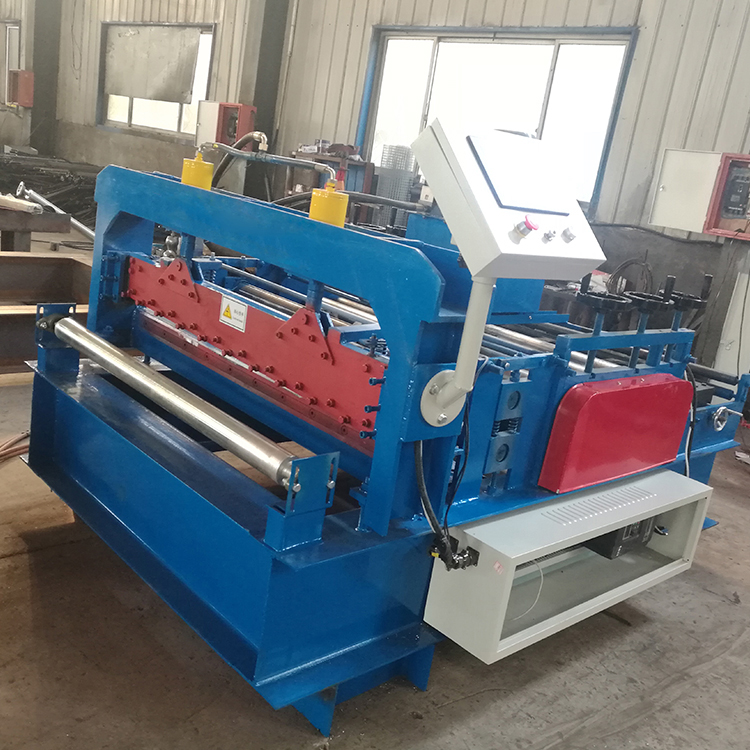

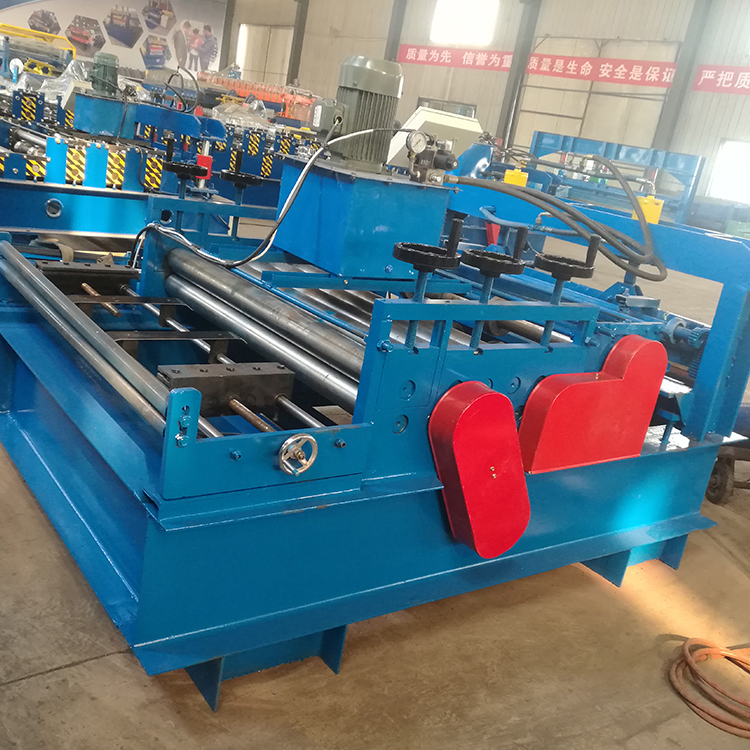

Coil Metal Sheet Leveling Machine details:
