This color steel roof curving machine is easy to operate, simple and compact, and its curved plate has the advantages of beautiful appearance, light weight and high strength.
|
Color Steel Roof Curving Machine parameters |
||
| 1 | Main motor power | 5.5kw, 3 phase or as your request |
| 2 | Hydraulic motor power | 4kw |
| 3 | Hydraulic Pressure | 10-12MPa |
| 4 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) |
| 5 | Control System | PLC Delta Inverter |
| 6 | Main Frame | 300mm/350mm H-Beam or 350mm |
| 7 | Backboard Thickness | 16mm |
| 8 | Chain Size | 1 Inch |
| 9 | Feeding Material | color steel coils |
| 10 | Feeding Thickness | 0.3-0.8mm |
| 11 | Feeding Width | 100-1200mm |
| 12 | Effective width | 840-1050mm |
| 13 | Productivity | 0-15/min |
| 14 | Roll Station | 13 roll steps(according to different design) |
| 15 | Roller Diameter | 70mm(depend on different design) |
| 16 | Roller material | 45# steel |
| 17 | Cutter material | Cr12 |
| 18 | Cr-Plating Size | 0.05mm |
| 19 | Overall Size | 6800*1400*1150mm |
| 20 | Total Weight | 5.8T |

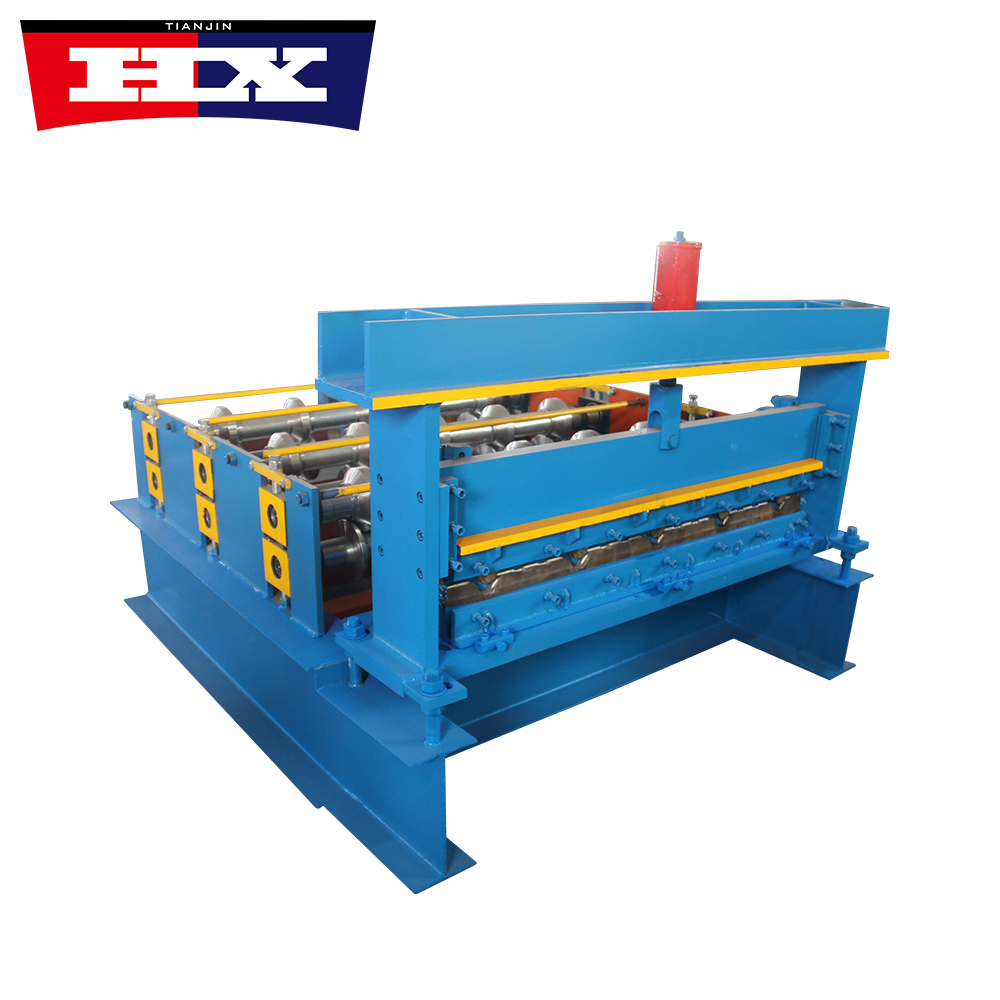

Machine Photos：
Sales Service
1. We provide the technical support for whole life of our machines.
2. If buyers need the technician to go abroad, we will arrange the technician, but the buyers should take all the cost, including visa, round trip ticket etc.
Machine package and shipment details
Standard export packing: 1*40 GP container,main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box.
