Colored Glazed Steel Roof Tile Making Machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    We are professional: Our factory has extensive experience in product and export processes. We have an ultra-low price advantage! Our factory helps you save money from many details:

    1, lower labor costs

    2, convenient transportation

    3, perfect supporting industry

    Roof roll forming machine parameters

    1 Main motor power 4kW, 3-phase or as your requests
    2 Hydraulic motor power 3kW
    3 Hydraulic pressure 10-12MPa
    4 Voltage 380V/3-phase/50Hz (or as your requirements)
    5 Control system PLC delta inverter
    6 Mainframe 300/350mm H-beam or 350mm
    7 Backboard thickness 16mm
    8 Chain size 1 Inch
    9 Feeding material color steel coils
    10 Feeding thickness 0.3-0.8mm
    11 Feeding width 1000mm
    12 Effective width 836mm
    13 Productivity 0-15/min
    14 Roll station 13 roll steps (according to different design)
    15 Roller diameter 70mm (depends on different design)
    16 Roller material 45# steel
    17 Cutter material Cr12
    18 Cr-plating size 0.05mm
    19 Overall size 6800*1400*1150mm
    20 Total weight 4.8 tons

    Components:

    Manual decoiler: 1 set

    Guiding platform: 1 set

    Coil strip leveler: 1 set

    Main machine of roll forming: 1 set

    Electric-motor: 1 set

    Cutting device: 1 set

    Hydraulic station: 1 set

    PLC control: 1 set

    Supporter table: 1 set

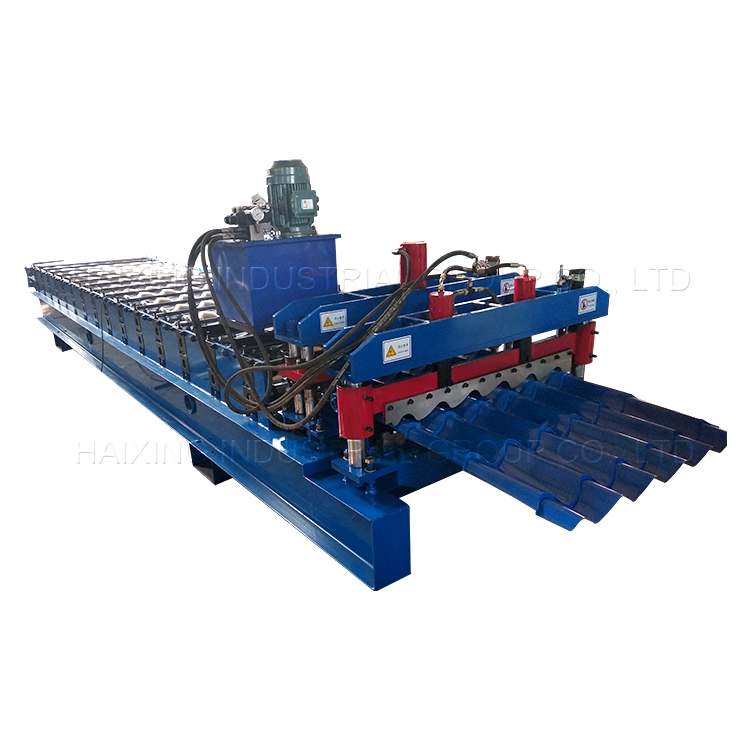

    Machine picture display

    glazed roof machine12glazed roof machine13glazed roof machine14

    Packaging Details:

    1. Machine is covered by plastic film.

    2. PLC control box, spare parts and other small parts are packed by wooden carton box.

    Terms:

    1. Delivery: within 60 days after receiving the deposit.

    2. Package: export standard package for container.

    3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
