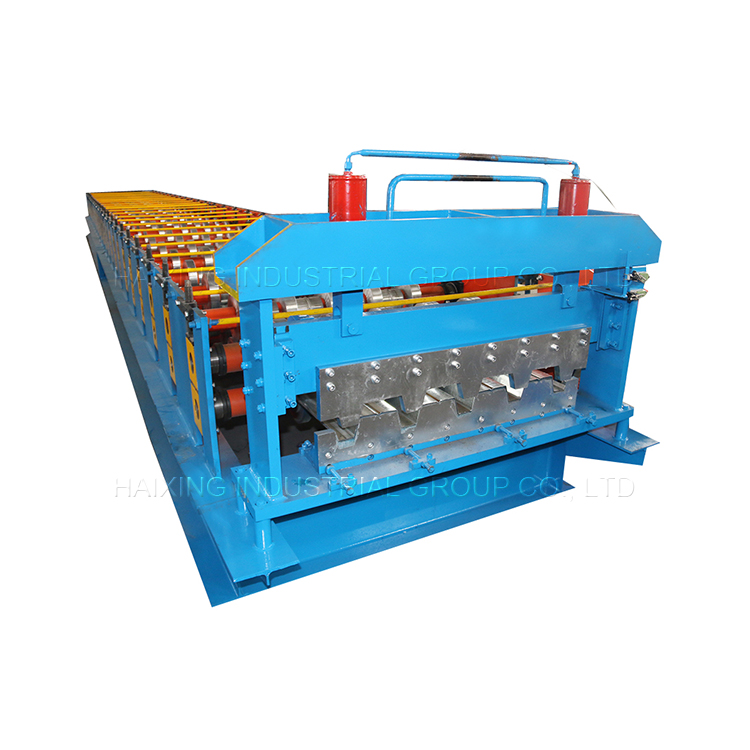

Deck Metal Floor Machine

Short Description:

  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    The advantages of floor deck making machine
    1. Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
    2. Controlling by computer, PLC display, operation is easy, running is steady and reliable, endurable, maintenance-free.
    3. We can make and design will kinds of roll forming machine according to customer’s request.
    Sales Service:
    1.we provide technical support for the whole life of our machines.
    2. If buyers need the technician to go abroad, we will arrange the technician, but the buyers should take all the cost, inculding visa, roundtrip ticket, etc.

    The main technical parameters of Deck Metal Floor Machine

    Main Frame welded with 450H steel
    Middle plate 18mm
    Forming machine guide feeding frame form side roller type
    Forming machine form wall plate chain drive
    Shaft diameter ¢95 mm
    Chain size 1.5 inches (Brand “Zhenghe” Imported Japan sprocket)
    Roll forming machine motor power 2-15KW (Brand Siemens)
    Roll forming speed 8-12m/min
    Rollers number 27Rows
    Rolling material high grade 45# forging steel with chromium plate
    Hard chrome plating on the roll surface 0.03mm
    Hydraulic pump motor 4KW (Lichao, Shanghai )
    Hydraulic station oil pump gear pump
    Cutting method connecting rod three-knife hydraulic cutting
    The material of the cutting blade Cr12
    Cutting blade heat treatment quenched treatment 58℃-62℃
    Rolling raw materials thickness 0.7-1.2mm
    Length Tolerance ± 2mm
    Electric control box configuration inverter (anchuan), PLC (Panasonic), encoder (OMRON), Other electrical components are “Schneider” brand

    Deck Metal Floor Machine workflow

    Deck Metal Floor Machine workflow

    Deck Metal Floor Machine details

    floor deck machine det

    Application of decking floor tiles

    Floor decking board products are widely used in power plants, power equipment companies, automobile exhibition halls, steel structure workshops, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, steel structures such as Olympic venues and stadiums.

    Deck Metal Floor Machine Packaging & Shipping

    1. Main roll forming machine package by Plastic film ;
    2. Main machine spare parts package by paper box ;
    3. We have professional technicians for loading
    Guaranteed the goods load into container without any damage.
    4.Transportation: Machines need one 40 feet container to hold;
    5. Please provide us the nearest port name, we will ask shipping cost and arrange to ship for you.

    floor deck machine packing

    Our Services

    a. 18 months warranty period, we will offer technical support for the whole life.

    b. Engineer available to install machine and train your workers overseas.

    c. 24hours open for you, any need and questions, we will reply to you as soon as possible.
