Decoiler And Uncoiler Machine

Short Description:

  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Decoiler And Uncoiler Machine technical parameters

     1  Voltage  380V/50Hz, 3 phase.
     2  Dimensions  2500 mm*1600 mm*1750 mm.
     3  Weight  About 2.4 tons.
     4  Hydraulic pump station  5 solenoid valve pump station.
     5  Hydraulic power  3KW, 380V.
     6  Host rated power  4kw (International Trade brand), cycloid reducer.
     7  Frame  Base with 300H GB I-beam, the box is welded with 16mm thick steel plate.
     8  Supporting spindle  Made of thick-walled seamless steel tube, shaft diameter 194*45 mm.
     9  Feeding width  0-1500 mm.
     10  Steel coil inner diameter  470-530 mm, ± 20 mm.
     11  Rated load capacity  Within 5 tons.
     12  Hydraulic cylinder  Up to the cylinder diameter 125 mm, 1 (plus rotation).
     13  Electrical control system  The use of Taiwan Delta inverter (5.5kw), and domestic Zhengtai electrical control parts, inverter.
     14  Other  The host plus hydraulic or pneumatic pressure arm.

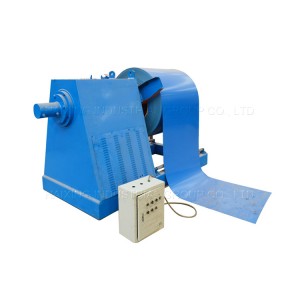

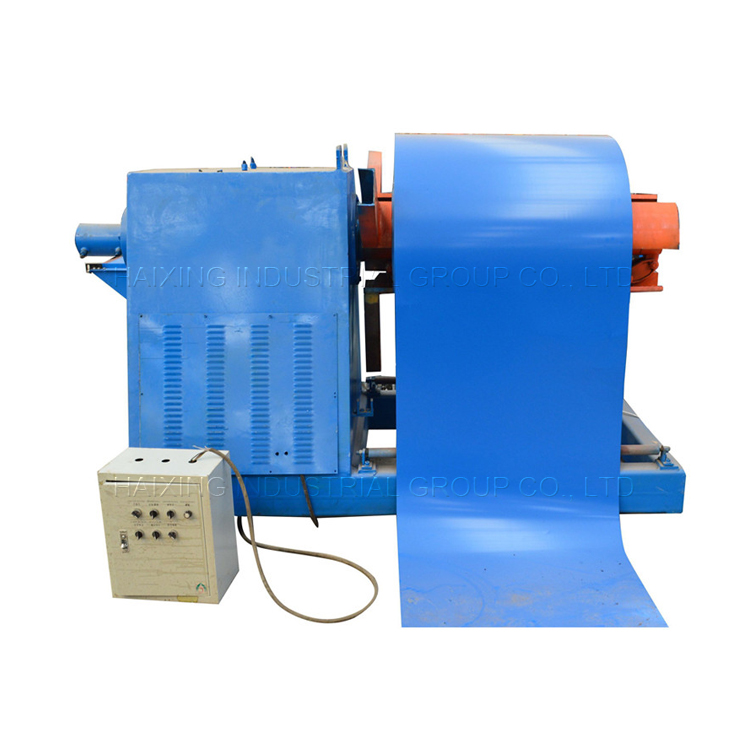

    Decoiler And Uncoiler Machine pictures

    decoiler and coil decoiler and coil1

    Decoiler And Uncoiler Machine Application

    The Decoiler is suitable for machinery, vehicles, metal products, household appliances, steel, decoration, and other industries.

    Decoiler And Uncoiler Machine Advantage

    1, The load-bearing main shaft adopts high-strength and fatigue-resistant rear wall seamless steel, which is formed by turning and has strong strength and great bearing capacity.

    2, The volume is hydraulically controlled, convenient, fast and stable.

    3, Electrical control, high precision, good automation, inverter control, speed can be adjusted.
