Discount Price Cutting Punching Bending Machine - Double Layer Corrugated Roof Sheet Making Machine – Haixing Industrial Detail:

Parameters of double layer corrugated roof sheet making machine

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter
6 Mainframe 300/350mm H-beam or 350mm
7 Backboard thickness 16mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8mm
11 Feeding width 1000mm
12 Effective width 840mm, 850mm
13 Productivity 0-15/min
14 Roll station 13 roll steps (according to different design)
15 Roller diameter 70mm (depends on different design)
16 Roller material 45# steel
17 Cutter material Cr12
18 Cr-plating size 0.05mm
19 Overall size 6800*1400*1150mm
20 Total weight 4.8 tons

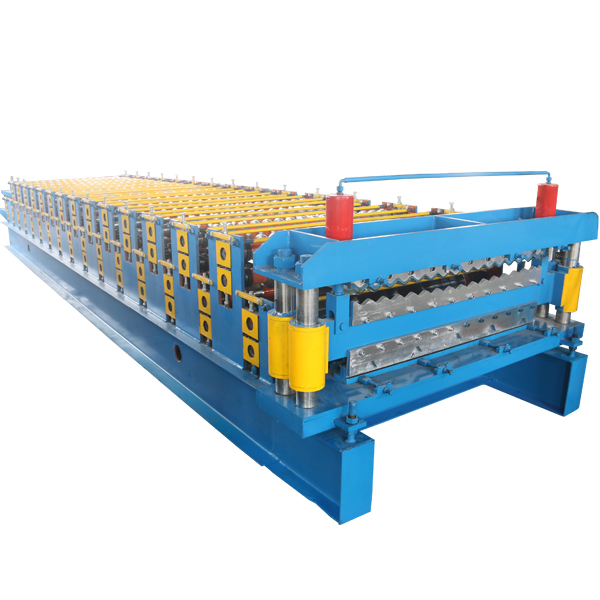

Machine photos

double layer roof machine1 double layer roof machine2

Components of double layer corrugated roof sheet making machine

No. Name Unit Quantity
1 Manual decoiler Set 1
2 Main forming machine Set 1
3 PLC control system Set 1
4 Hydraulic pump station Set 1
5 Post cut Set 1
6 Electric motor Set 1
7 Output table Set 1

Terms:

1. Delivery: within 60 days after receiving the deposit.

2. Package: export standard package for container.

3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).

Our company owned professional design team, we can design different profile according customer’s demands.


Product detail pictures:

Discount Price Cutting Punching Bending Machine -
 Double Layer Corrugated Roof Sheet Making Machine – Haixing Industrial detail pictures
