EPS Sandwich Wall Panel Forming Machine

Short Description:

EPS sandwich wall panel forming machine includes a decoiler, main body and rear cutting equipment. The lamination system includes feed, glue, heat, lamination and post cutting.


Product Detail

Product Tags

EPS sandwich wall panel forming machine includes a decoiler, main body and rear cutting equipment. The lamination system includes feed, glue, heat, lamination and post cutting.

EPS Sandwich Wall Panel Forming Machine parameters

1

Equipment overall dimensions

30m*2.6m*3m

2

Total weight

About 16 ton

3

Control system

Omron encoder PLC

4

Main motor power

Planetary cycloid reducer, 4kw, 380V, 50HZ

5

Processing speed

4~4.5 m/min, continuous stepless adjusted, variable frequency speed regulation, digital display

6

raw material

1.2 meters

7

Voltage

380V

8

Roller material

chrome plated on 45# steel forgings

9

Number of rubber shafts

27 foams, 39 rock wool

10

Total power

30 kw

11

Synchronous controller

Digital synchronous controller

12

Corrugated press motor power

Double-stage cycloid reducer 4kw, 380V, 50HZ

13

Application

roof panel, wall panel

EPS Sandwich Wall Panel Forming Machine working flow:

1) Decoiling: feeding of the material for bottom metal strip.

2) Roll forming: producing the bottom metal strip for roof or wall panel.

3) EPS feeding table: placing the middle part of the sandwich panel.

4) Dripping glue onto the top and bottom metal strip.

5) Heading the strips for better adhesion of glue.

6) Rolling edges of the strips.

7) Connecting parts and roll forming together.

8) Make slot (milling cutting to cut the extra parts of EPS) of panels for specific length.

9) Confirming length.

10) Cutting adjusted by PLC.

11) Stacker table.

Machine picture display

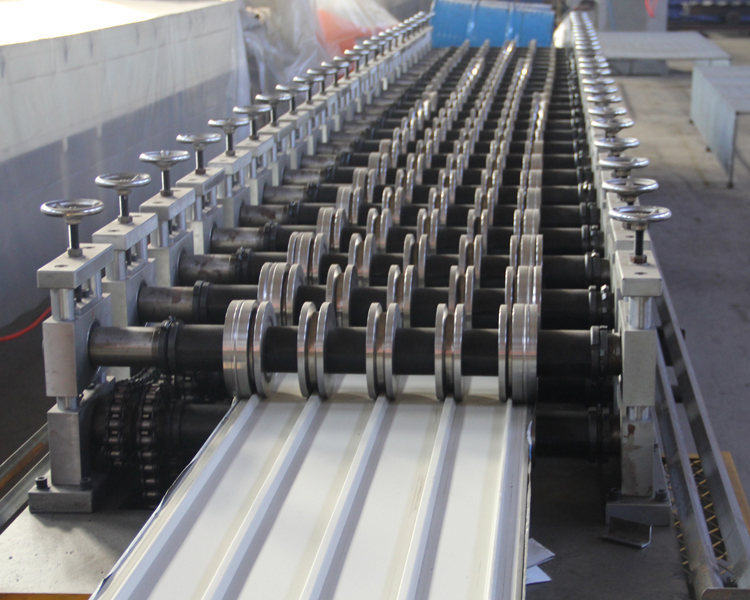

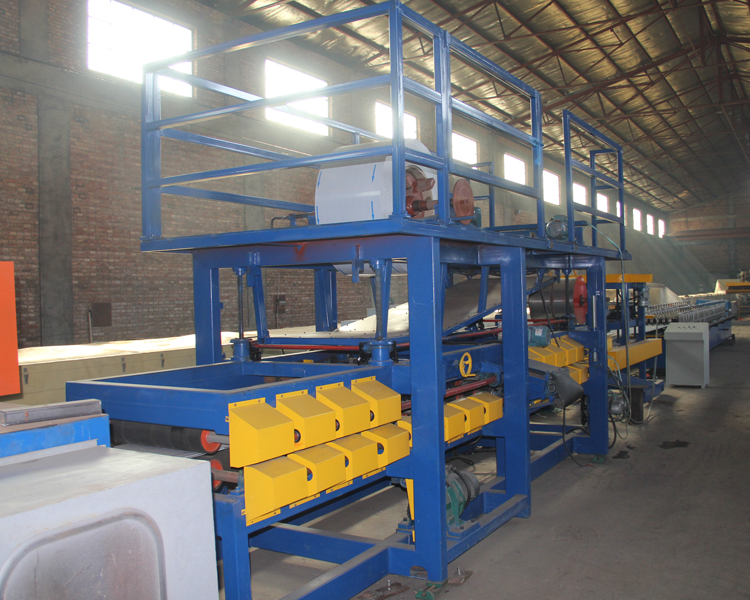

Eps Sandwich Wall Panel Forming Machine1 Eps Sandwich Wall Panel Forming Machine2

Packaging and Shipping

1) Tighten the container with a wire rope and weld the container to the container with natural iron.

2) Main forming machine and un-coiler is naked (we can also use waterproof plastic packaging if needed).

3) PLC control system and motor pump are packed in wooden box with water proof paper coverage.
