Factory directly 2018 Metal Roofing Glazed Tile Roll Forming Machine

Short Description:

Parameters of corrugated automatic roof tile machine: 1)Main motor power: 4kW, 3-phase or as your requests. 2)Hydraulic motor power: 3kW. 3)Hydraulic pressure: 10-12MPa. 4)Voltage: 380V/3-phase/50Hz (or as your requirements).


Product Detail

Product Tags

It can be our accountability to satisfy your preferences and competently provide you. Your satisfaction is our greatest reward. We are searching ahead towards your visit for joint growth for Factory directly 2018 Metal Roofing Glazed Tile Roll Forming Machine, We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
It can be our accountability to satisfy your preferences and competently provide you. Your satisfaction is our greatest reward. We are searching ahead towards your visit for joint growth for 2018 Metal Roofing Glazed Tile Roll Forming Machine, Glazed Tile Roll Forming Machine, Roll Forming Machine, We have more than 100 works in the plant, and we also have a 15 guys work team to service our customers for before and after sales. Good quality is the key factor for the company to stand out from other competitors. Seeing is Believing, want more information? Just trial on its products and solutions!
Parameters of corrugated automatic roof tile machine

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter
6 Mainframe 300/350mm H-beam or 350mm
7 Backboard thickness 16mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8mm
11 Feeding width 1000mm
12 Effective width 850mm
13 Productivity 0-15/min
14 Roll station 13 roll steps (according to different design)
15 Roller diameter 70mm (depends on different design)
16 Roller material 45# steel
17 Cutter material Cr12
18 Cr-plating size 0.05mm
19 Overall size 6800*1400*1150mm
20 Total weight 4.8 tons

The above are some of the parameters, more detailed parameters can be obtained by contacting us, some of which can be customized according to customer needs.

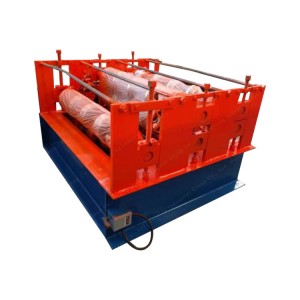

Detail of machine:

adf sfg

Packaging Details

1. Machine is covered by plastic film.

2. PLC control box, spare parts and other small parts are packed by wooden carton box.
