Factory Price For C/Z Purlin Roll Form Machine - Chinese wholesale Widely Used Color Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine/making Machine – Haixing Industrial Detail:

go on to boost, to be certain item quality in line with market and buyer standard demands. Our firm has a excellent assurance procedure happen to be established for Chinese wholesale Widely Used Color Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine/making Machine, Our experienced complex workforce might be wholeheartedly at your support. We sincerely welcome you to definitely stop by our web site and company and mail us your inquiry.
go on to boost, to be certain item quality in line with market and buyer standard demands. Our firm has a excellent assurance procedure happen to be established for Metal Roof Tile Making Machine, Ridge Cap Roof Tile Machine, Roof Tile Sheet Rolling Forming Machine, The products and solutions has a good reputation with competitive price, unique creation, leading the industry trends. The company insists on the principle of win-win idea, has establishedglobal sales network and after-sales service network.
Roofing ridge cap cold roll forming machine is mainly used to produce the roof panel. The traditional ridges are made of glazed tiles, but have now been replaced by new ridge tiles. The color steel ridge tiles and aluminum-formed ridge tiles that are pressed out of roof ridge making machine are lighter, easier to install and less expensive.

Machine parameters

1 Decoiler Manual decoiler or hydraulic decoiler
2 Raw material thickness 0.2-0.8mm
3 Material As your requirements
4 Machine dimensions 7000*800*1500mm
5 Feeding width According to your profile
6 Forming station 13 to 15 steps
7 Shaft diameter 75mm
8 Shaft material High-grade 45# steel, heated and quenched
9 Roller material High-grade 45# steel, coated with 0.05mm chrome
10 Forming speed 10-15m/minute (adjustable)
11 Transmission type Chain transmission
12 Machine frame stand Welded structural steel, thickness is 18mm
13 Main motor 5.5kW from Shanghai, China
14 Cutting type Stop hydraulic cutting
15 Cutting power 3kW
16 Cutter material Cr12 with quenched treatment HRC 58-62
17 Cutting length error ±2mm
18 Voltage 380V/50Hz and 3 or according to your requirements
19 Control system PLC control system
20 Size of PLC 700*1000*300mm
21 PLC Delta/Siemens

Components of Galvanized Ridge Roofing Sheet/Cap Roll Forming Machine

1. Manual Decoiler…………………………………………….1 set

2. Feeding Guide……………………………………………….1 set

3. Main Roll Forming Machine……………………………1 set

4. Hydraulic Cutting Device………………………………..1 set

5. Hydraulic Station…………………………………………..1 set

6. PLC Computer Control…………………………………..1 set

7. Output Table…………………………………………………1 set

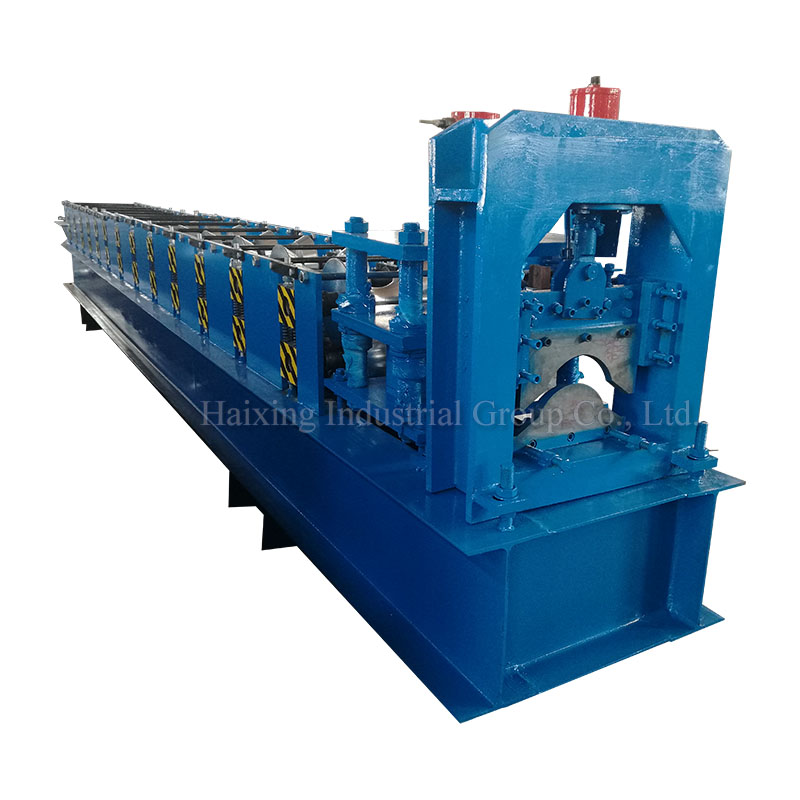

Machine details:

Ridge cap machine2 Ridge cap machine3 Ridge cap machine1

Package and shipment details:

The machines sold by Haixing Industrial Group Co., Ltd. use standard export packaging, as follows:
1*40 GP container,main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box.

We have a variety of machinery and production methods to meet the growing needs of our customers. Our different types of roll forming are easy to operate and highly efficient for Canada, Korea, Pussia, Netherlands, Suriname, Sri Lanka, Malaysia, Vietnam, Nigeria, Tanzania, India, Mongolia, Armenia, Kazakhstan, Vladivostok, Bolivia, Azerbaijan, etc.


Product detail pictures:

Factory Price For C/Z Purlin Roll Form Machine -
 Chinese wholesale Widely Used Color Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine/making Machine – Haixing Industrial detail pictures
