Flat Steel Straightening Machine

Short Description:

  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Our advantages

    We are professional! Our factory has extensive experience in product and export processes.

    We have an ultra-low price advantage! Our factory helps you save money from many details:

    1, lower labor costs

    2, convenient transportation

    3, perfect supporting industry

    Our machine is the best machine! PLC uses well-known brands to ensure high precision and easy operation.

    Our machines are fully automatic: you only need to enter the length of the steel plate and the required number of pieces, the machine will run automatically.

    Components of flat steel straightening machine

    The equipment consists of 8T simple mechanical decoiler, feeding guide unit, leveling system, cutting system, receiving device, hydraulic system and electrical control systems.

    Flat steel straightening machine Technical

    Raw Material                             Cold roll/hot roll/aluzinc/galvanized  Thickness:0-4mm.

    Forming Speed                          About 3-6m/min.

    Roller Stations                           Up 6 down 7, Plus 3 rubber roller before leveling after feeding unit.

    Middle Plate                              3 rubber roller:20mm; leveling roller:60mm

    Power Requirement                   Main motor power:18.5kw ;Hydraulic motor power:5.5KW.

    Simple Mechanical Decoiler      Max Capacity:8000kgs.

    Control System                          Delta or Panasonic PLC and converter

    Cutting System                          Cut to Length after Forming

    Voltage                                      380V/3Phase/ 50HZ or Customized

    Dimension                                 4500*2500*1400

    Weight                                       6000kgs

    Width                                         1500mm

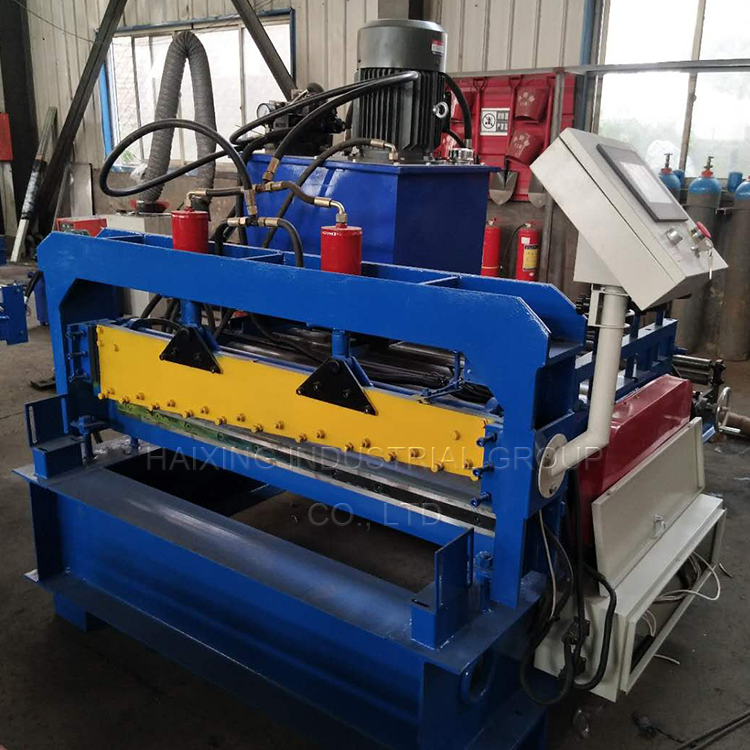

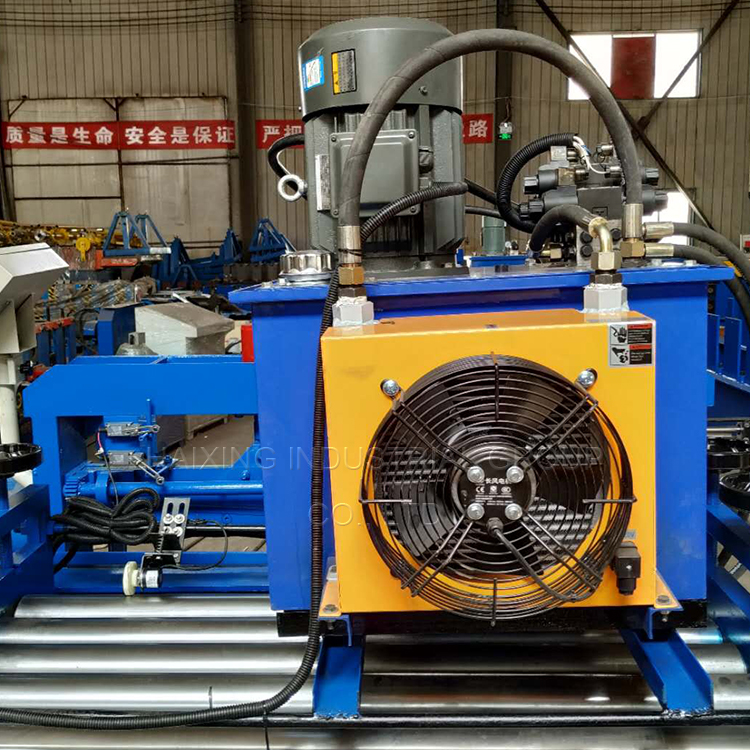

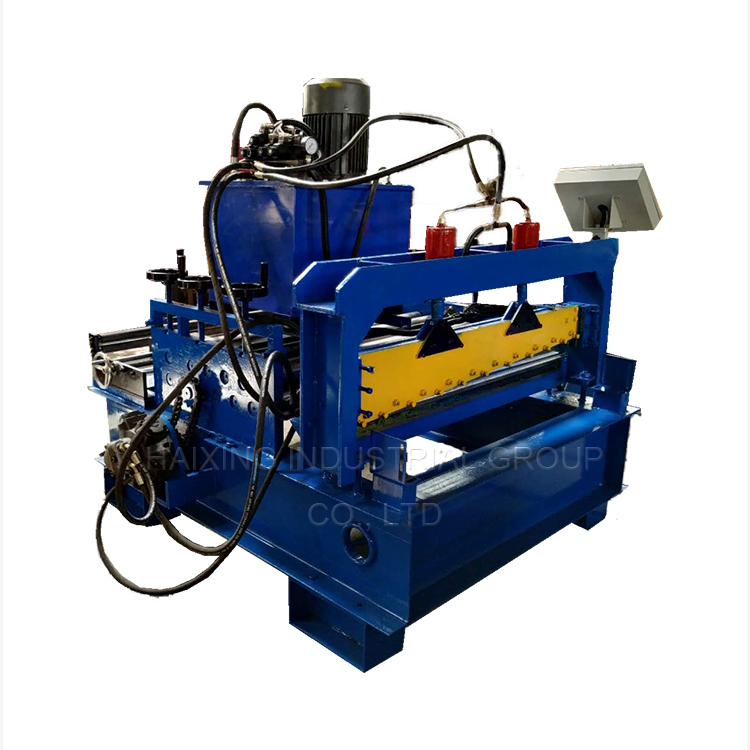

    Flat steel straightening machine photos

    sheet metal leveling machine sheet metal leveling machine5
