Galvanized panel roll forming machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    The galvanized panel roll forming machine adopts PLC control panel, and its language can be used in English, Spanish, Russian, etc.. Our galvanized panel roll forming machine use sensors imported from Mitsubishi, Japan. Other parts are from well-known suppliers in China. This makes our machines have a high quality and long service life.

    Galvanized panel roll forming machine parameters

    1 Main motor power 4kW/5.5KW/7.5KW or as actual demands
    2 Hydraulic motor power 3kW/4KW.5.5KW or as actual demands
    3 Hydraulic pressure 10-12MPa according oil pump and pump motor
    4 Voltage 380V/ 3 phase/ 50 Hz (or as your requirements)
    5 Control system Automatic PLC control system
    6 Main frame 350H beams/400H beams according machine demands
    7 Wall sheet thickness 16mm/18mm/20mm/22mm according machine demands
    8 Chain size  1 inch/1.2inch according machine demands
    9 Feeding material Galvanized steel coil/color steel coil/aluminum steel coil
    10 Feeding thickness 0.3-0.8 mm
    11 Productivity 0 – 25m/min (according machine specification)
    12 Roll station Common 11rolls ro 25rolls (according to different design)
    13 Roller diameter 70mm/75mm/80mm (depends on different design)
    14 Roller material 45# steel
    15 Cutter material Cr12MOV
    16 Cr-plating size 0.05 mm

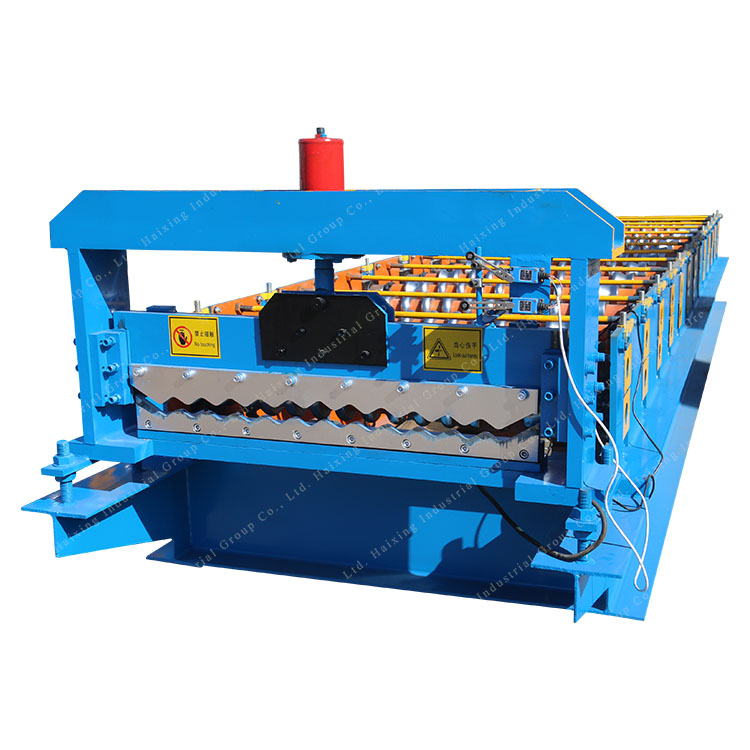

    Machine pictures

    corrugated roof machine2(2) corrugated roof machine2(3)

    Our Advantages

    1. Our machine motor are GERMAN BRAND SIEMENS
    2. Our roller spacer are 4 mm thick seamless steel pipe
    3. Our output table can be adjust height according customer demands
    4. Our PLC control console can be look around 360 degree
    5. All easy-broken pars can be change within 14 month in free
