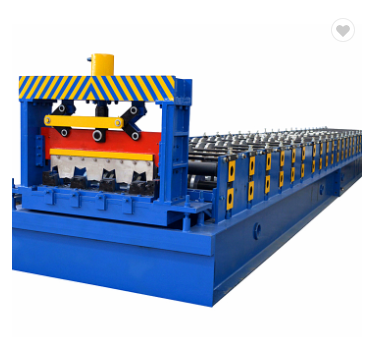

Galvanized Steel Sheet Floor Decking Panels Roll Forming Machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Material Width 1000mm
    Effective Width 690mm
    Thickness of Raw Materials 0.80—1.5mm
    Application Wall Sheet and Roof Sheet
    Machine Dimension 12500mmX1600mmX1650mm
    Total Weight 10.2 Tons
    Main Power 15KW*2
    Decoiler Manual or Hydraulic Decoiler
    Inner Diameter 508–610mm
    Forming Speed 10-15m/min
    Forming Station 24 Rows
    Diameter of the roller 90mm
    Roller materials  45# forging steel
    Hydraulic pressure 18-20Mpa
    Chain size 2 Inch
    Material of Shaft High Grade 45# Steel with 1st Rough Finished and

    then 2th Refined Finished

    Material of Roller High Quality 45# forging steel with chromium plate 0.05mm ,the spacers with 15mm seamless pipe precision doing
    Processing Technology Rough Processing —Refined Processing–Hard Chromium Plating
    Control system PLC(Delta)-you can choose Mitsubishi, panasonic, Siemens
    Voltage 380V, 3-Phases, 50Hz



    2.Components of line
    Decoiler——————————————————————————– 1set ;
    Main machine for roll forming——————————————————– —1set ;
    Control system————————————————————————–1set ;
    Hydraulic system————————————————————————1set ;
    Automatic cutting————————————————————————1set ;
    Output table—————————————————————————–1set ;
    3.Work flow

    Hydraulic Decoiler with Coil Loading Car → Guided Feeding →Roll Forming→

    Hydraulic Tracking Cutting → 12 m Automatic Stacker

    Galvanized Steel Sheet Floor Decking Panels Roll Forming Machine

    Products Showing

    1.Galvanized Steel Sheet Floor Decking Panels Roll Forming Machine profile drawing

    Galvanized Steel Sheet Floor Decking Panels Roll Forming Machine

    2.Galvanized Steel Sheet Floor Decking Panels Roll Forming Machine showing

    Galvanized Steel Sheet Floor Decking Panels Roll Forming Machine

    Galvanized Steel Sheet Floor Decking Panels Roll Forming MachineGalvanized Steel Sheet Floor Decking Panels Roll Forming Machine

    Galvanized Steel Sheet Floor Decking Panels Roll Forming Machine

    Galvanized Steel Sheet Floor Decking Panels Roll Forming Machine

    Galvanized Steel Sheet Floor Decking Panels Roll Forming Machine

    Packaging & Shipping

     1. 40 feet container 2.PVC film package 3. according to customer requirement

    Galvanized Steel Sheet Floor Decking Panels Roll Forming Machine

    Galvanized Steel Sheet Floor Decking Panels Roll Forming Machine
