Color steel tile, also known as color pressure tile, is a pressure-coated plate that adopts color-coated steel plate and is cold-rolled into various wave shapes by rolling.
|
Glazed Roof Sheet parameters |
||
|
1 |
Model |
HX28-207-828 |
|
2 |
Effective width |
828mm |
|
3 |
overall width |
905mm |
|
4 |
Raw material width |
1000mm |
|
5 |
Thickness |
0.3-0.7mm |
|
6 |
Wave height |
28mm |
|
7 |
Wave width |
208mm |
|
8 |
Length |
3.6 meter,7.2 meter,8.1meter,etc. |
|
9 |
Color |
White, blue, red, green, yellow, orange, etc. as per RAL card color; zinc color, stainless steel color, aluminum color. |
|
10 |
Tolerance |
Thickness tolerance:±0.02mm;Length tolerance: ±2mm |
|
11 |
Zinc coated |
30–275g/sqm, as requested. |
|
12 |
Face paint |
PE; HDP; SMP; PVDF; Two layers; 20-25μm; |
|
13 |
Back paint |
PE grey white color One layer 5-7um |
Raw materials
(1) Hot dipped galvanized steel sheet
(2)Pre painted galvanized steel sheet
(3) Galvalume steel sheet
(4) Pre painted galvalume steel sheet
(5) Other metal sheet like aluminum sheet
Advantages
It has many advantages such as easy installation, short construction period, beautiful appearance, light weight but high strength.

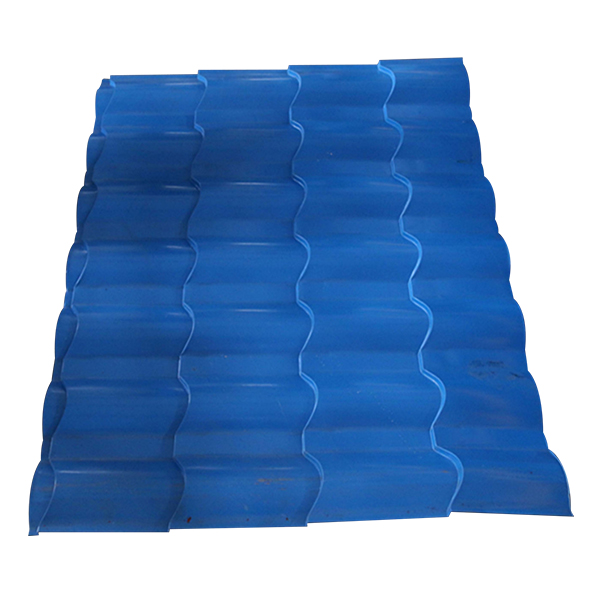

Picture display
Other types
Applications
It can produce a variety of steel roofs and wall panels, is a new type of building materials, products are widely used in factories, warehouses, garages, stadiums, exhibition centers, cinemas, theaters and other roofs and walls.
