High Speed Metal Trapezoidal Roof Sheet Roll Forming Machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Machine production process

    Packaging & Delivery

    FAQS

    Product Tags

    Steel Trapezoidal Sheet Roof Wall Panel Machine parameters

    Decoiler/uncoiler Manual decoiler/ Electric decoiler/ Hydraulic decoiler according to customer requirements
    Cutting blade Manual cutter/ Electric cutter/ Hydraulic cutter/ Servo motor cutter according to customer requirements
    Mainframe 350mm/ 400mm/ 450mm H beams, 45# steel
    Middle plate 16mm/ 18mm/ 20mm/ 22mm or according to machine demands,45# steel
    Machine cover Welded by 8mm diameter wire mesh and 35mm diameter angle steel
    Wheel 45# steel, surface heat treatment chrome plating, hardness HRC 58-60℃
    Shaft Diameter: 70mm / 75mm / 80mm /85mm /90mm (depends on different design)
    Solid shaft, high quality 45# forged steel, with anti-return pad
    Number of rolls Common 9 rolls - 25rolls (according to different design)
    Chain 1 inch/1.2inch /1.5 inch /2inch according to machine demands
    Voltage 220V/50HZ/single phase power; 380V/50HZ/3 phase; 415V/50HZ/3 phase; 440V/50HZ/3 phase; or as requirement
    Main motor power 3KW/4kW/5.5KW/7.5KW or as actual demands
    Hydraulic pump station Gear pump
    Pump station motor power 3KW/4KW/5.5KW/7.5KWor as actual demands
    Reducer 6#/ 8# Gear Reducer
    Hydraulic pressure 10-12MPa according to the oil pump and pump motor
    Shearing knife Cr12 / Cr12MOV, heat treatment, HRC 58-60℃
    Cr-plating size: 0.05 mm
    Cutting method Hydraulic guide column cutting; Hydraulic connecting rod cutting; Electric cutting; Servo motor tracking cutting
    Control System PLC Control System, 360 degree rotation
    PLC Display languages Chinese, English, (Spanish or Russian)
    Productivity 8-12m/min; 10~15m/min; 20- 25m/min; 30-40m/min
    Length tolerance ±2mm
    Cutting tolerance ±1mm
    Raw material Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Aluminum steel coil/ Stainless steel coil
    Feeding thickness 0.3-1.0mm(Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Stainless steel coil); 0.3-1.5mm (Aluminum steel coil)

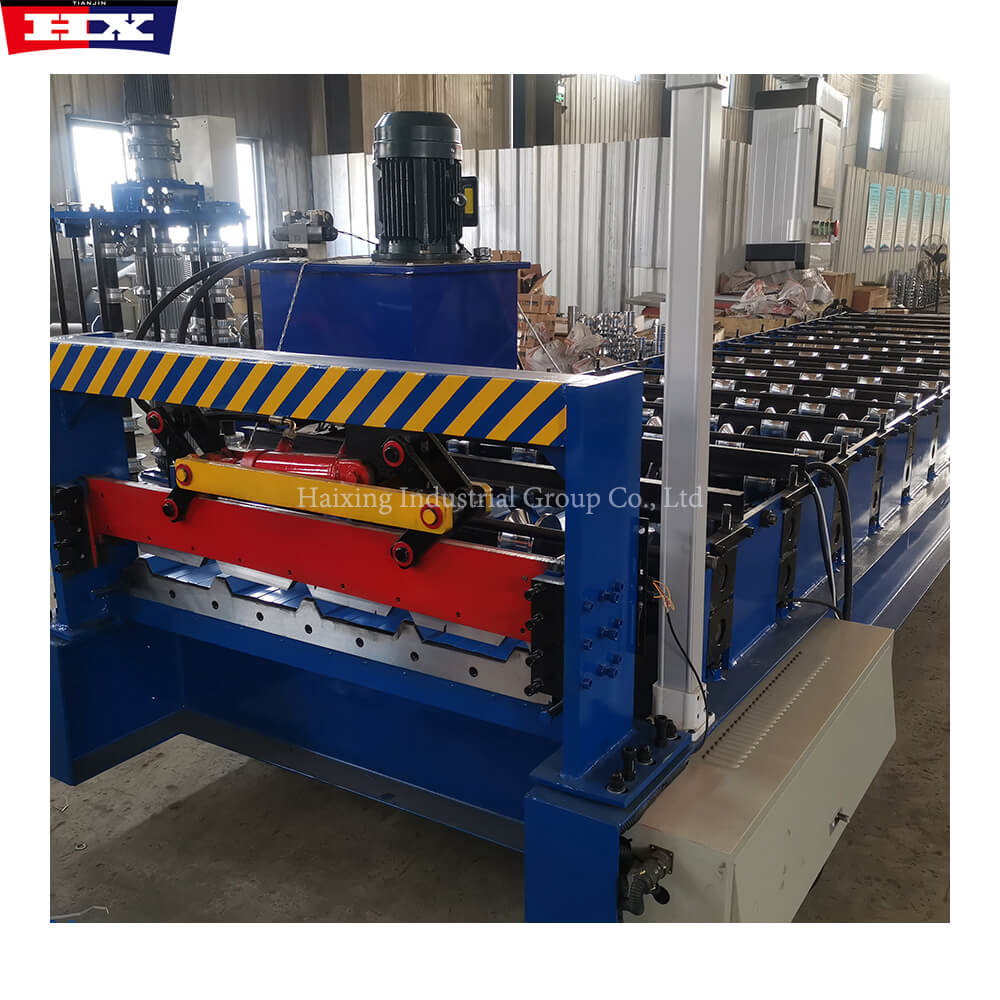

    1000 trapezoidal machine3

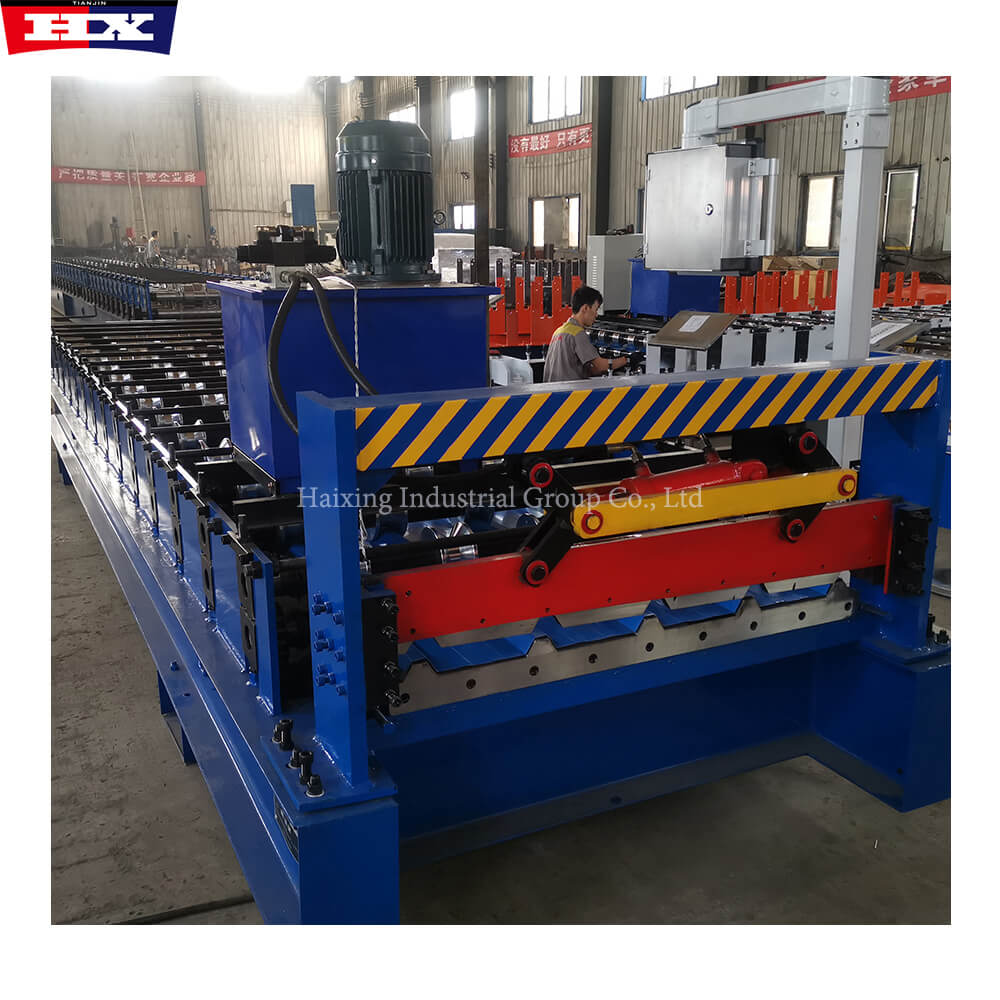

    1000 trapezoidal machine2
    1000 trapezoidal machine4
    1000 trapezoidal machine1

    Steel Trapezoidal Sheet Roof Wall Panel Machine details

    roof machine details

    01. Mainframe: GB H steel, hard texture.

    02. Operator station: 360-degree rotation display.

    03. Cutter: The main material is Cr12, which has high hardness.

    04. Retaining pad: Prevent the nut from loosening.

    05. Easy hanging: Prevent the machine from scratching during the movement.

    06. Wheel: generally 45# steel, good hardness.

    07. Travel switch: Limit the position or travel of the machine.

    08. Rear hand knife: cut in advance to prevent waste.

    09. Resin wheel: used to record the length of discharge and record data is more accurate.

    10. Electric control cabinet: The main brands are Panasonic / Siemens / Schneider / Delta PLC

    Why choose us?

    The customer service department of Haixing Group consists of knowledgeable machine experts and technicians who can answer and submit solutions to customer problems in the fastest time.

    For us, sales are not selling products and then go away. Our aim is to serve our customers wholeheartedly. To this end, we offer our clients free advice.

    In communication with customers, we not only have an in-depth understanding of the actual needs of our customers but also provide professional advice, including the choice of raw material types and raw material thickness.

    We provide remote services to our customers, allowing them to purchase products without any worries.

    Warmly welcome to visit our Chinese factory and choose the machine you need.

    Our machine is warranted for 24 months.
    During the warranty period, if the damaged part cannot be repaired, we can send the new part for replacement of the damaged part for free, but you will need to pay the courier fee yourself. If after the warranty period, we can negotiate to resolve the issue and provide technical support throughout the life of the device.
