Iron Coil Nail Making Machine

Short Description:

Iron coil nail making machine is used to make nails. We just need to pre-set length of nail and put the fine dia wire into the entrance of the nail making machine. It will finish nail making fully automatic.


Product Detail

Product Tags

Iron coil nail making machine is used to make nails. We just need to pre-set length of nail and put the fine dia wire into the entrance of the nail making machine. It will finish nail making fully automatic.

Technical parameter of C series for your reference

Model Z94-1C Z94-2C Z94-3C Z94-4C Z94-5.5C
Max. dia. of nail 1.6mm 2.8mm 3.5mm 4.5mm 5.5mm
Min. dia. of nail 0.9mm 1.2mm 1.8mm 2.8mm 3.8mm
Max. Length of nail 25mm 50mm 75mm 100mm 150mm
Min. length of nail 9mm 16mm 30mm 50mm 80mm
Motor power 1.5kw 2.2kw 3kw 4kw 5.5kw
Nail making speed 450pcs/min 350pcs/min 320pcs/min 260pcs/min 200pcs/min
L*W*H 1.5*1.3*1.2m 1.7*1.3*1.4m 2.0*1.4*1.4m 2.2*1.6*1.65m 2.5*1.6*1.5m
Weight 1.2tons 1.45tons 1.8tons 2tons 2.3tons

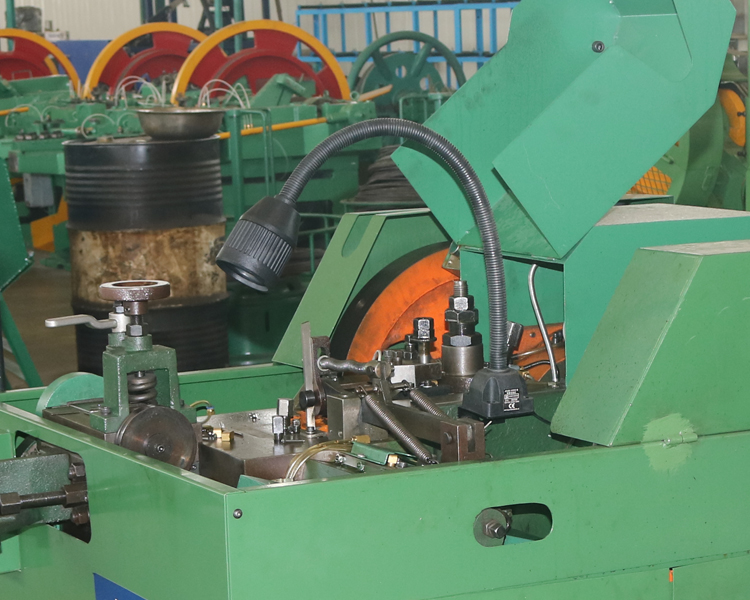

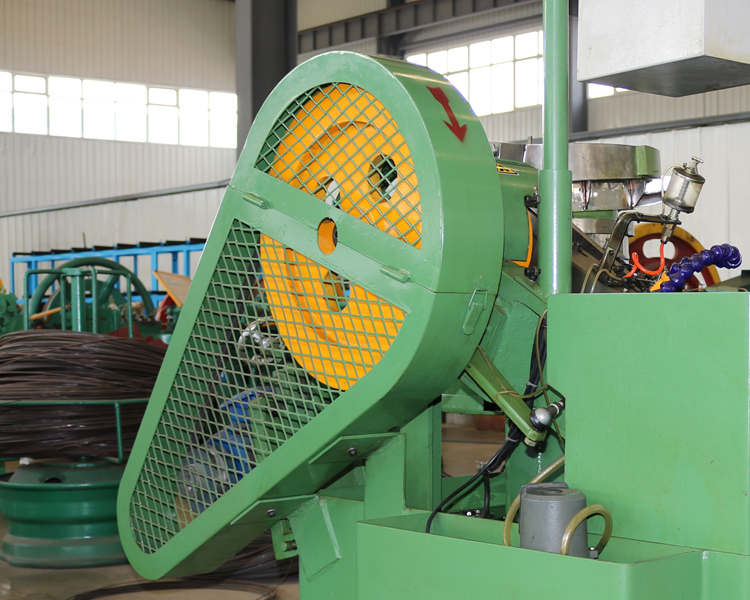

Machine pictures

Iron Coil Nail Making Machine1 Iron Coil Nail Making Machine2

Our Service

We can offer a wide range of specifications for the highest quality and lowest price.

If there are any projects that you are interested in, we will try our best to meet your requirements. We hope to establish long-term business relationship with you on the basis of equality and mutual benefit.
