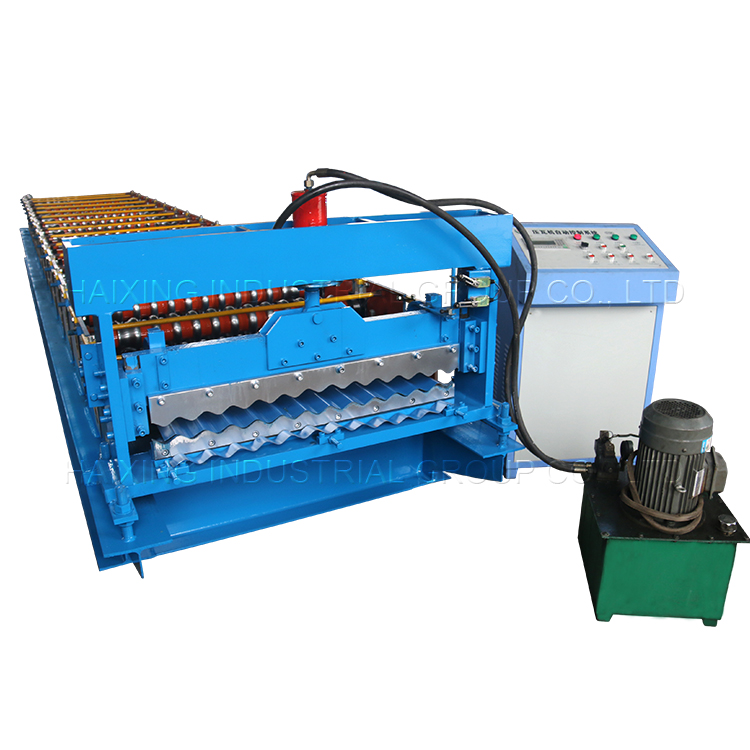

Metal Roofing Galvanized Aluminum Corrugated Steel Sheet Making Machine

Short Description:

1. Our machine motor is GERMAN BRAND SEMENS;
2. Our roller spacer is 4 mm thick seamless steel pipe;
3. Our output table can adjust the height according to customer demands;
4. Our PLC control console can look around 360 degrees;
5. All easy-broken pars can be changed within 14 months in free.


Product Detail

Product Tags

Metal Roofing Galvanized Aluminum Corrugated Steel Sheet Making Machine parameters:

1 Main motor power 4kW, 3 phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/ 3 phase/ 50 Hz (or as your requirements)
5 Control system PLC delta inverter
6 Main frame 300/350 mm H-beam
7 Backboard thickness 16 mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8 mm
11 Productivity 0-15/ min
12 Roll station 13 roll steps (according to different design)
13 Roller diameter 70 mm (depends on different design)
14 Roller material 45# steel
15 Cutter material Cr12
16 Cr-plating size 0.05 mm

Popular drawing of corrugated roof metal sheets:

762 drawing, 850 drawing, 836 drawing, 1032 drawing
corrugated drawing

Our Advantage:

1. Our machine motor is GERMAN BRAND SEMENS;
2. Our roller spacer is 4 mm thick seamless steel pipe;
3. Our output table can adjust the height according to customer demands;
4. Our PLC control console can look around 360 degrees;
5. All easy-broken pars can be changed within 14 months in free.

Easy-broken parts:

Easy-broken parts pictures for roof making machine

Other relative roof roll forming machine:

roof roll forming machine

Our company other products:

other roll forming machine

Packaging Details:

1. The main machine is covered by the plastic film.
2. PLC control box, spare parts, and other small parts are packed by wooden carton box.

roof machine packaging

Sales Service:

1. We provide the technical support for the whole life of our roof roll forming machines.
2. If buyers need the technician to go abroad, we will arrange the technician, but the buyers should take all the cost, including visa, round trip ticket, etc.
