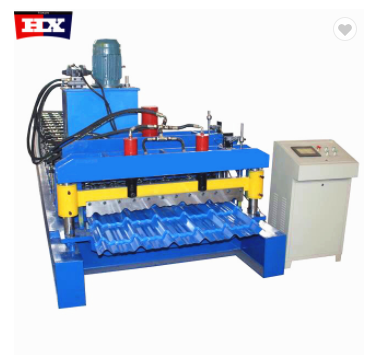

Metal roofing glazed tile machines Roll forming machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Technical parameters:

    1

    Cutting & Hydraulic type

    Double guide pillar

    2

    Hydraulic motor power

    3kw

    3

    Hydraulic Pressure

    10-12MPa

    4

    Voltage

    380V /3phase/ 50 HZ (as your requirement)

    5

    Cutting drive

    Decelerating motor + Chain drive gear all by

    high-frequency

    6

    Control System

    Panasonic /Siemens / Schneider / Delta PLC

    7

    Length measurement

    Encoder

    8

    Main Frame

    300mm/350mm H-Beam or 350mm

    9

    Backboard Thickness

    17mm/200mm

    10

    Chain Size

     1inch/2inch

    11

     Feeding width

     1200mm

    12

     Feeding Thickness

     0.18mm-0.8mm

    13

     Effective width

     900mm

    14

     Productivity

     10-15/min

    15

     Roll Station

     14 rows

    16

     Roller Diameter

     70mm/75mm

    17

     Roller material

     45# steel

    18

     Cutter material

     Cr12 mould steel heat-treated hardness

    of HRC 60-62 degrees

    19

    Total Weight

    About 4.5 t

    20

    Package of machine

    Water proofing membrane, standard export packing

    21

    Components

    Manual decoiler——————-1 set(5t)

    Guiding Platform——————1 set

    Coil Strip Leveler—————–1 set

    Main Machine of Roll Forming—-1 set

    Hydraulic Station—————- -1 set

    Supporter Table——————-1 set

    Coil Strip Leveler——————1 set

    23

      machine technical parameters can be changed, according to customer’s need.

    Detail show

    Hot Sale Multi-wave Glazed Tile Roll Forming Machine

    Hot Sale Multi-wave Glazed Tile Roll Forming MachineHot Sale Multi-wave Glazed Tile Roll Forming MachineHot Sale Multi-wave Glazed Tile Roll Forming Machine Hot Sale Multi-wave Glazed Tile Roll Forming Machine





    Component parts show

    Un set manual decoiler free:

    Hot Sale Multi-wave Glazed Tile Roll Forming Machine





    PLC control:

    Hot Sale Multi-wave Glazed Tile Roll Forming Machine



    Motor electric and hydraulic cylinder:

    Hot Sale Multi-wave Glazed Tile Roll Forming Machine



    Consumables:

    Hot Sale Multi-wave Glazed Tile Roll Forming Machine



    Related machine:

    Hot Sale Multi-wave Glazed Tile Roll Forming Machine





    Our advantage:

    Installation: With installation instructions, the line is connected, is very easy to operate, only need                      to insert the pin.

    After service: Two years guarantee for machine; 24 hours technical support by email or calling;                           If there is any problem found of the machine, we will repair it for free within two years.

    Easy to use: Our PLC is installed on the machine to reduce the space.

    And the PLC can be rotated to check the sheet while controlling.

    Hot Sale Multi-wave Glazed Tile Roll Forming Machine





    Our factory:

    Hot Sale Multi-wave Glazed Tile Roll Forming MachineHot Sale Multi-wave Glazed Tile Roll Forming MachineHot Sale Multi-wave Glazed Tile Roll Forming Machine

    Hot Sale Multi-wave Glazed Tile Roll Forming Machine
