New Fashion Design for Colored Galvanized Ibr Sheet Metal Shed Roof Sheeting

Short Description:

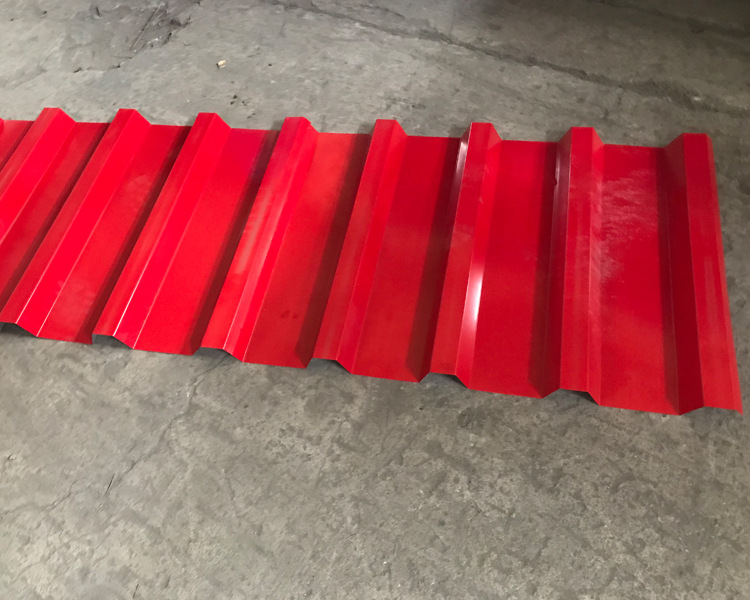

IBR roof sheets made of IBR roof panel roll forming machines generally refers to a profiled tile of an effective width of 686.


Product Detail

Product Tags

Our advantages are lower prices,dynamic sales team,specialized QC,strong factories,high quality products and services for New Fashion Design for Colored Galvanized Ibr Sheet Metal Shed Roof Sheeting, We play a leading role in supplying clients with high-quality items very good provider and competitive price ranges.
Our advantages are lower prices,dynamic sales team,specialized QC,strong factories,high quality products and services for Colored Metal Sheeting, Galvanized Roofing Sheet, Ibr Sheet Metal Shed Roof Sheeting, we have complete material production line, assembling line , quality control system, and the most importantly, we have many patents technology and experienced technical&production team, professional sales service team. With all those advantages, we are going to create”the reputable international brand of nylon monofilaments”, and spreading our products to every corner of the world. We are keep moving and try our best to serve our customers.

IBR roof sheets made of IBR roof panel roll forming machines generally refers to a profiled tile of an effective width of 686.

Roof roll forming machine parameters

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter
6 Mainframe 300/350mm H-beam or 350mm
7 Backboard thickness 16mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8mm
11 Feeding width 1000mm or 940mm
12 Effective width 686mm
13 Productivity 0-15/min
14 Roll station 13 roll steps (according to different design)
15 Roller diameter 70mm (depends on different design)
16 Roller material 45# steel
17 Cutter material Cr12
18 Cr-plating size 0.05mm
19 Overall size 6800*1400*1150mm
20 Total weight 4.8 tons

Components:

Manual un-coiler: 1 set

Guiding platform: 1 set

Coil strip leveler: 1 set

Main machine of roll forming: 1 set

Electric-motor: 1 set

Cutting device: 1 set

Hydraulic station: 1 set

PLC control: 1 set

Supporter table: 1 set

Machine picture display

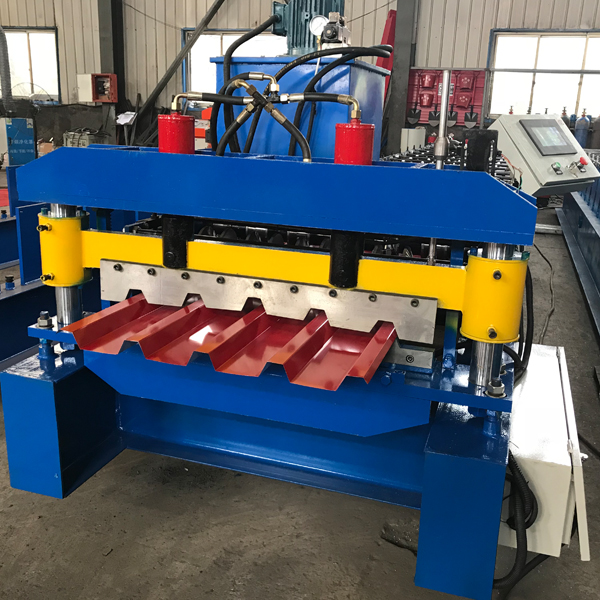

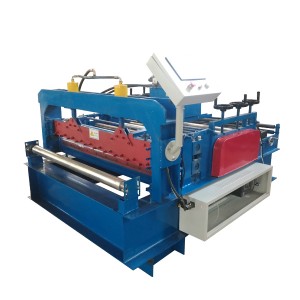

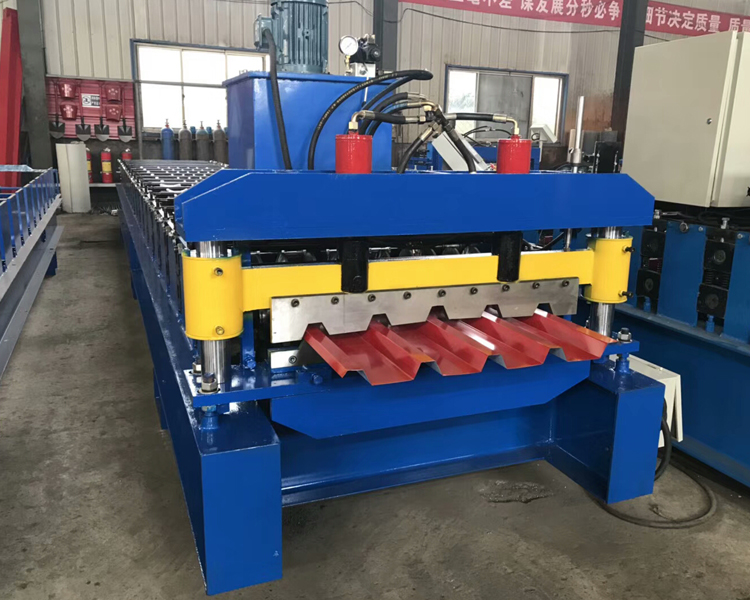

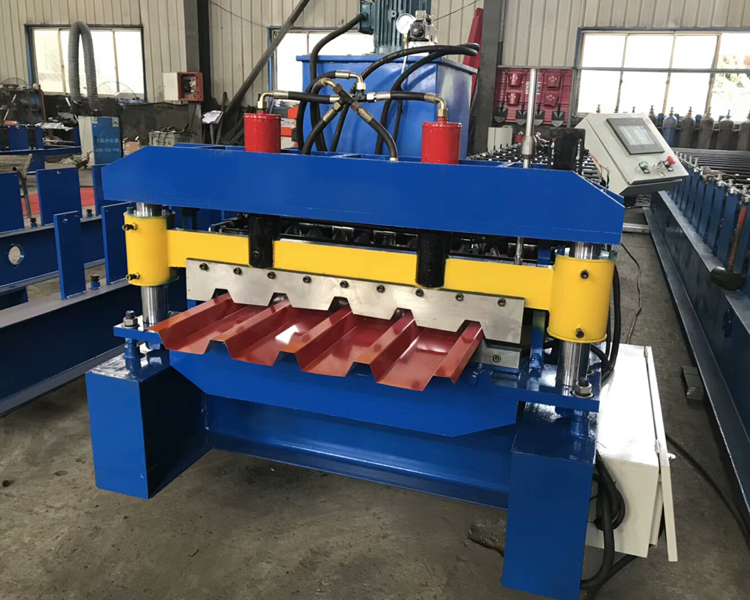

IBR Roof Machine IBR Roof Machine1 IBR Roof Machine2

Packaging Details:

1. machine is covered by plastic film.

2. PLC control box, spare parts and other small parts are packed by wooden carton box.

Terms:

1. Delivery: within 60 days after receiving the deposit.

2. Package: export standard package for container.

3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
