ODM Factory Lmssuperior Colored Glazed Steel Roof Tile Roll Forming Machine

Short Description:

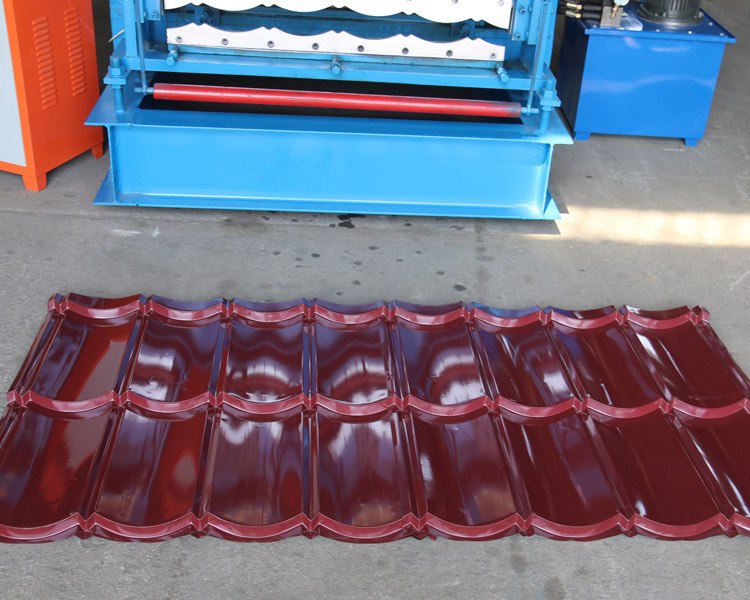

The tiles pressed out by the glazed roofing tile roll forming machine are very beautiful, and the technical parameters of the machine are as follows:


Product Detail

Product Tags

Always customer-oriented, and it’s our ultimate goal to get not only by far the most reputable, trustable and honest supplier, but also the partner for our customers for ODM Factory Lmssuperior Colored Glazed Steel Roof Tile Roll Forming Machine, Hope we can make a more superb potential with you as a result of our attempts from the future.
Always customer-oriented, and it’s our ultimate goal to get not only by far the most reputable, trustable and honest supplier, but also the partner for our customers for Roll Forming Machine, Roof Tile Roll Forming Machine, Steel Roof Tile Roll Forming Machine, We are introduced as a one of the growing manufacture supplier and export of our products. We have a team of dedicated trained professional who take care the quality and timely supply. If you are looking for Good Quality at a good price and timely delivery. Do contact us.
The tiles pressed out by the glazed roofing tile roll forming machine are very beautiful, and the technical parameters of the machine are as follows:

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter
6 Mainframe 300/350mm H-beam or 350mm
7 Backboard thickness 16mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8mm
11 Feeding width 1000mm
12 Effective width 836mm
13 Productivity 0-15/min
14 Roll station 13 roll steps (according to different design)
15 Roller diameter 70mm (depends on different design)
16 Roller material 45# steel
17 Cutter material Cr12
18 Cr-plating size 0.05mm
19 Overall size 6800*1400*1150mm
20 Total weight 4.8 tons

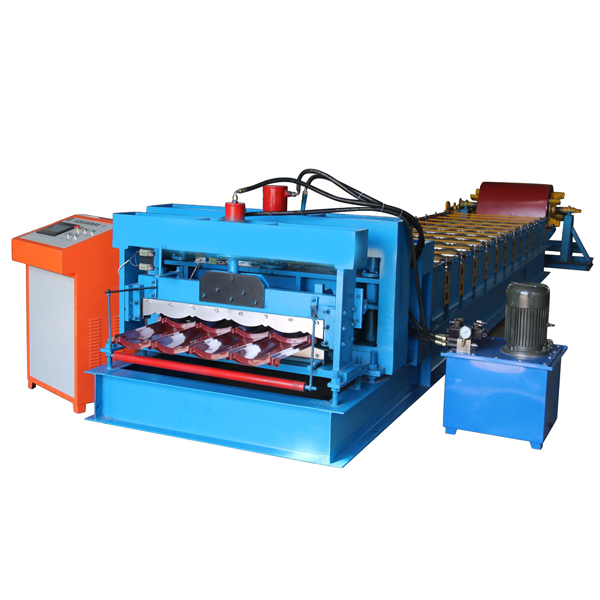

Glazed roofing tile roll forming machine components include: Manual un-coiler, Guiding platform, Coil strip leveler, Main machine of roll forming, Electric-motor, Cutting device, Hydraulic station, PLC control and Supporter table.

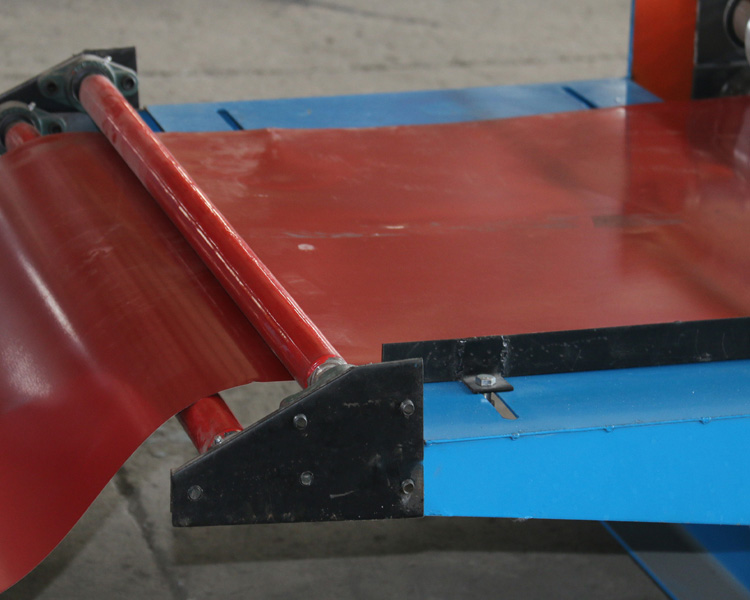

Machine Details

dfas gfdg

Packaging Details

1. Machine is covered by plastic film.

2. PLC control box, spare parts and other small parts are packed by wooden carton box.
