OEM Glazed Roof Tile Roll Forming Machinery For Mexico

Short Description:

Some parameters can be customized according to customer requirements.

The metal glazed roofing roll forming machines is mainly composed of the discharging machine, the feeding introduction platform, the forming main machine, the die pressing device, the forming shearing device, the hydraulic station, the computer control system, and the finished product bracket.


Product Detail

Product Tags

Some parameters can be customized according to customer requirements.

The metal glazed roofing roll forming machines is mainly composed of the discharging machine, the feeding introduction platform, the forming main machine, the die pressing device, the forming shearing device, the hydraulic station, the computer control system, and the finished product bracket.

The optional equipment includes a common discharge machine, a hydraulic discharge machine, and an automatic feeder.

Roof roll forming machine parameters

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter
6 Mainframe 300/350mm H-beam or 350mm
7 Backboard thickness 16mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8mm
11 Feeding width 1000mm
12 Effective width 836mm
13 Productivity 0-15/min
14 Roll station 13 roll steps (according to different design)
15 Roller diameter 70mm (depends on different design)
16 Roller material 45# steel
17 Cutter material Cr12
18 Cr-plating size 0.05mm
19 Overall size 6800*1400*1150mm
20 Total weight 4.8 tons

Components:

Manual decoiler: 1 set

Guiding platform: 1 set

Coil strip leveler: 1 set

Main machine of roll forming: 1 set

Electric-motor: 1 set

Cutting device: 1 set

Hydraulic station: 1 set

PLC control: 1 set

Supporter table: 1 set

Machine picture display

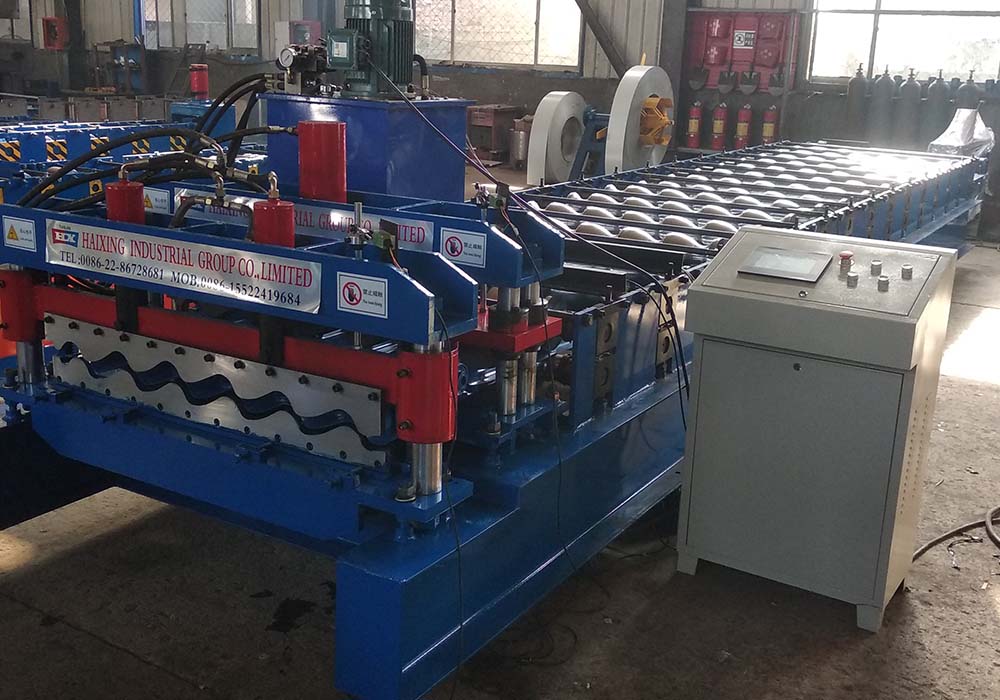

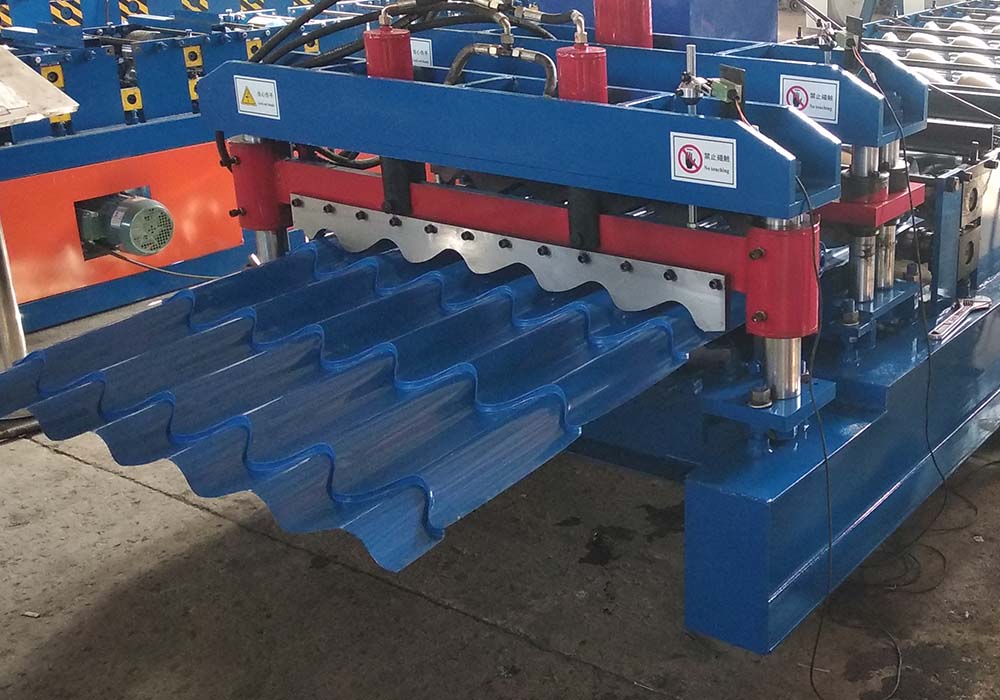

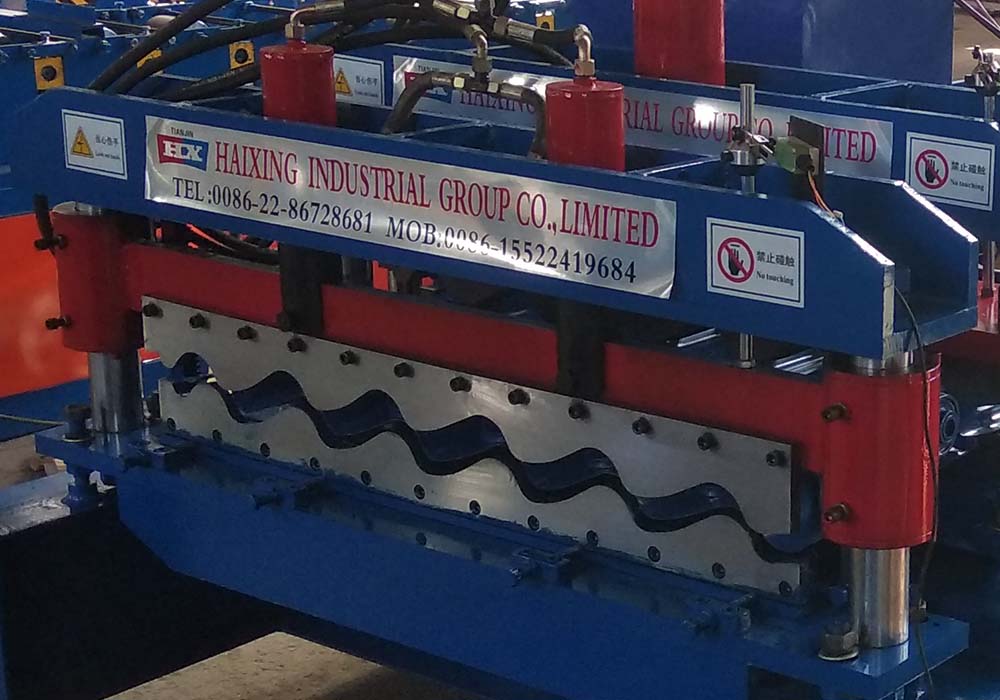

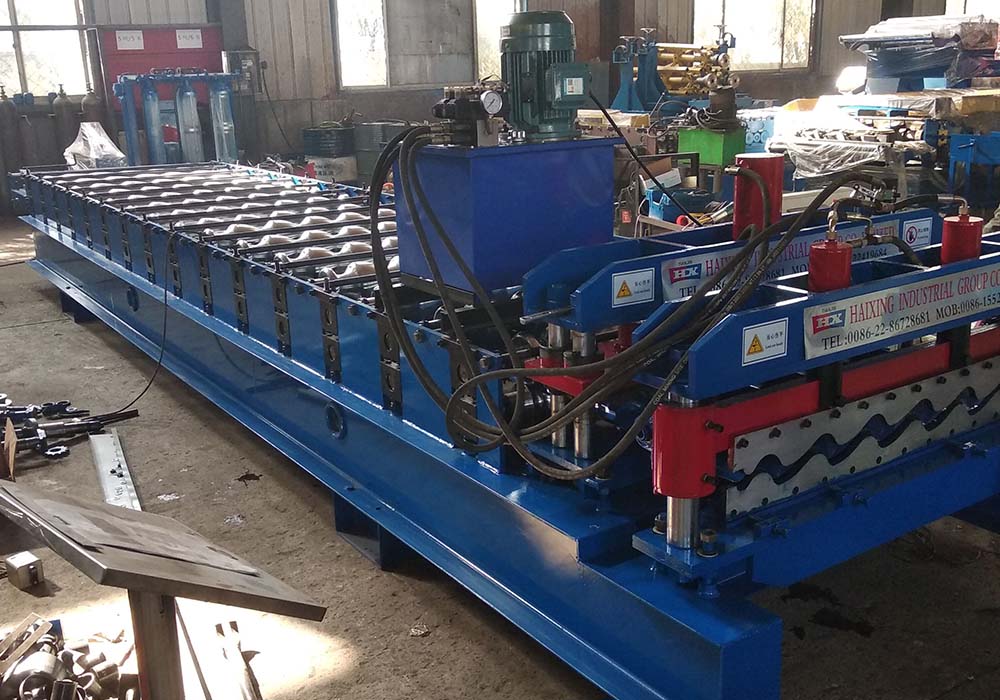

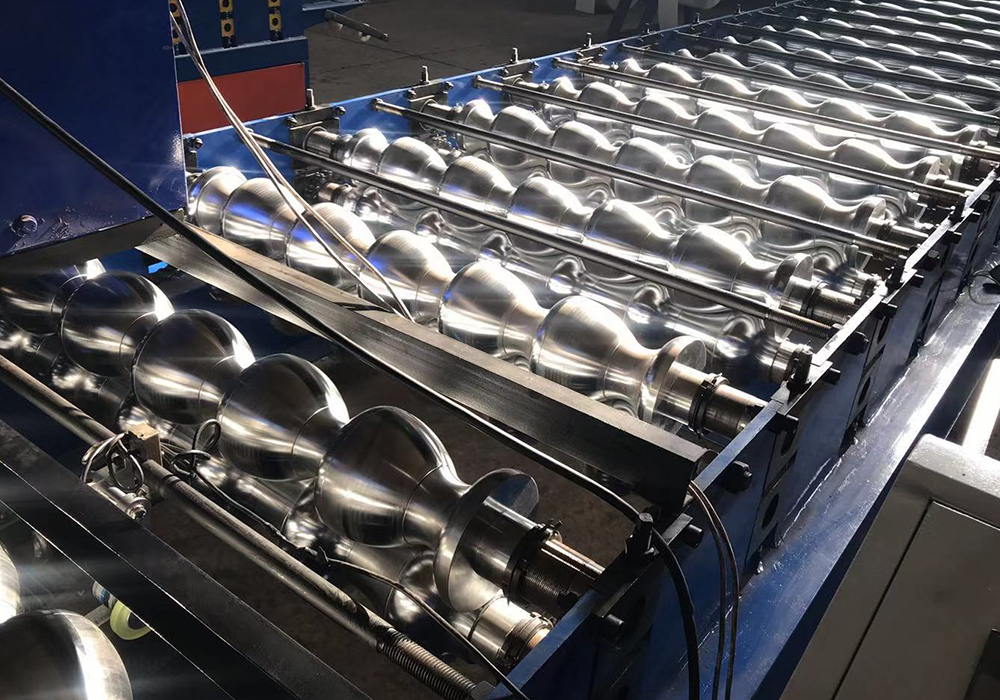

glazed roofmachine(detail) glazed roofmachine(detail)1 glazed roofmachine(detail)3 glazed roofmachine(detail)4 glazed roofmachine(detail)5

Machine package and shipment details
Standard export packing: 1*40 GP container,main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box.
