Original Factory Steel Plates - Color Steel Shutter Door Roll Forming Machine – Haixing Industrial

Short Description:


Product Detail

Product Tags

Related Video

Feedback (2)

The organization keeps for the procedure concept "scientific administration, superior quality and effectiveness primacy, shopper supreme for Downspout Tube Pipe Making Machinery , Fully Automatic Aluminum Foil Slitting Machine , Ceiling T Grid Making Machine , We have experienced manufacturing facilities with more than 100 employees. So we can guarantee short lead time and quality assurance.
Original Factory Steel Plates - Color Steel Shutter Door Roll Forming Machine – Haixing Industrial Detail:

Color steel shutter door roll forming machine consists of manual uncoiler, infeed guide, fixed position driven forming stations, rectifying device, cutting equipment, hydraulic station, control console and manual unload product run out table .

Machine parameters

Roller shutter door roll forming machine

1 Materials specification Aluminum, galvalume, galvanized and pre-painted galvanized steel.
2 Thickness 0.5mm to 1.0mm.
3 Main motor power 4.5kw.
4 Hydraulic station power 3kw.
5 Feeding width Depends on the model of profile.
6 Yield stress 235Mpa(33KSI) ~ 350Mpa
7 Roll forming speed 12-15 m/minute.
8 Cutting tolerance +/-2.5mm(length≤5000mm); +/-3.0mm(5000mm)
9 Manual uncoiled Max. Capacity: 3000kgsManual decoiler
10 Coil inner diameter 508mm/610mm
11 Voltage 380v/50hz/3 phase
12 Numbers of stands 12 stands/stations/pairs for each roll forming system
13 Roller material High grade No.45 forged steel, coated with hard chrome.
14 Active shaft material High grade No.45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft.
15 Electric elements PLC control panel, transducer imported from Mitsubishi of Japan.Other elements are from famous suppliers of China.
16 Cutter blades Cr12 mold steel with quenched treatment.

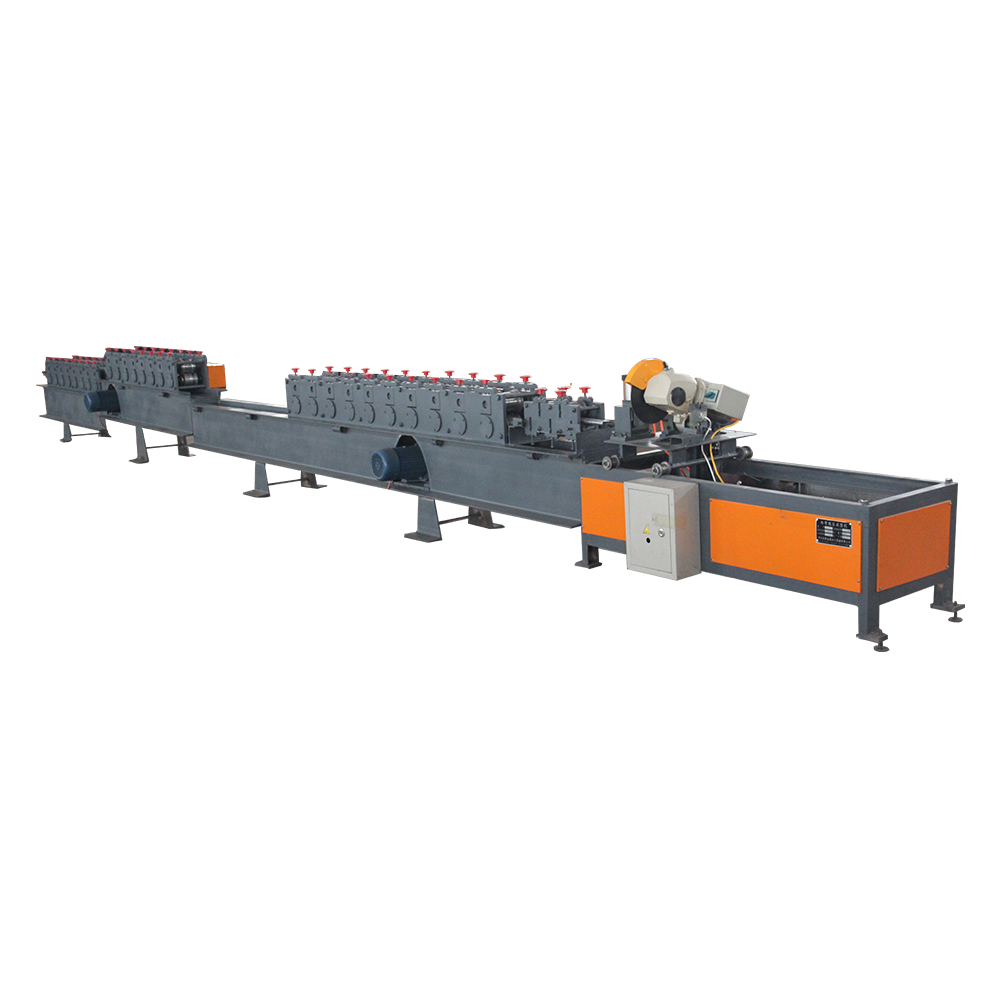

 Machine picture display

shutter door machines

Packaging Details

1. Machine is covered by plastic film.

2. PLC control box, spare parts and other small parts are packed by wooden carton box.

Terms:

1. Delivery: within 60 days after receiving the deposit.

2. Package: export standard package for container.

3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).

Sales service:

1. We provide the technical support for whole life of our machines.

2. If buyers need the technician to go abroad , we will arrange the technician, but the buyers should take all the cost , including visa, round trip ticket etc.


Product detail pictures:

Original Factory Steel Plates -
 Color Steel Shutter Door Roll Forming Machine – Haixing Industrial detail pictures
