Rapid Delivery for Single Arm Fume Extractor - Aluminum T Grid Roll Forming Machine – Haixing Industrial Detail:

The cold-formed keel of t grid light steel keel roll forming machine is a kind of frame used to support the shape and fixed structure. The keel is the skeleton and substrate of the home decoration. It is very common to use and can be designed according to the buyer’s sample or drawings.

T grid light steel keel roll forming machine parameters

1 Suitable to process Color steel plate
2 Width of the plate As customer need
3 Thickness of the plate 0.5-1.2mm
4 De-coiler Manual one, can load 3 tons raw material
5 Rollers for forming 18 rows
6 Diameter of the roller Φ52mm
7 Rolling material Carbon steel 45#
8 Main motor power 4kW
9 Productivity 8-12m/minute
10 Cutting method Hydraulic mold cutting
11 Material of the cutting blade Cr12
12 Hydraulic cutting power 3kW
13 Processing precision Within 1.00mm
14 Control system Delta PLC control
15 Side panel of machine 25mm
16 Main structure of the machine 300H steel
17 Weight About 6.5T
18 Dimensions 5.5*1.0*1.5m
19 Voltage 380V/50Hz/3 phases (changeable as needs)


Manual decoiler ——————————————1 set

Guiding platform —————————————–1 set

Main machine of roll forming —————————1 set

Electric motor ———————————————1 set

Cutting device ———————————————1 set

Hydraulic station ——————————————1 set

PLC control ————————————————1 set

Supporter table ——————————————–1 set

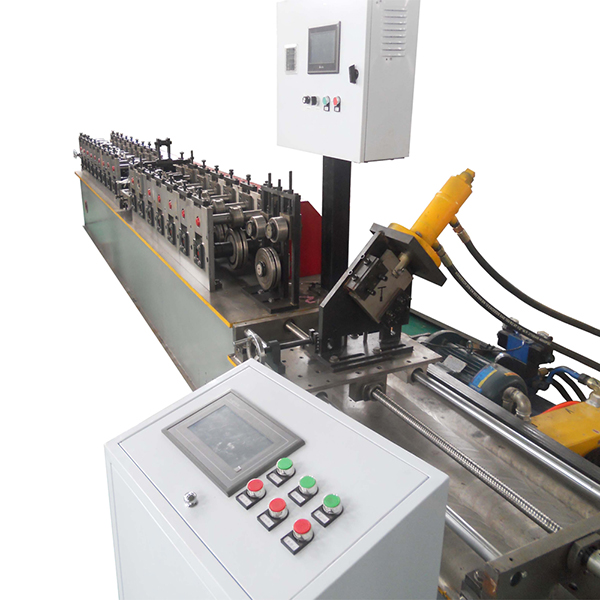

Machine picture display

 T grid light steel keel roll forming machine11 T grid light steel keel roll forming machine21 T grid light steel keel roll forming machine31

Packaging Details

1. Machine is covered by plastic film.

2. PLC control box, spare parts and other small parts are packed by wooden carton box.

Sales Service:

1. We provide the technical support for whole life of our machines.

2. If buyers need the technician to go abroad, we will arrange the technician, but the buyers should take all the cost, including visa, round trip ticket etc.

Product detail pictures:

Rapid Delivery for Single Arm Fume Extractor -
 Aluminum T Grid Roll Forming Machine – Haixing Industrial detail pictures
