Standing seam roof panel roll forming machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    The standing seam metal roof machine adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production.

    Parameters of standing seam metal roof machine:

    1 Thickness 0.3-0.8mm
    2 Coli material GI
    3 The bearing capacity of manual decoiler 6.5 tons
    4 shaft material 45#steel
    5 Out diameter Customized
    6 numbers of forming steps Customized
    7 transmission chain transmission
    8 Forming speed 8-12m/min
    9 main motor power 3kw
    10 voltage 380V50HZ Three-phase or as required
    11 dimension 7*1.3*1.3
    12 cutting hydraulic cutting
    13 blade material Cr12 steel with quenched treated 60℃-62℃
    14 control system PLC(Delta)
    15 length tolerance ±1mm

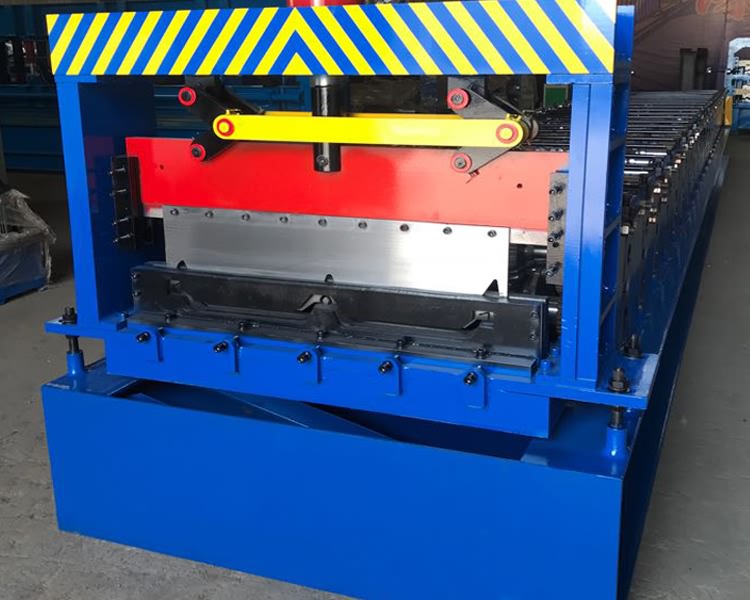

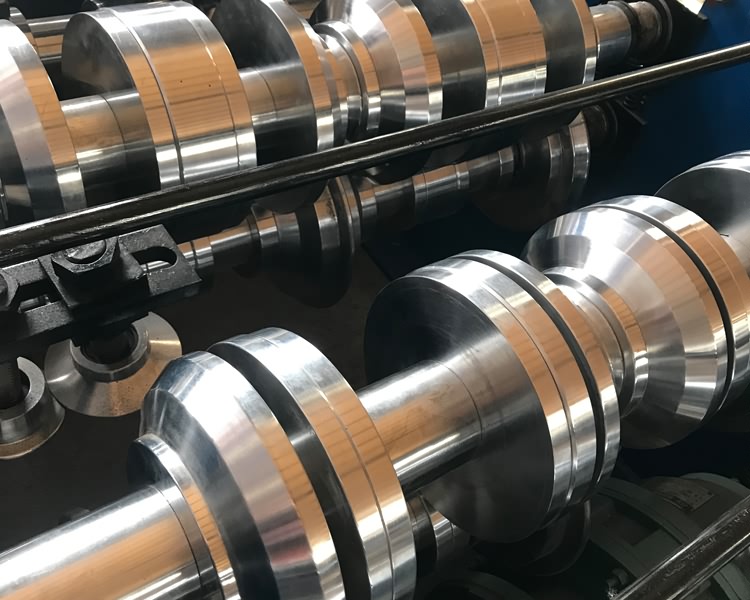

    Machine photos:

    standing seam roof panel roll forming machine11 standing seam roof panel roll forming machine21

    Terms:

    1. Delivery: within 60 days after receiving the deposit

    2. Package: export standard package for container

    3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
