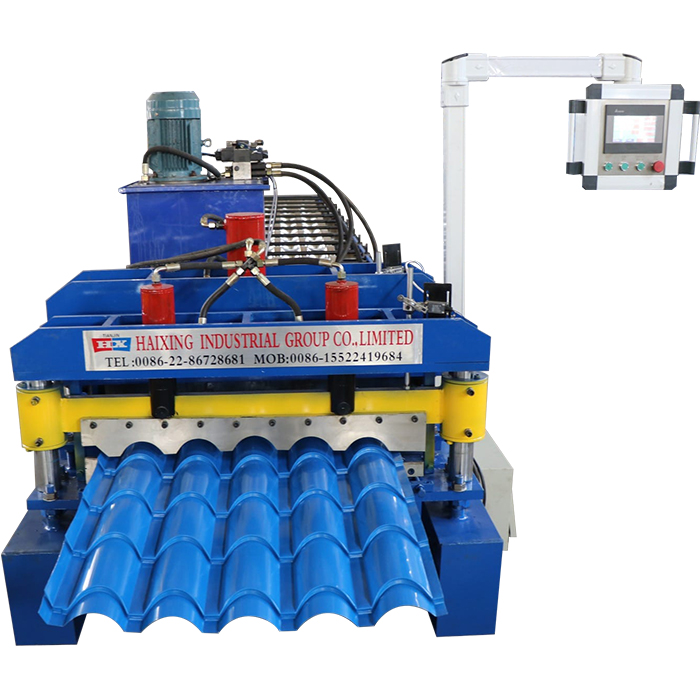

Steel Glazed Roof Roll Forming Machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

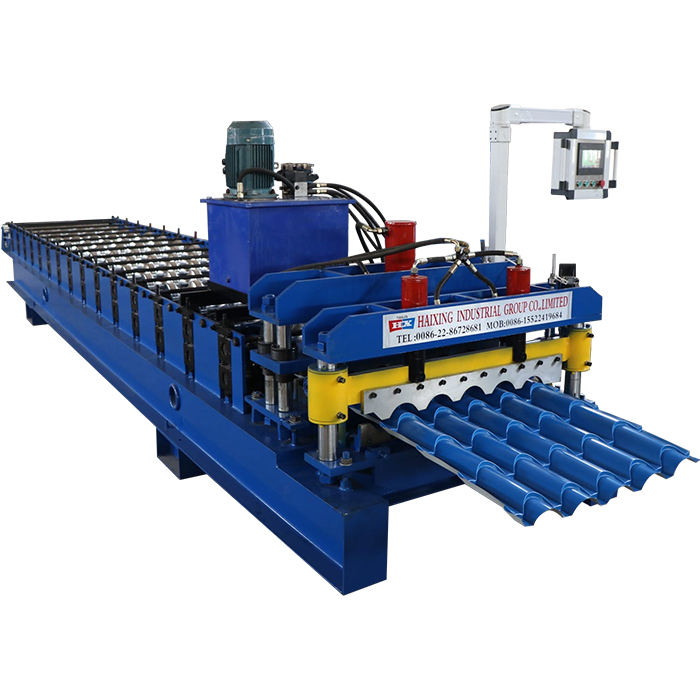

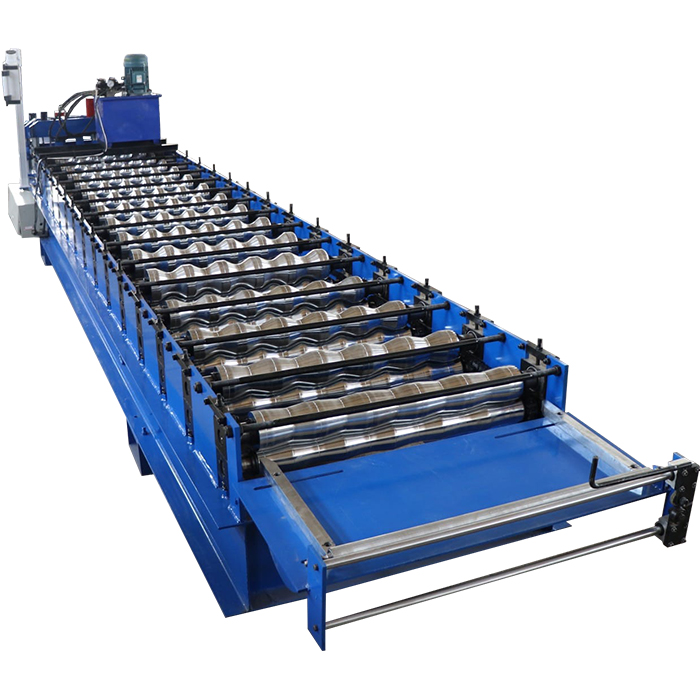

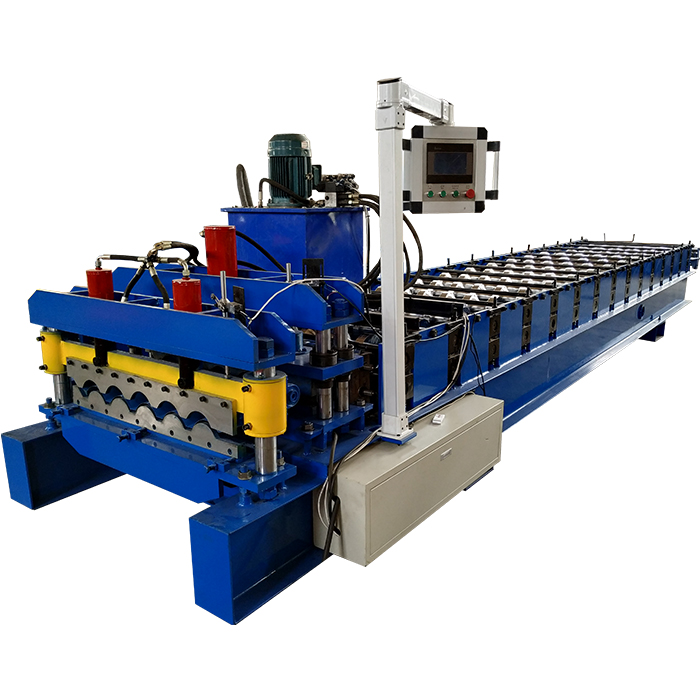

    Steel Glazed Roof Roll Forming Machine details showing

    This machine can produce glazed roof tiles. The final product is as follows:

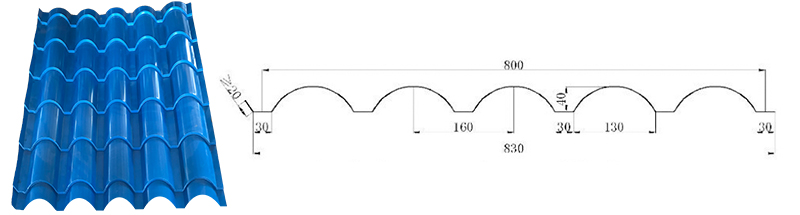

    800 Glazed roof tile

    Technical Parameters (some depend on the final design)

    Style Steel glazed roof roll forming machine
    Machine dimension 7500*1450*1600mm
    Total weight 5200kgs
    Forming steps 15rows
    Forming speed 1.5-3.0m/min
    Hydraulic station power 4kw
    Diameter of shaft 70mm
    Hydraulic pressure 18-20 MPa
    Electric condition 380V/3Phase/ 50HZ
    Suitable to process Color steel plate(G300~G450)
    Manual uncoiler max capacity 5000kgs
    Control system PLC
    Raw material thickness 0.3-0.8mm
    Effective width 800mm
    Material width 1000mm
    Main motor 5.5Kw
    Material of the cutting blade Cr 12 quenched treatment 58℃-62℃
    Main Shaft Material 45# steel with finish turning
    Roller materials 45# Forging Steel with Chromium Plate
    Machine Under Frame 350 H beams

    decoiler and output table

    We offer our customers easy-broken parts for free.

    Easy-broken parts1

    Application

    Wave roof roll forming machines mainly produce roofing, wall panels and door panels for building appliances and transportation. Corrugated roof sheet making machine can use galvanized steel, color steel plate or aluminum plate as material board.

    Our Services

    1. Installation and training:

    a. If buyers visit our factory and check wave roof roll forming machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

    b. Without visiting, we will send you user manual and video to teach you to install and operate.

    c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

    2. After Service

    a. Two years guarantee for the whole machine life.

    b. 24 hours technical support by email or call.

    c. If there is any problem found of the machine, we will repair it for free in one year.

    Certificates

     FAQ

    Q: How is this machine’s service life?

    A: In the normal maintenance, the service life at least 8 years.

    Q: Can you be responsible for transport?

    A: Yes, please tell me the destination port or address. We have rich experience in transport.

    Q: Can you make the machine according to my design or prototype?

    A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

    Q: How many workers operate this machine to manufacture?

    A: Only 1-2 worker.

    Q: Can you supply the raw materials?

    A: Yes, we can supply the galvanized steel coil, galvalume steel coil, color steel coil, and aluminum coil.

    Q: Why choose your company’s products?

    A: Because of our products cost-effective, not only high quality and affordable.

    Q: Does one machine can only produce one style panel profile?

    A: Not exactly. For wider and double layer making machine. It can produce more than 3 kinds of panels.

    Q: How long does it take to produce the machine?

    A: Generally speaking, the machine can be completed within 20~45 working days. But if you need machines urgently, we can do our best to save you time.
