Steel Roller Shutter Door Roll Forming Machine
Color steel shutter door roll forming machine consists of manual uncoiler, infeed guide, fixed position driven forming stations, rectifying device, cutting equipment, hydraulic station, control console and manual unload product run out table .
In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and galvanized treatment.
The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Roller shutter door roll forming machine
|1||Materials specification||Aluminum, galvalume, galvanized and pre-painted galvanized steel.|
|2||Thickness||0.5mm to 1.0mm.|
|3||Main motor power||4.5kw.|
|4||Hydraulic station power||3kw.|
|5||Feeding width||Depends on the model of profile.|
|6||Yield stress||235Mpa(33KSI) ~ 350Mpa|
|7||Roll forming speed||12-15 m/minute.|
|8||Cutting tolerance||+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm)|
|9||Manual uncoiled||Max. Capacity: 3000kgsManual decoiler|
|10||Coil inner diameter||508mm/610mm|
|12||Numbers of stands||12 stands/stations/pairs for each roll forming system|
|13||Roller material||High grade No.45 forged steel, coated with hard chrome.|
|14||Active shaft material||High grade No.45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft.|
|15||Electric elements||PLC control panel, transducer imported from Mitsubishi of Japan.Other elements are from famous suppliers of China.|
|16||Cutter blades||Cr12 mold steel with quenched treatment.|

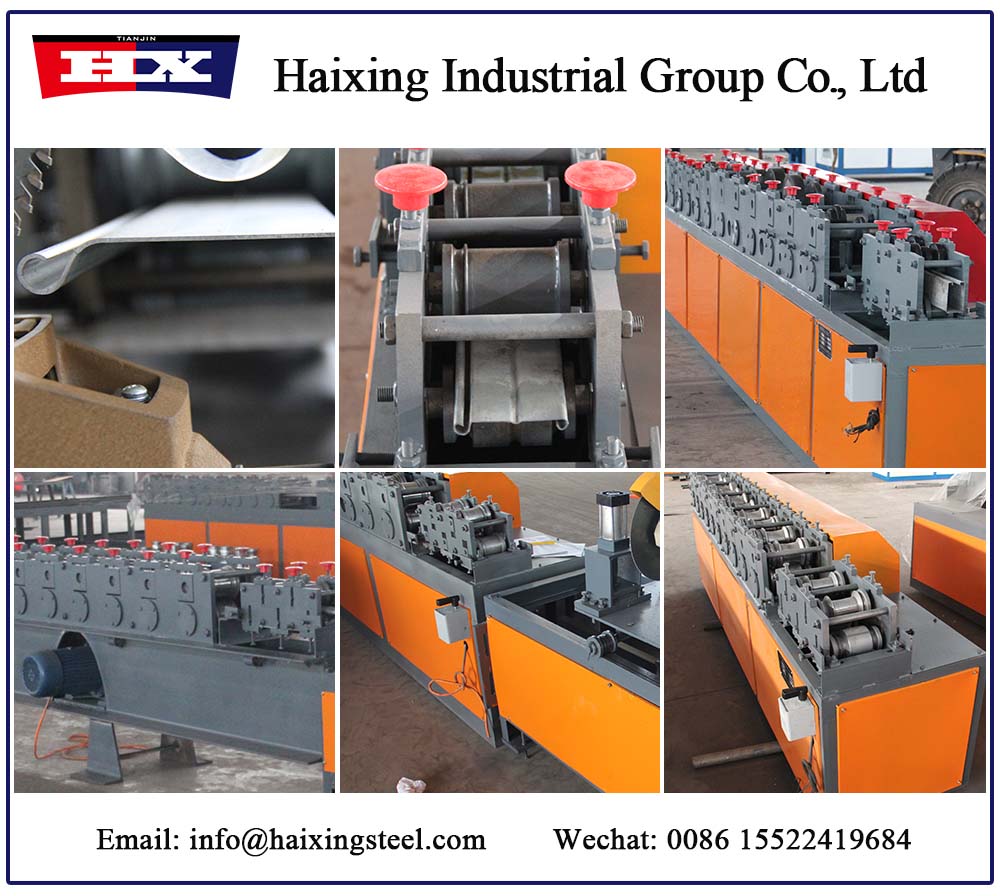

Machine picture display
1. Machine is covered by plastic film.
2. PLC control box, spare parts and other small parts are packed by wooden carton box.
1. Delivery: within 60 days after receiving the deposit.
2. Package: export standard package for container.
3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
1. We provide the technical support for whole life of our machines.
2. If buyers need the technician to go abroad , we will arrange the technician, but the buyers should take all the cost , including visa, round trip ticket etc.
