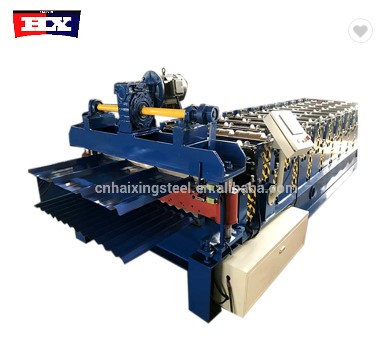

Steel tile double layer roof roll forming machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Roof roll forming machine parameters

    1 Main motor power 4kW, 3-phase or as your requests
    2 Hydraulic motor power 3kW
    3 Hydraulic pressure 10-12MPa
    4 Voltage 380V/3-phase/50Hz (or as your requirements)
    5 Control system PLC delta inverter
    6 Mainframe 300/350mm H-beam or 350mm
    7 Backboard thickness 16mm
    8 Chain size 1 Inch
    9 Feeding material color steel coils
    10 Feeding thickness 0.3-0.8 mm
    11 Feeding width depends on you need
    12 Effective width depends on you need
    13 Productivity 0-15/min
    14 Roll station 11 roll steps;9 roll steps
    15 Roller diameter 70mm (depends on different design)
    16 Roller material 45# steel
    17 Cutter material Cr12
    18 Cr-plating size 0.05mm
    19 Overall size 6000*1400*1150mm
    20 Total weight 4.8 tons

    Package and shipment details:

    Standard export packing: 1*20 GP container;

    Main machine naked and fastened with iron wire in the container;

    Rollers were painted with oil and packed with plastic film;

    Electrics devices be packed with wooden box.

    Terms:

    1. Delivery: within 30 days after receiving the deposit.

    2. Package: export standard package for container.

    3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).

    Main parts:

    decoiler type

    PLC control console

    drive cutting

    roll forming&output table

    Easy-broken parts

    Package:

    packing & transport

    Drawing: (for reference)

    840版型850版型



    Detail:

    2

    4

    轮子1

    轮子2
