trapezoidal metal roof tile making machine

Short Description:

  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Trapezoidal metal roof tile making machine parameters

    Control system Automatic PLC control system
    Mainframe 350/400H beams
    Chain size 1 inch/1.2inch according to machine demands
    Roll station Common 11rolls or 25rolls
    Roller diameter 70/75/80mm (depends on different design)
    Roller material 45# steel
    Cutter material Cr12MOV
    Cr-plating size 0.05mm

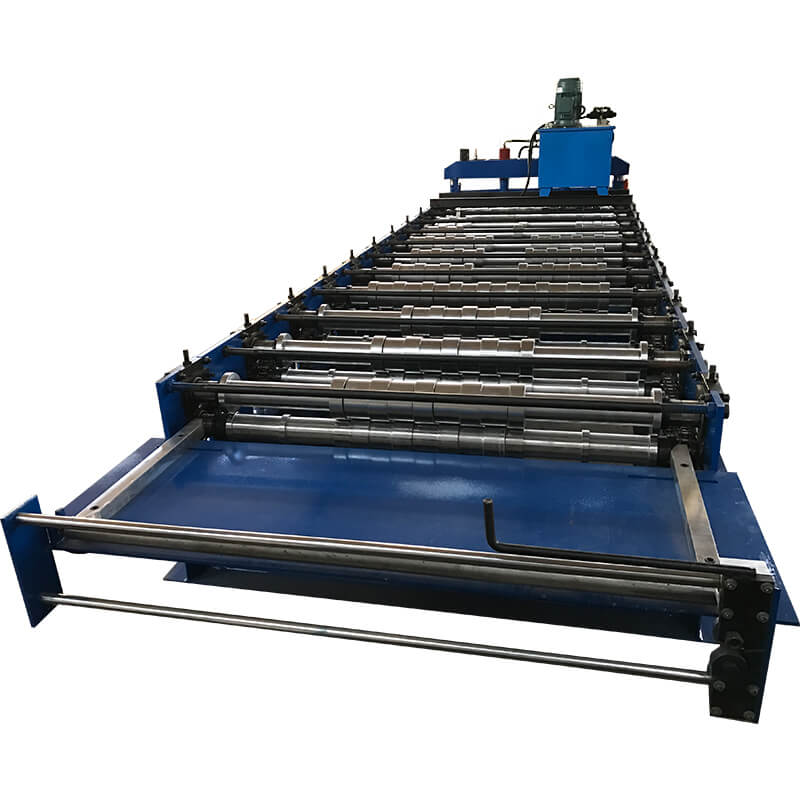

    Trapezoidal metal roof tile making machine picture display

    Color steel trapezoidal roof panel machine

    Detail display of the steel roof roll forming machine parts

    01. Mainframe: GB H steel, hard texture.

    02. Operator station: 360-degree rotation display.

    03. Cutter: The main material is Cr12, which has high hardness.

    04. Retaining pad: Prevent the nut from loosening.

    05. Easy hanging: Prevent the machine from scratching during the movement.

    06. Wheel: generally 45# steel, good hardness.

    07. Travel switch: Limit the position or travel of the machine.

    08. Rear hand knife: cut in advance to prevent waste.

    09. Resin wheel: used to record the length of discharge and record data is more accurate.

    10. Electric control cabinet: The main brands are Panasonic / Siemens / Schneider / Delta PLC.

    roof machine details


    About us

    HAIXING INDUSTRY GROUP CO.,LTD, not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

    First, We have professional technicians for loading: Guaranteed the goods load into containers without any damage.

    Second, Transportation: Machines need one 40 feet container to hold(based on machine size).

    Third, Please provide us the nearest port name, we will be ask shipping cost and arrange shipping for you based on your need.
