Decoiler For Roll Forming Machine

Short Description:

  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Technical parameters of Decoiler For Roll Forming Machine

    1. Main frame : 160mm Channel Steel to weld
    2. Dia of shaft : 95mm
    3. Power of motor : 3kw
    5. Chain : 31.75mm
    6. Bearing : 6312
    7. Appearance size : (Length)1840mmX(Width)1000mmX(Height)1200mm
    8. To support and uncoil the steel coil
    9. Tenses the coil by Electric power, it is convenient for the workers to operate
    10. The inner coil diameter : φ450-550mm
    11. Max outer coil diameter : φ1000mm
    12. The max capacity : 7T

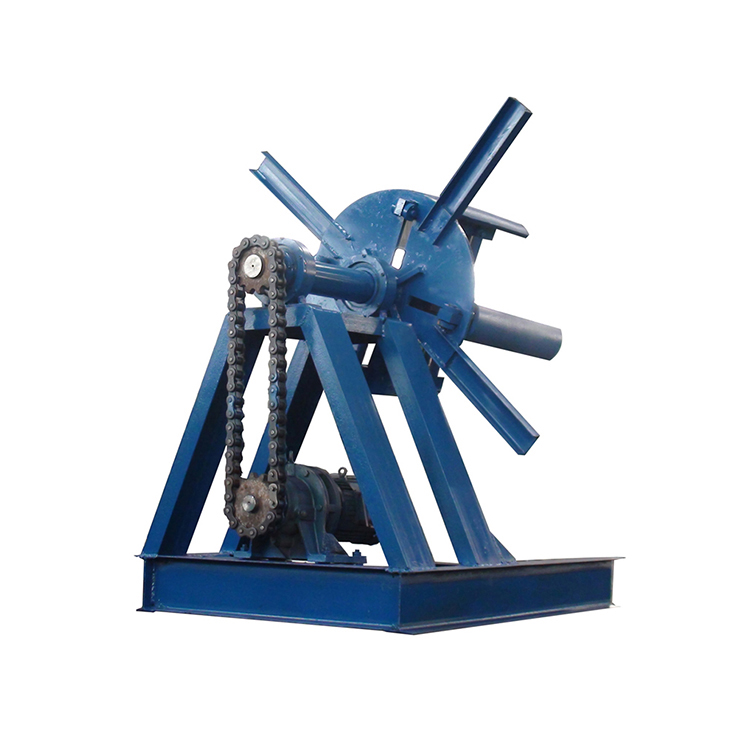

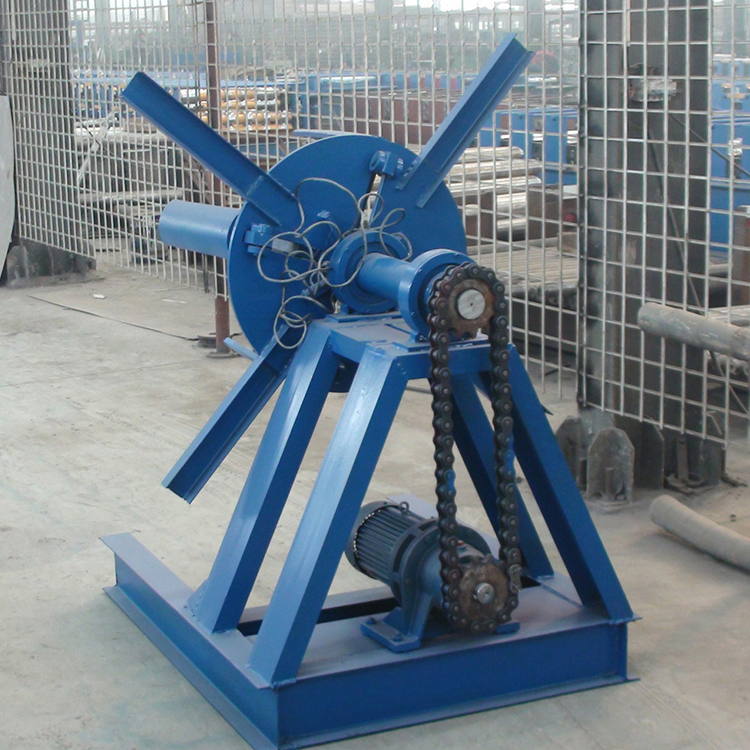

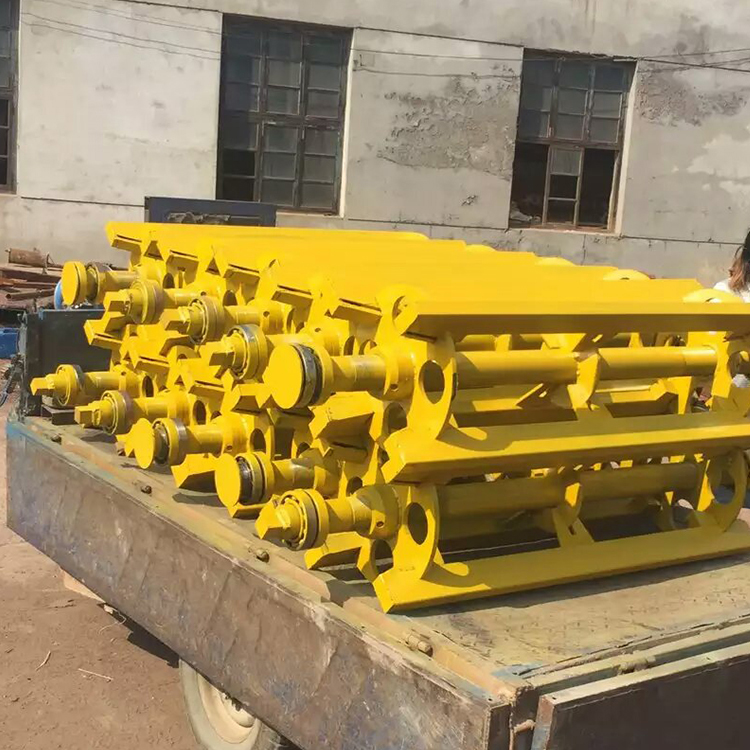

    electric decoiler3 electric decoiler8 electric decoiler9

    Decoiler For Roll Forming Machine Free packaging for you:

    Standard export packing:20feet or 40 feet GP container ; main electric steel plate rolls decoiler machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, control box will be packed with carton box.

    Decoiler For Roll Forming Machine applications

    1.Automatic colour Steel Coil Decoiling Machinery

    2.Steel uncoiler machine for decoiler hot rolled steel slit coils

    3.Hydraulic automatic decoiler with trolley

    4.Supply various decoilers, like manual decoiler, electric decoiler, hydraulic decoiler etc

    5.Strong machines with competitive prices

    6.Supply technical support for all life
