Double Roof Tile Machine

Short Description:

Our Service Advantage

1. Professional: rich experience in product and export process!

2. Low price: Save your money from every part!


Product Detail

Product Tags

Our Service Advantage

1. Professional: rich experience in product and export process!

2. Low price: Save your money from every part!

Parameters of double layer roll forming machine

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter
6 Mainframe 300/350mm H-beam or 350mm
7 Backboard thickness 16mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8mm
11 Feeding width 1000mm
12 Effective width 840mm, 850mm
13 Productivity 0-15/min
14 Roll station 13 roll steps (according to different design)
15 Roller diameter 70mm (depends on different design)
16 Roller material 45# steel
17 Cutter material Cr12
18 Cr-plating size 0.05mm
19 Overall size 6800*1400*1150mm
20 Total weight 4.8 tons

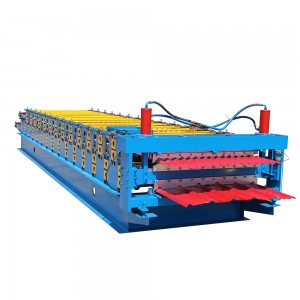

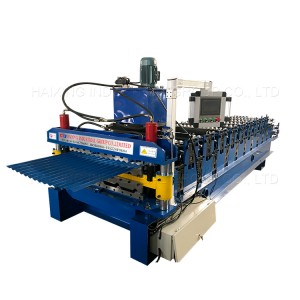

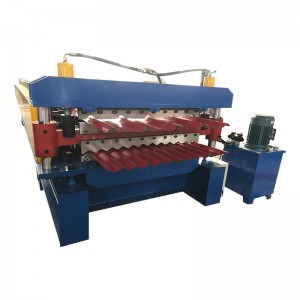

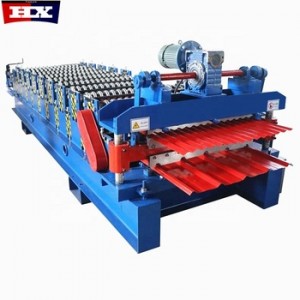

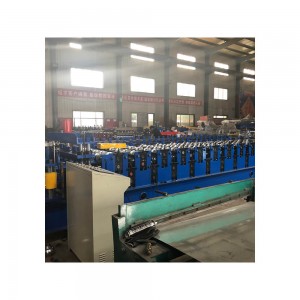

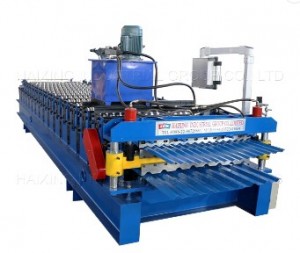

Machine photos

double layer machine-corrugated and trapezoidal11 double layer machine-corrugated and trapezoidal12 double layer machine-corrugated and trapezoidal13

Components of double roof tile machine

No. Name Unit Quantity
1 Manual decoiler Set 1
2 Main forming machine Set 1
3 PLC control system Set 1
4 Hydraulic pump station Set 1
5 Post cut Set 1
6 Electric motor Set 1
7 Output table Set 1

Machine package and shipment details
Standard export packing: 1*40 GP container,main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box.

Why choose us ?

Professional:

With 10 years’ professional manufacturing experience in roll forming machinery;

Professional production line,well -trained workers,strict QC standard.
