Metal Standing Seam Machine

Short Description:

  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    The Standing Seam Metal Roof Panel has excellent flexibility, and with different materials such as steel plates and aluminum plates, it can meet various architectural design requirements.

    Including flat, curved, fan-shaped (large and small head), melon-shaped (two small ends and large in the middle), the middle small and two heads and other shapes. Thus providing architects with a vast creative space.

    Metal Standing Seam Machine parameters

    1 Suitable to process Color alu-zinc steel coil/Aluminium Coil
    2 Roller 16Rows
    3 Dimensions 7.0*1.3*1.55m
    4 Motor Power 7.5Kw
    5 Pump Station Motor 5.5Kw, Lichao Brand
    6 Thickness of the plate 0.6-1.2mm
    7 Productivity 10-15m/min
    8 Material of the cutting blade Cr12,Quenched treatment 58℃-60℃
    9 Diameter of the roller Φ90mm
    10 Weight About 4800kgs
    11 Main structure of the machine 400H beams
    12 Processing precision Within 1.0mm
    13 Side panel of machine 20mm
    14 Chain Wheel and Cycle Chain 1 Inch
    15 Voltage 380V 50Hz 3phases or as customer’s need
    16 Control system PLC control (Delta)
    17 Frequency system Delta
    18 Drive mode Motor driver
    19 Touch screen Delta
    20 Rolling materials 45# forging steel with chromium plate
    21 Length Tolerance ±2mm

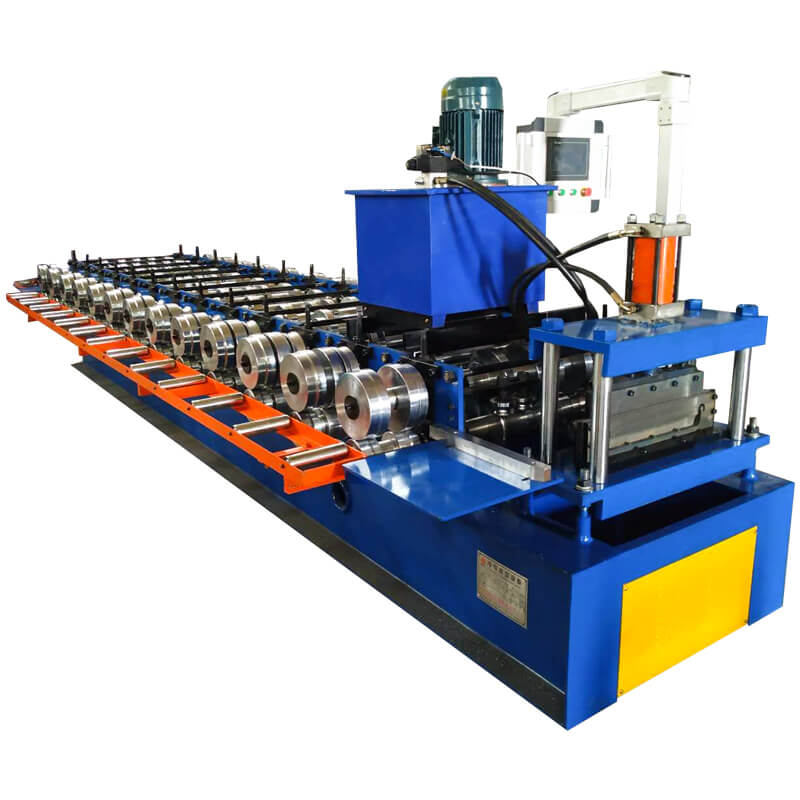

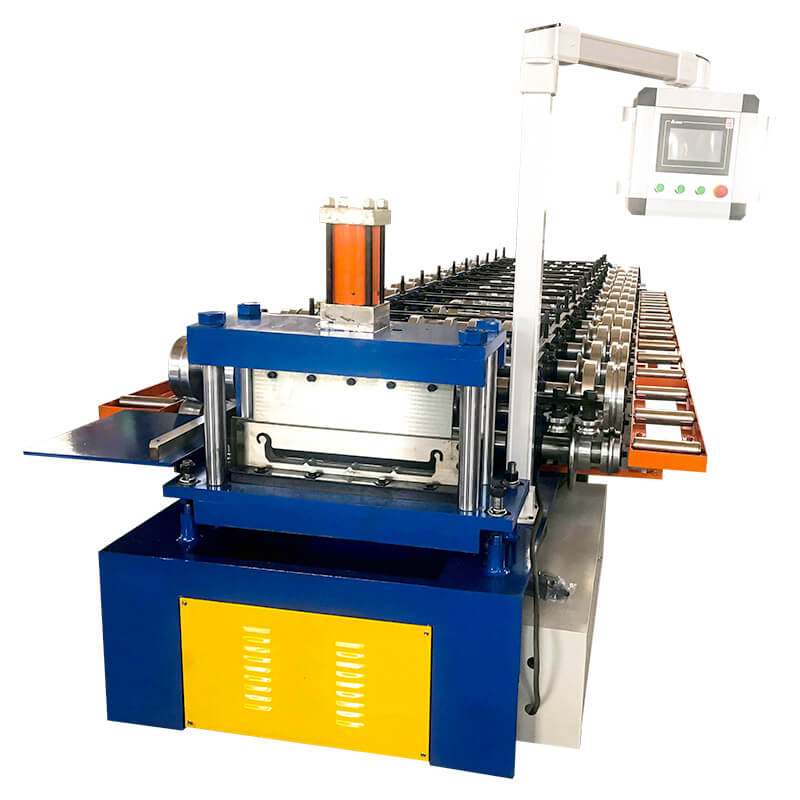

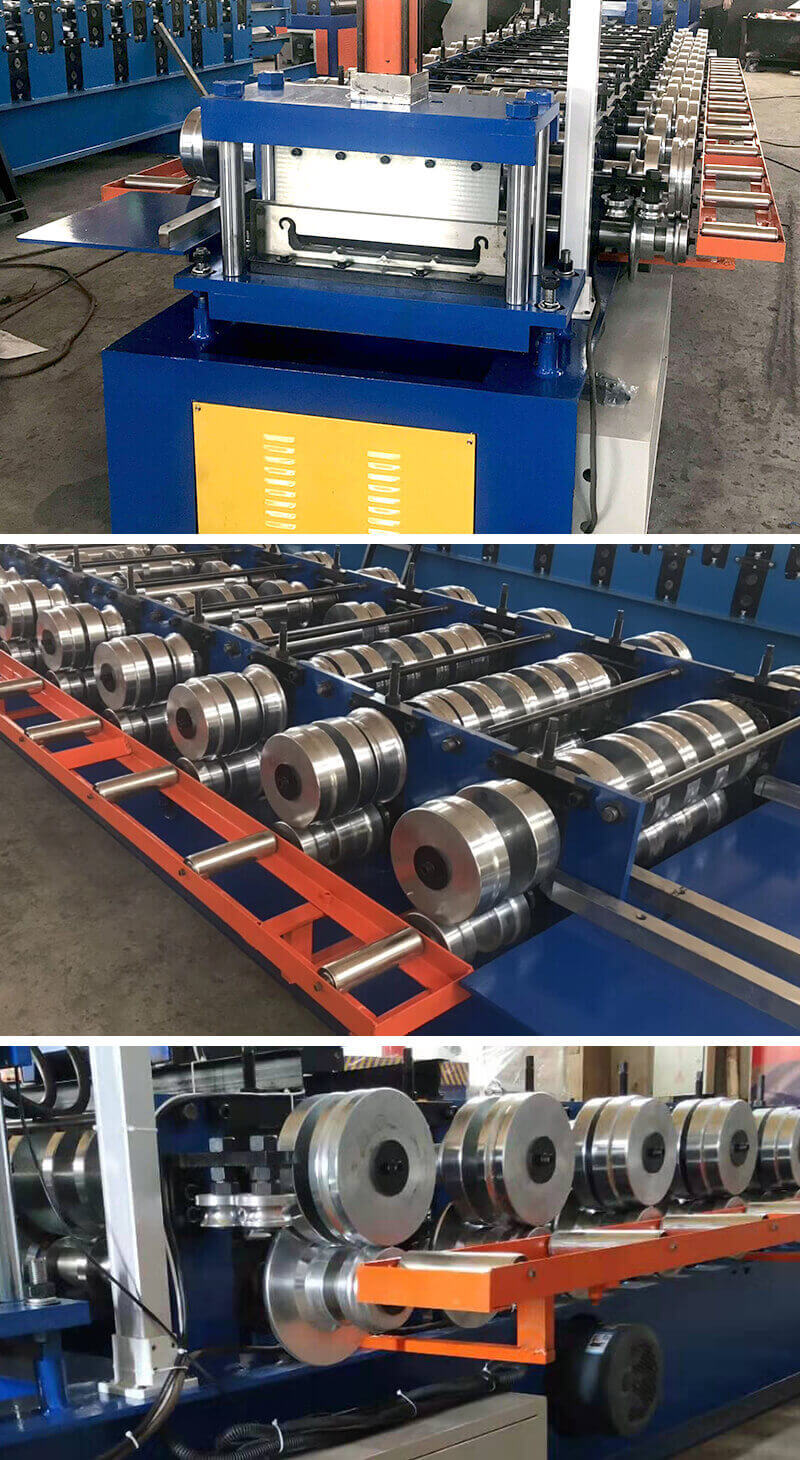

    Picture details of Metal Standing Seam Machine

    standing seam roll forming machine details

    Roof roll forming machines has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet, selflock roof machine. The metal sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.

    For the Metal Standing Seam Machine, we commonly use the profile as following:

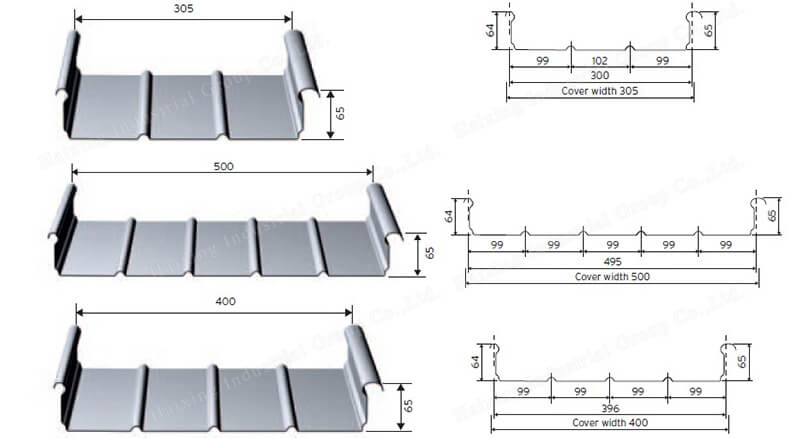

    common standing seam roof sheets profile

    Metal Standing Seam Machine packaging Details

    a.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.

    b.Rollers and shafts are covered with anti-rust oil.

    c.PLC control system and motor pump are packed with waterproof paper and plastic film.

    d.Spare parts in a carton box.

    e.Manual decoiler was nude packing.

    f.The output-table put into a carton box.

    g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.

    h.Fit for ocean shipping.
