High Speed Roof Tile Roll Forming Machine with Gearbox Drive | Haixing
The high speed roof tile roll forming machine from Haixing is designed for metal roofing sheet manufacturers requiring efficient production and a robust transmission structure. This equipment features a gearbox-driven forming system and middle plate construction, making it suitable for manufacturing customized metal roof tile profiles.
Compared with conventional roll forming machines using chain transmission, a gearbox-driven configuration offers a different approach to power transmission between forming stations. The machine can be designed around the customer’s required roofing profile, raw material specifications, and production capacity.
Haixing provides customized equipment solutions for manufacturers producing metal roofing sheets for residential, commercial, and industrial construction projects.
High-Speed Gearbox Transmission System

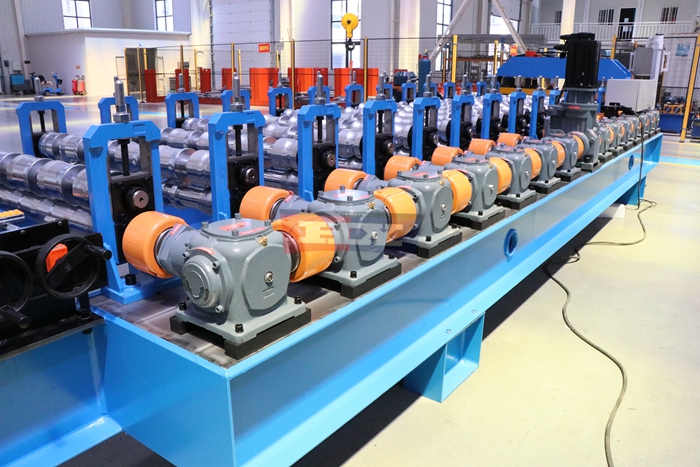

One of the main features of this high speed roof tile roll forming machine is its gearbox-driven transmission arrangement. The gearbox system transfers driving power to the forming section, supporting the coordinated operation of the roll forming stations.
For roofing sheet manufacturers, transmission design is an important consideration when evaluating production requirements, equipment maintenance, and continuous operation.
The gearbox configuration, motor arrangement, and achievable forming speed are determined according to the finished roofing profile, steel thickness, and approved machine design.
Middle Plate Structure for Roll Forming Equipment

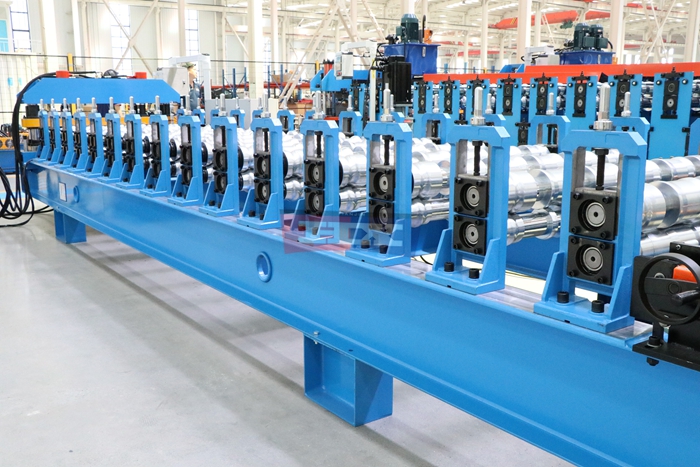

The machine adopts a middle plate structure as part of its forming station assembly. This structural arrangement is used to support and position the forming components within the production line.
When evaluating roll forming machinery, the design of the forming stands, shafts, supporting plates, and transmission system should be considered together. These components influence the overall machine arrangement and its suitability for the required roofing sheet profile.
Haixing can discuss the forming station structure and equipment layout according to the customer’s production requirements.
Metal Roof Tile Manufacturing Process
A typical gearbox-driven roof tile production line includes material decoiling, sheet guiding, progressive roll forming, profile processing, and cutting equipment.
The steel coil enters the forming section and passes through multiple roller stations. Each station gradually shapes the metal strip into the required roofing profile.

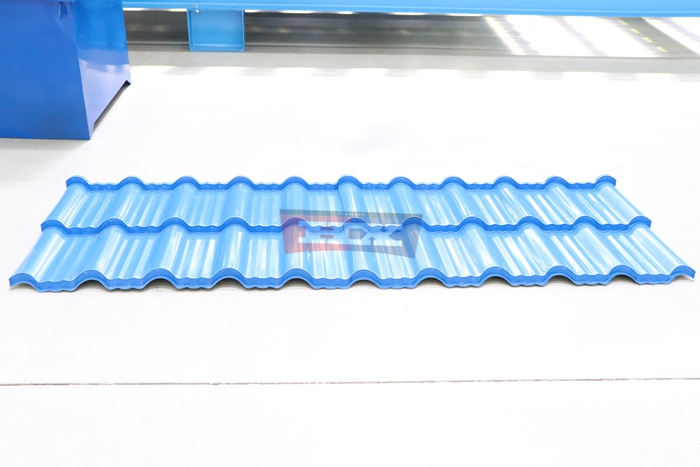

For glazed-style roofing tiles with transverse steps, a suitable tile pressing arrangement can be included according to the finished profile design. The completed roofing sheets are then cut to the specified length.
The exact production sequence and supporting equipment depend on the selected roofing profile and final machine configuration.
Customized Roofing Profiles and Raw Materials

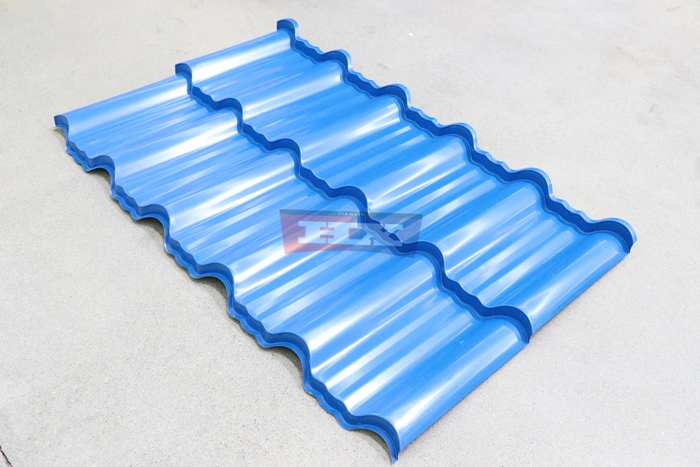

The high speed roof tile roll forming machine can be designed for different metal roofing profiles according to customer drawings or samples. Customization may include the finished sheet shape, effective coverage width, forming dimensions, and material thickness range.
Suitable galvanized and pre-painted steel coils can be selected according to the approved equipment specifications. Material grade, coating properties, and thickness should be confirmed before machine manufacturing.
For glazed-style metal roof tiles, customers should also provide the required tile step height and spacing so that the forming and pressing arrangement can be evaluated.
Applications for Roofing Sheet Manufacturers
This equipment is intended for metal roofing sheet manufacturers, building material factories, and businesses planning to expand their roofing product range.
Depending on the approved profile design, finished metal roofing sheets can be supplied for residential houses, villas, commercial buildings, and other architectural roofing projects.
A gearbox-driven forming line may be considered by manufacturers evaluating higher production targets and different mechanical transmission configurations.
What to Confirm Before Ordering
Before purchasing a high speed roof tile roll forming machine, customers should provide their roofing profile drawing, steel thickness range, coil width, finished sheet length, and target production capacity.
For equipment using gearbox transmission and middle plate construction, the final motor configuration, forming station arrangement, transmission design, and production speed should be confirmed in the technical proposal.
Haixing can evaluate these requirements and discuss an equipment configuration suitable for the intended roofing products.
Why Choose Haixing?
Haixing supplies roll forming machinery for metal roofing and construction material manufacturers. Our team supports customers with profile evaluation, machine configuration, manufacturing coordination, factory testing, and technical assistance.
We provide customized machinery solutions based on the customer’s roofing sheet design, material requirements, and production objectives.
Request a High Speed Roof Tile Roll Forming Machine Quotation
Looking for a high speed roof tile roll forming machine with gearbox transmission and middle plate construction?
Contact Haixing with your finished roofing profile drawing, material specifications, and target production capacity. Our team can review your requirements and discuss a customized equipment proposal.
