Corrugated Roof Sheeting Machines For Sale In South Africa

Short Description:

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter


Product Detail

Product Tags

A metal roof is a great choice when protecting your house from the elements. Metal roofs help retain heat and provide the highest level of protection for the elements.

Parameters of corrugated roof sheeting machines for sale in south Africa

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter
6 Mainframe 300/350mm H-beam or 350mm
7 Backboard thickness 16mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8mm
11 Feeding width 1000mm
12 Effective width 850mm
13 Productivity 0-15/min
14 Roll station 13 roll steps (according to different design)
15 Roller diameter 70mm (depends on different design)
16 Roller material 45# steel
17 Cutter material Cr12
18 Cr-plating size 0.05mm
19 Overall size 6800*1400*1150mm
20 Total weight 4.8 tons

Components:

Manual un-coiler: 1 set

Guiding platform: 1 set

Coil strip leveler: 1 set

Main machine of roll forming: 1 set

Electric-motor: 1 set

Cutting device: 1 set

Hydraulic station: 1 set

PLC control: 1 set

Supporter table: 1 set

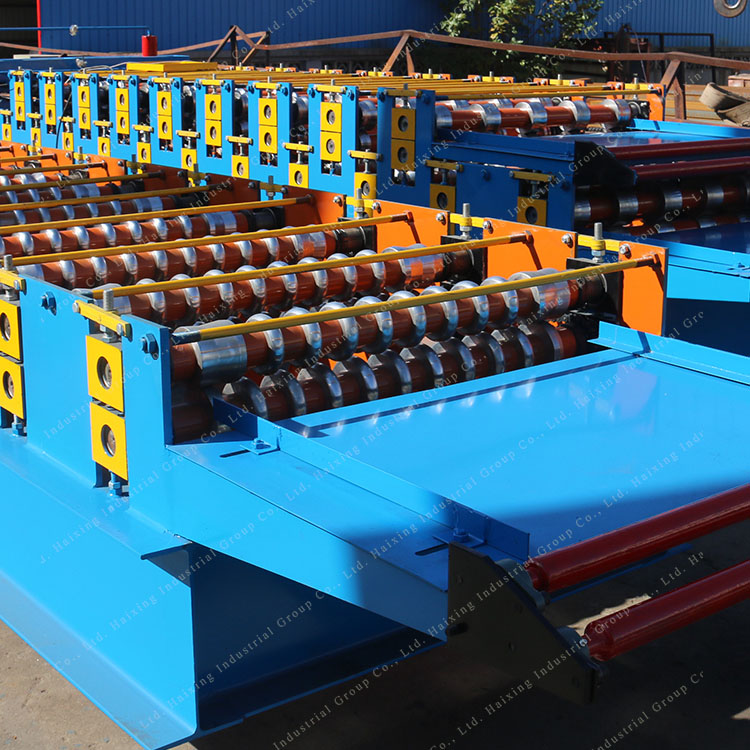

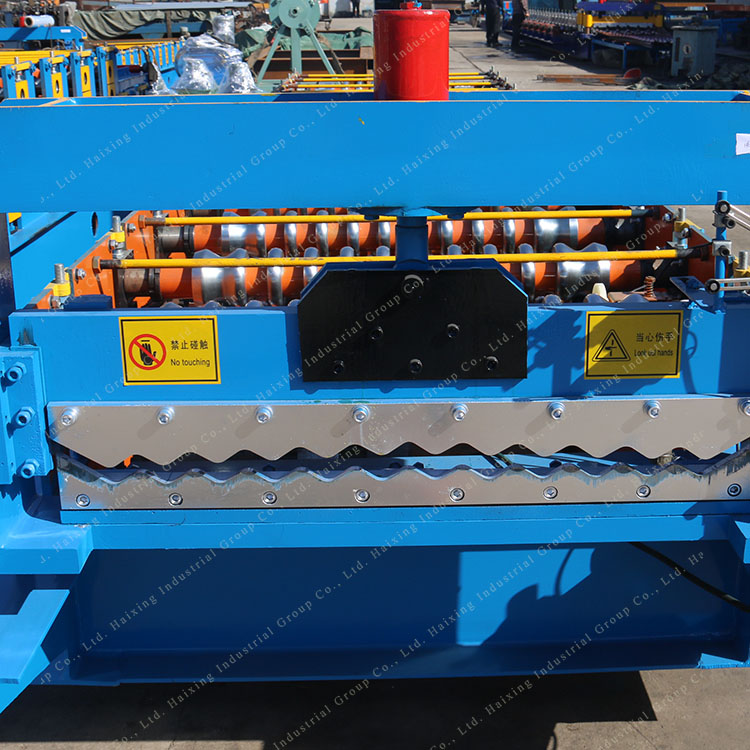

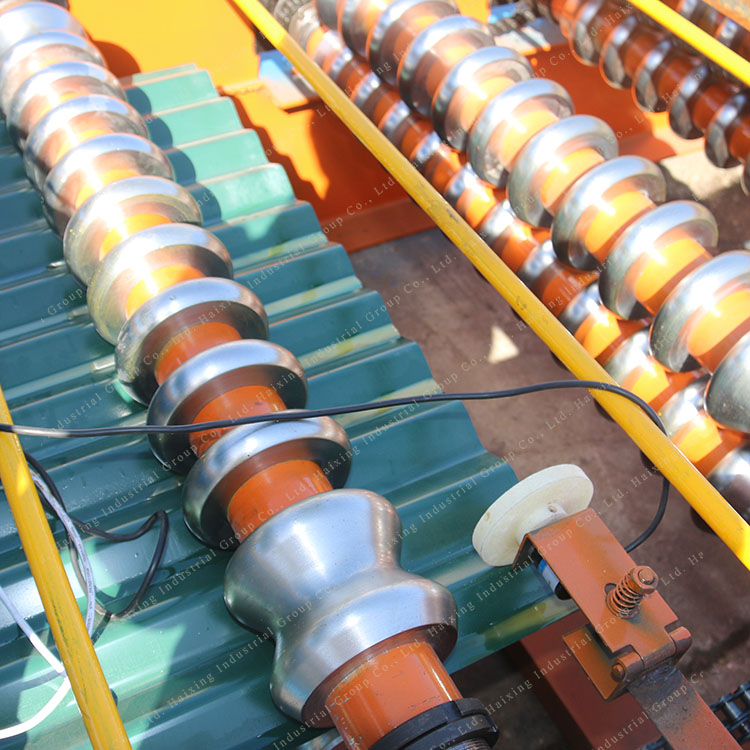

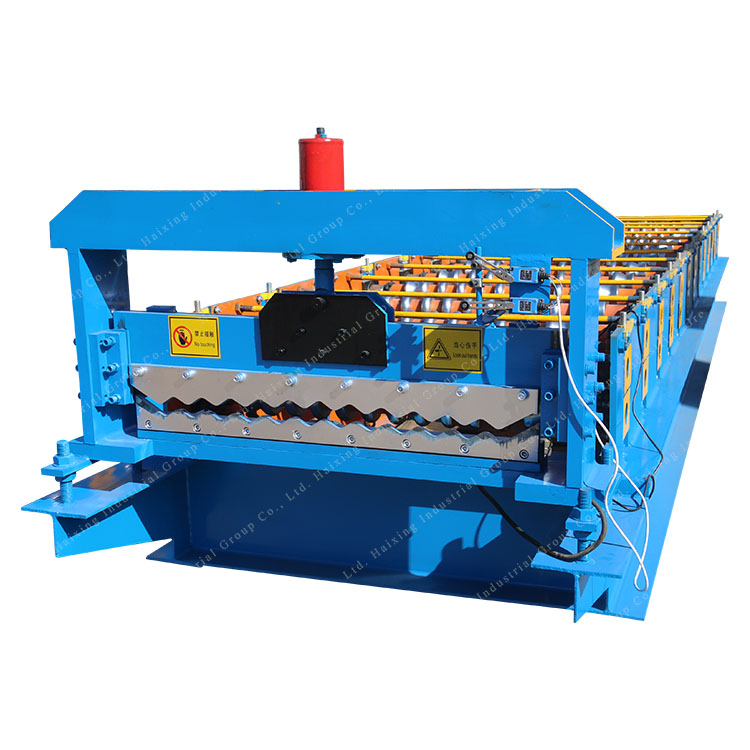

Photos of corrugated roof sheeting machines for sale in south Africa

dsfas ukj

If you have any questions about the model, parameters, etc., please feel free to contact us. We will do our best to answer your questions and look forward to cooperation.
