Gearbox Driven Roof Tile Roll Forming Machine | Haixing
The gearbox driven roof tile roll forming machine from Haixing is designed for manufacturers producing decorative metal roofing sheets. Featuring a gearbox transmission system and middle plate structure, this high-speed equipment provides a dedicated solution for forming metal roof tile profiles from suitable steel coils.
For roofing sheet factories planning to expand production, the transmission arrangement and forming stand construction are important considerations. Haixing offers customized equipment configurations based on the required roofing profile, raw material specifications, and production targets.
Gearbox Transmission for Metal Roofing Production

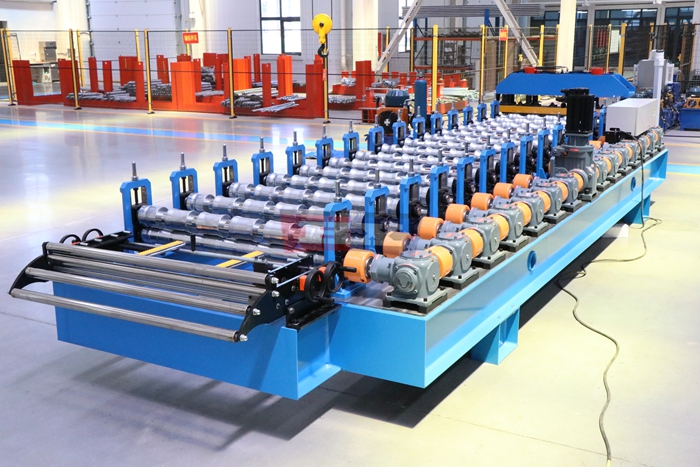

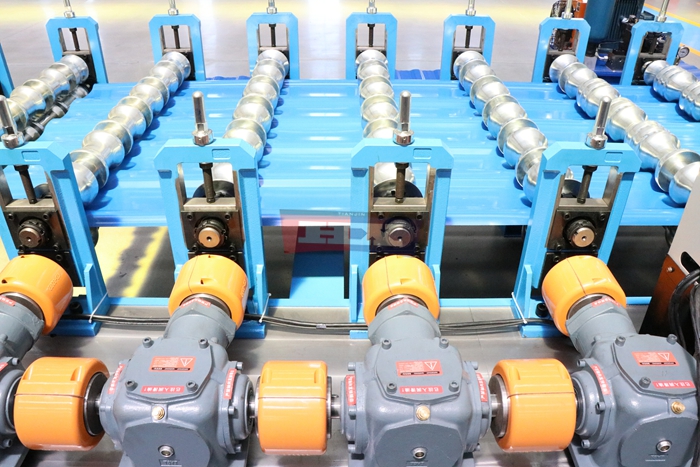

A key feature of this gearbox driven roof tile roll forming machine is its mechanical transmission system. The gearbox arrangement transfers driving power to the roll forming section, allowing the forming stations to operate as part of a coordinated production process.
Unlike a conventional chain-driven arrangement, gearbox transmission uses a different mechanical drive configuration. The appropriate design depends on the machine layout, roofing profile, forming requirements, and target production speed.
Customers should evaluate the gearbox arrangement, motor configuration, and maintenance requirements when comparing roofing sheet production equipment.
Middle Plate Forming Stand Structure

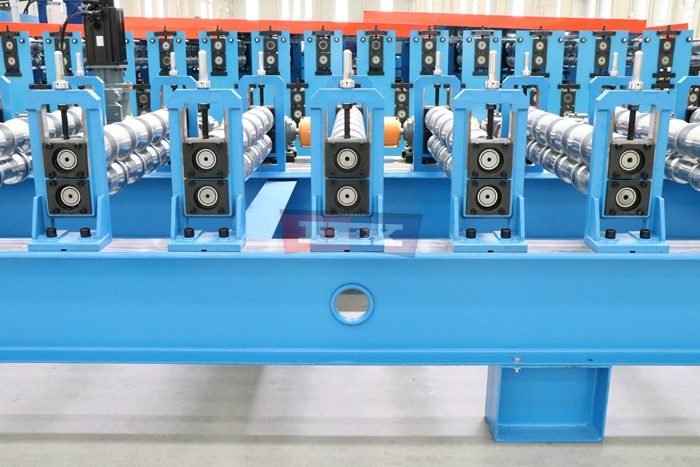

The machine adopts a middle plate structure within its forming section. The supporting plate arrangement is part of the mechanical framework used to position and support forming components.
When selecting a roll forming machine, the forming stands, roller shafts, supporting plates, and transmission system should be evaluated together. Their dimensions and arrangement must match the required material and roofing profile.
Haixing can discuss the middle plate construction and forming station layout according to the customer’s technical requirements.
How the Roof Tile Roll Forming Process Works
A typical production line includes a decoiler, material guiding system, progressive roll forming section, tile profile processing equipment, and cutting unit.
During operation, a steel coil is fed into the forming section. The material passes through a series of rollers that progressively shape it into the required roofing profile.
For glazed-style metal roof tiles, a tile step-pressing system forms transverse steps according to the specified roofing design. The finished sheets are then cut to the required length.
The exact production sequence and equipment arrangement depend on the approved machine configuration.
Custom Metal Glazed Roof Tile Profiles

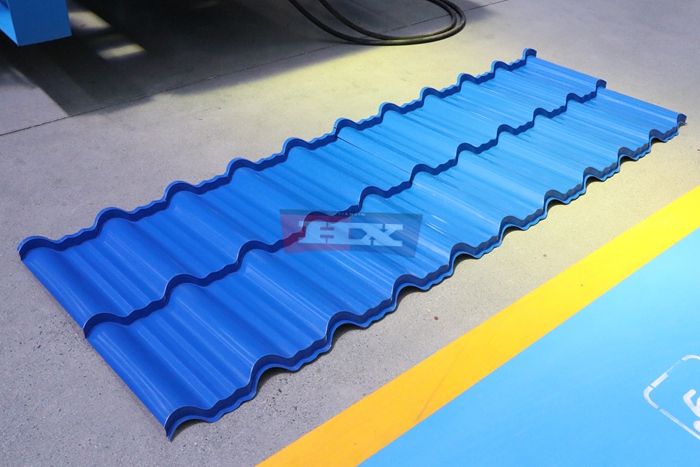

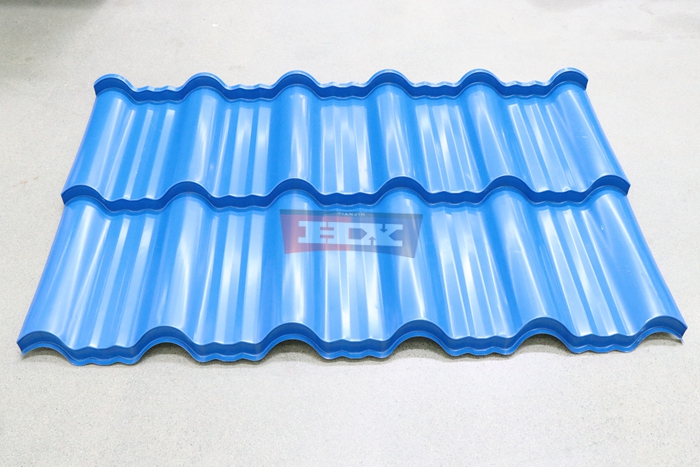

The gearbox driven roof tile roll forming machine can be designed around different metal roofing tile profiles. Customers may specify the finished sheet shape, effective coverage width, tile step height, step spacing, and material thickness range.
Haixing can evaluate roofing tile drawings or physical samples to discuss an appropriate forming roller design and pressing arrangement.
Suitable galvanized and pre-painted steel coils can be considered according to the approved equipment specifications. Material grade, thickness, and coating properties should be confirmed before manufacturing.
Applications and Production Planning
This equipment is intended for metal roofing sheet manufacturers, construction material suppliers, and factories producing decorative roofing panels.
Depending on the finished profile, metal glazed roofing tiles may be used for villas, residential houses, commercial buildings, and architectural roofing projects.
When planning a new production line, manufacturers should consider the required daily output, factory layout, coil handling arrangements, and finished sheet collection requirements.
Technical Information Required for a Quotation
Before purchasing a gearbox driven roof tile roll forming machine, customers should provide the roofing profile drawing, steel thickness range, coil width, finished sheet length, and target production capacity.
For stepped glazed roofing profiles, the tile step height and spacing should also be specified. These details help determine the forming roller arrangement, gearbox transmission configuration, pressing system, and cutting equipment.
The final production speed, motor specifications, and automation functions will be confirmed in the approved technical proposal.
Haixing Customized Roll Forming Solutions
Haixing supplies roll forming equipment for metal roofing and building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, manufacturing coordination, factory testing, and technical assistance.
Whether you are establishing a new roofing sheet factory or upgrading an existing production line, Haixing can discuss a machine configuration based on your roofing products and manufacturing objectives.
Request a Gearbox Driven Roof Tile Machine Quotation
Looking for a gearbox driven roof tile roll forming machine with high-speed production capability and middle plate construction?
Contact Haixing with your roofing tile drawings, steel material specifications, and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
