High Speed Glazed Tile Roll Forming Machine | Haixing

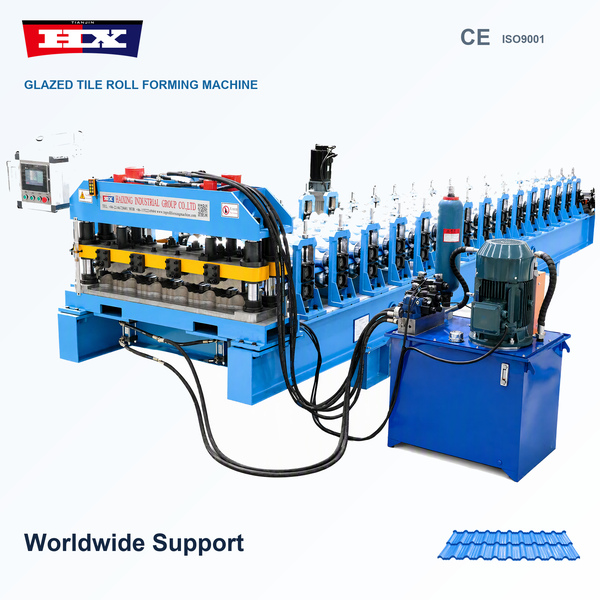

The high speed glazed tile roll forming machine from Haixing is designed for manufacturing decorative metal roofing sheets with traditional glazed tile-style profiles. Featuring gearbox transmission and a middle plate forming structure, this equipment is intended for roofing manufacturers seeking a high-speed production configuration.

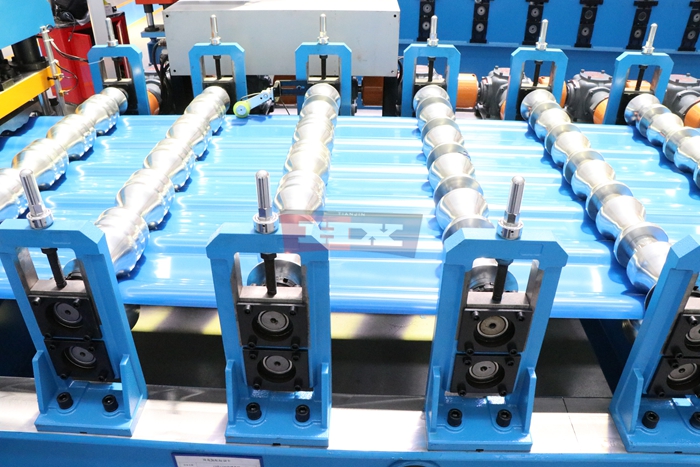

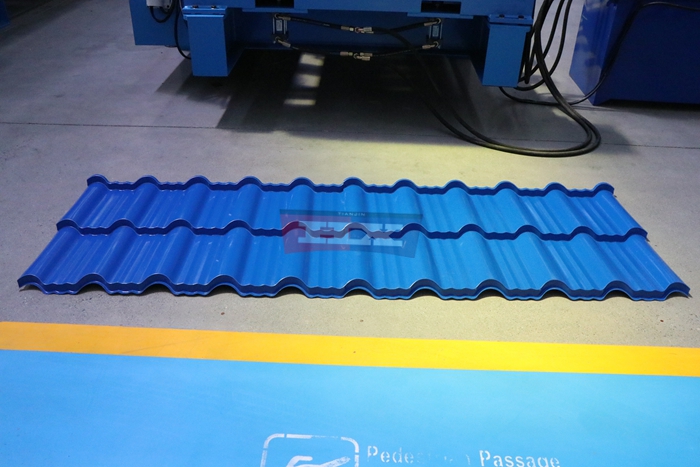

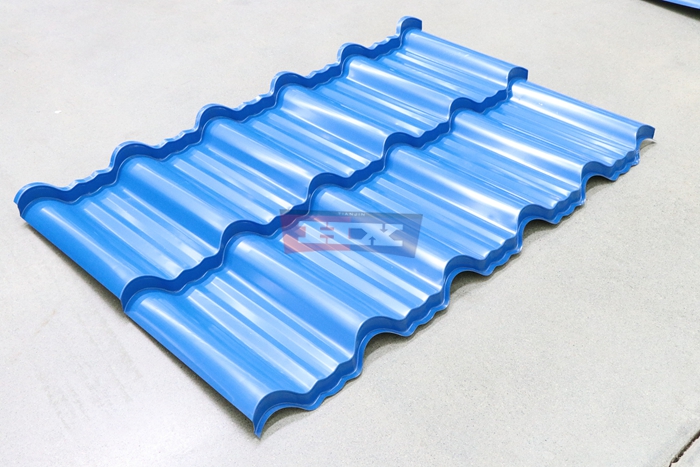

Metal glazed roof tiles are produced from suitable coated steel coils through progressive roll forming and tile step pressing. The finished roofing sheets feature decorative transverse steps that create a traditional roof tile appearance.
Haixing offers customized equipment configurations according to customers’ roofing drawings, steel material specifications, and production requirements.
High-Speed Gearbox Transmission System

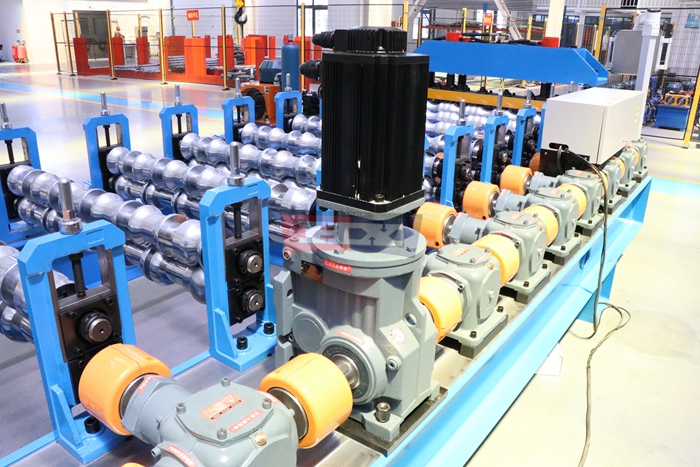

One of the main features of this high speed glazed tile roll forming machine is its gearbox-driven transmission arrangement. The gearbox system transfers driving power to the forming section and supports coordinated operation of the roll forming stations.
Transmission design is an important consideration for manufacturers evaluating production capacity, mechanical configuration, and equipment maintenance. Gearbox transmission provides an alternative to conventional chain-driven roll forming systems.
The final gearbox arrangement, motor specifications, and achievable forming speed depend on the approved roofing profile and machine design.
Middle Plate Structure and Forming Stations
The machine adopts a middle plate structure as part of its roll forming assembly. This arrangement supports the forming components and contributes to the overall mechanical layout of the production line.
The forming stand design, roller shafts, supporting plates, and transmission components should be considered together when evaluating a machine for specific steel thicknesses and roofing profiles.
Haixing can discuss the forming station arrangement and machine structure according to customers’ technical requirements.
Metal Glazed Roof Tile Manufacturing Process

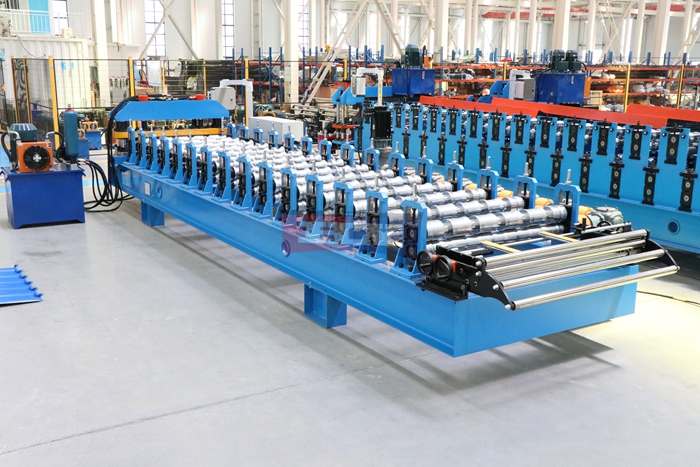

A typical high speed glazed tile roll forming machine production line includes a decoiler, material guiding section, progressive roll forming system, tile step-pressing equipment, and cutting unit.
During production, the steel coil is fed into the forming section, where successive roller stations gradually shape the material into the required roofing profile. The tile pressing system then creates transverse steps according to the specified roofing design.
The formed roofing panels are cut to the required finished length. The actual pressing and cutting sequence depends on the approved equipment configuration.
Customized Glazed Roofing Tile Profiles
Different roofing markets require different decorative tile patterns and dimensions. Manufacturers may specify the finished tile shape, step height, step spacing, effective coverage width, and steel thickness range according to their intended products.
Haixing can review customers’ roofing drawings or physical samples before discussing a suitable machine configuration. The forming roller design, tile pressing arrangement, and supporting equipment can be planned according to the required profile dimensions.
Suitable galvanized and pre-painted steel coils can be considered within the approved machine specifications.
Applications and Production Planning
This equipment is intended for metal roofing sheet factories, building material manufacturers, and businesses expanding their decorative roofing product ranges.
Depending on the finished profile design, metal glazed roof tiles may be used for villas, residential buildings, commercial properties, and architectural roofing projects.
Manufacturers should evaluate their target production capacity, factory layout, material handling requirements, and finished sheet collection arrangements when planning a new production line.
Technical Requirements for Machine Selection
Before purchasing a high speed glazed tile roll forming machine, customers should provide the finished roofing profile drawing, steel thickness range, coil width, tile step height, step spacing, finished sheet length, and expected production capacity.
These details influence the forming roller arrangement, gearbox transmission configuration, tile pressing system, and cutting equipment. Final production speed, motor power, and automation functions are confirmed according to the approved technical proposal.
Haixing Customized Roll Forming Solutions
Haixing supplies roll forming equipment for metal roofing and construction material manufacturers. Our team supports customers with roofing profile evaluation, machine configuration discussions, equipment manufacturing, factory testing, and technical assistance.
Whether you are establishing a new decorative roofing tile factory or upgrading an existing production line, Haixing can discuss equipment solutions according to your manufacturing requirements.
Request a High Speed Glazed Tile Machine Quotation
Looking for a high speed glazed tile roll forming machine with gearbox transmission and middle plate construction?
Contact Haixing with your roofing tile drawing, steel material specifications, and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
