High Speed Metal Roof Tile Machine with Gearbox Drive | Haixing
The high speed metal roof tile machine from Haixing is developed for manufacturers producing decorative steel roofing sheets with glazed tile-style profiles. This equipment features a gearbox-driven transmission system and middle plate forming structure, providing a dedicated configuration for metal roof tile production.
For roofing material factories, selecting the appropriate roll forming machine involves more than choosing a finished tile pattern. Transmission design, forming station structure, steel specifications, and production targets all influence the final equipment configuration.
Haixing provides customized metal roofing machinery solutions based on customers’ profile drawings and manufacturing requirements.

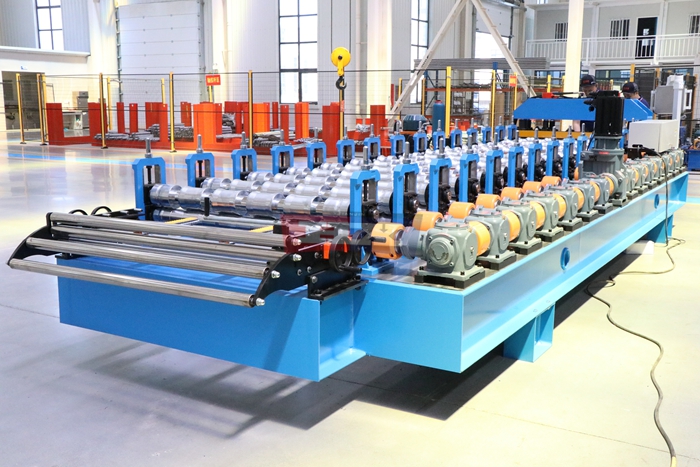

Gearbox Drive for High-Speed Roof Tile Production
The high speed metal roof tile machine uses a gearbox transmission arrangement to deliver driving power to the roll forming section. The transmission system is designed as part of the overall forming line, with the gearbox, motor, roller shafts, and forming stations working together.
Compared with conventional chain-driven configurations, gearbox transmission provides a different mechanical arrangement for transmitting power between machine components. Its suitability depends on the required roofing profile, steel thickness, equipment layout, and production objectives.
The actual forming speed and motor configuration are determined by the approved machine specifications.
Middle Plate Forming Structure
The machine incorporates a middle plate structure within its roll forming assembly. This arrangement provides a mechanical framework for positioning and supporting the forming components.
The forming stand construction, roller shaft dimensions, support plates, and transmission arrangement should be evaluated together when specifying a machine for a particular roofing profile.
Haixing can discuss the middle plate forming design according to the customer’s material requirements and intended roofing products.

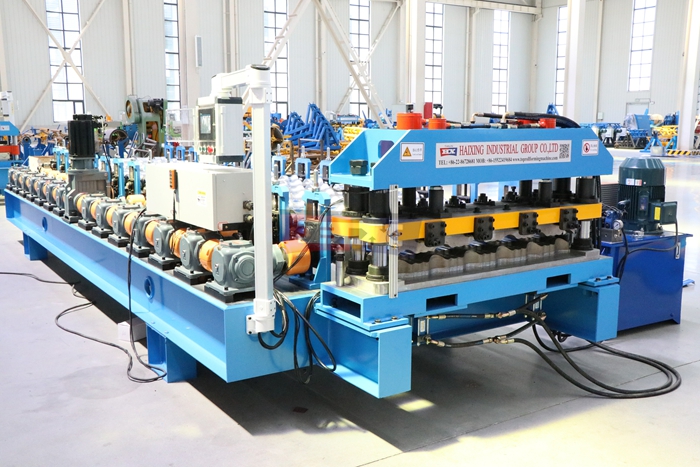

Glazed Metal Roof Tile Forming Process
A typical metal roof tile production line includes a decoiler, material guiding section, progressive roll forming system, tile step-pressing unit, and cutting equipment.
The steel coil passes through multiple forming stations, where the rollers gradually shape the material into the required longitudinal roofing profile. For glazed-style metal roof tiles, a pressing unit forms transverse steps to create the decorative tile pattern.
After forming and pressing, the roofing panels are cut to the required length. The actual sequence and supporting equipment depend on the approved production line design.
Custom Roof Tile Profiles and Steel Materials
Different markets require different metal roof tile dimensions and decorative patterns. The high speed metal roof tile machine can be configured according to customers’ roofing drawings, including the finished profile shape, effective coverage width, tile step height, step spacing, and required material thickness.
Suitable galvanized and pre-painted steel coils can be considered within the approved machine specifications. The material grade, thickness range, and coating properties should be confirmed before equipment manufacturing.
Providing accurate profile drawings and material information helps Haixing evaluate the forming roller design, pressing arrangement, and suitable machine configuration.
Applications for Metal Roofing Manufacturers
This equipment is suitable for roofing sheet manufacturers, building material factories, and businesses expanding their decorative metal roofing product ranges.
Depending on the finished tile profile, the roofing sheets can be used for residential houses, villas, commercial properties, and architectural roofing projects.
Manufacturers planning to introduce a high-speed production line should consider factory space, steel coil handling, finished sheet collection, and their required production capacity.
Machine Selection and Technical Requirements
Before ordering a high speed metal roof tile machine, customers should provide the finished roofing profile drawing, steel thickness range, coil width, tile step dimensions, required sheet length, and target production capacity.
These details influence the forming roller arrangement, gearbox transmission configuration, pressing system, and cutting equipment. The final production speed, motor power, and automation functions are confirmed in the approved technical proposal.
Haixing Metal Roofing Equipment Solutions
Haixing supplies roll forming machinery for metal roofing and construction material manufacturers. Our team supports customers with profile evaluation, machine configuration, equipment manufacturing, factory testing, and technical assistance.
Whether you are establishing a new roofing sheet factory or expanding an existing production facility, Haixing can discuss suitable equipment solutions based on your production requirements.
Request a High Speed Metal Roof Tile Machine Quotation
Looking for a high speed metal roof tile machine with gearbox transmission and middle plate construction?
Contact Haixing with your roofing tile drawing, steel material specifications, and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
