High Speed Roof Tile Making Machine with Gearbox Drive | Haixing

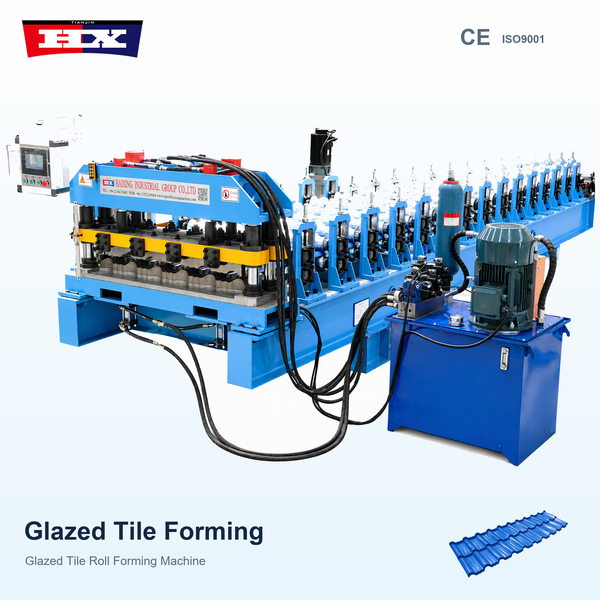

The high speed roof tile making machine from Haixing is designed for manufacturing decorative metal roofing sheets with glazed tile-style profiles. Featuring a gearbox-driven transmission system and middle plate forming structure, this equipment provides a production solution for roofing sheet manufacturers seeking a high-speed roll forming configuration.
The machine processes suitable galvanized or pre-painted steel coils into metal roofing panels with decorative tile patterns. Its forming system can be configured according to the required finished profile, material specifications, and production capacity.
Gearbox Transmission for High-Speed Production

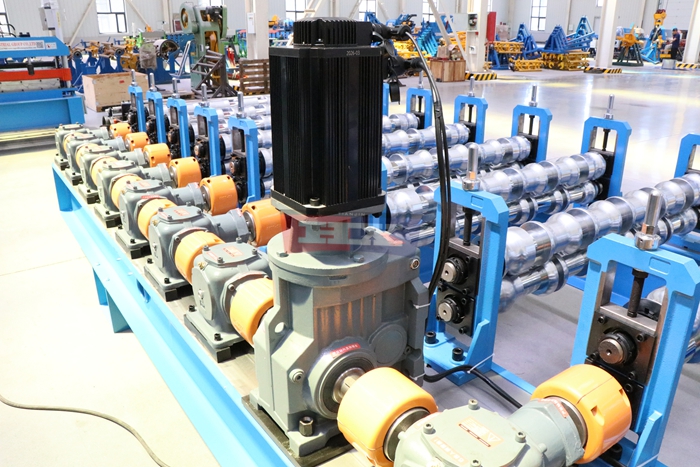

The high speed roof tile making machine uses a gearbox transmission system to deliver driving power to the forming section. The gearbox arrangement is integrated with the motor, forming shafts, and roller stations to support the roll forming process.
Compared with conventional chain-driven equipment, gearbox transmission provides a different mechanical drive arrangement. The appropriate configuration depends on the roofing profile, steel thickness, machine layout, and expected production requirements.
The final production speed, gearbox configuration, and motor specifications are determined according to the approved technical design.
Middle Plate Forming Stand Structure

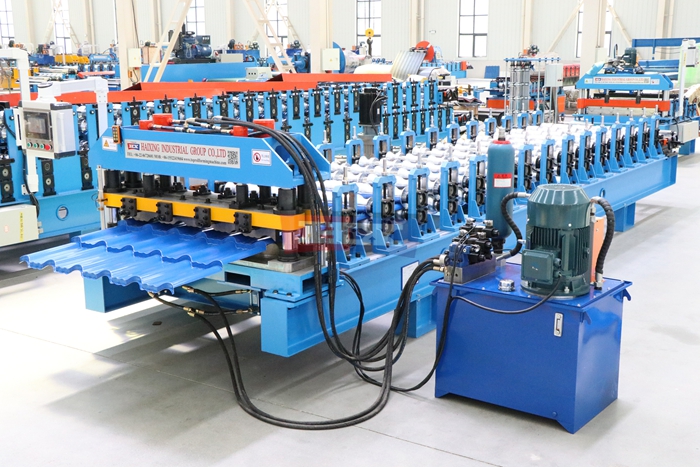

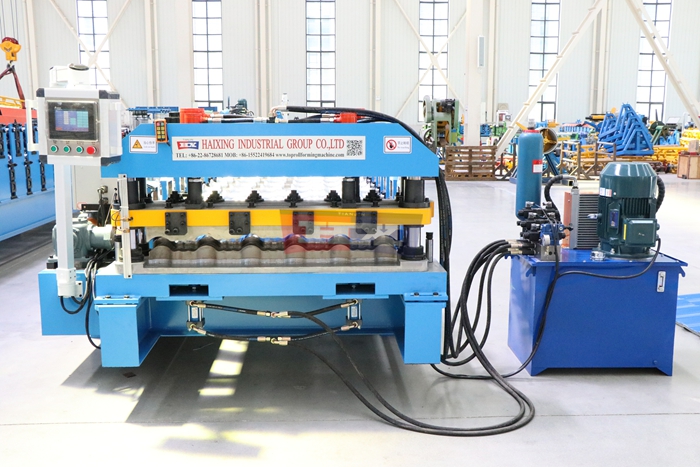

The machine features a middle plate structure as part of its roll forming assembly. This structural arrangement supports and positions the forming components within the production line.
The forming stands, roller shafts, support plates, and gearbox transmission system are considered together when designing equipment for a specific roofing profile.
Haixing can discuss the forming station layout and machine construction according to the customer’s material specifications and intended roofing products.
Metal Glazed Roof Tile Manufacturing Process

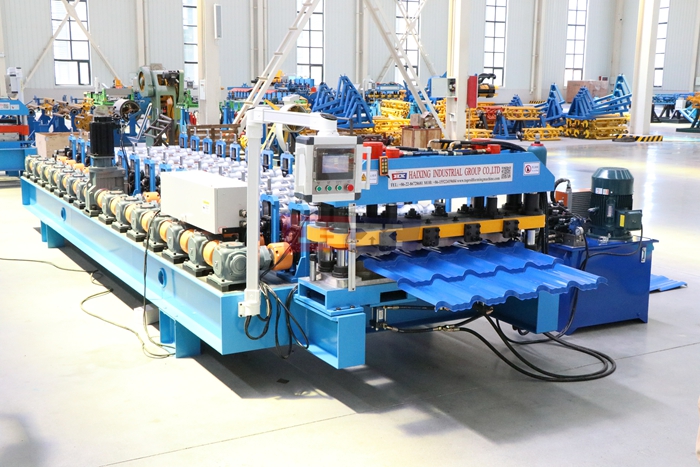

A typical metal roof tile production line includes a decoiler, material guiding section, progressive roll forming system, tile step-pressing equipment, and cutting unit.

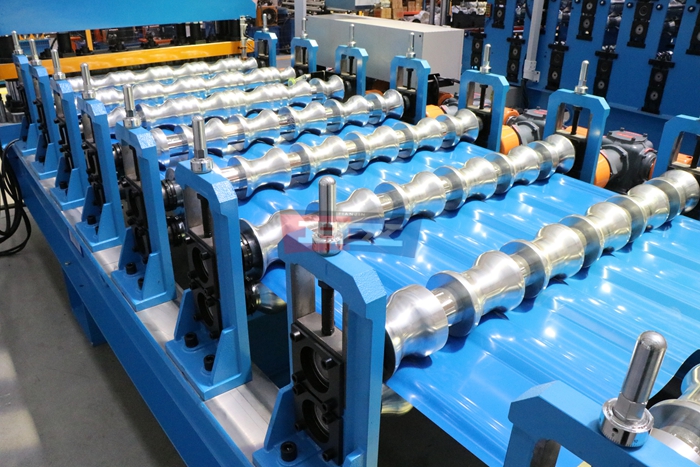

During production, the steel coil is fed through successive forming stations. Each roller station gradually shapes the material into the required longitudinal roofing profile.

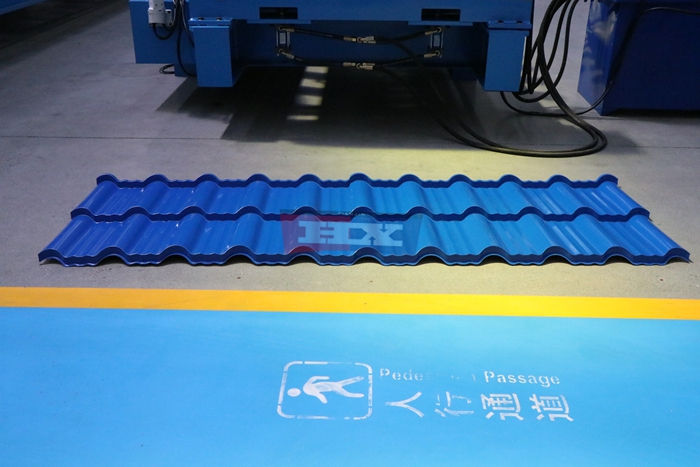

For glazed-style metal roof tiles, a pressing unit creates transverse tile steps according to the specified dimensions. The finished roofing sheets are then cut to the required length.
The exact pressing and cutting sequence depends on the final equipment configuration.
Custom Roofing Tile Profiles and Materials

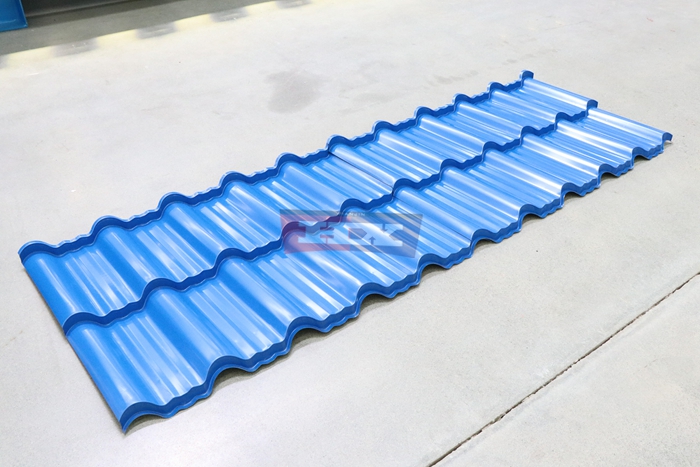

The high speed roof tile making machine can be configured for different decorative metal roofing profiles. Customers may specify the finished sheet shape, effective coverage width, tile step height, step spacing, and material thickness range.
Haixing can review customers’ roofing profile drawings or physical samples before discussing a suitable forming roller design and tile pressing arrangement.
Suitable galvanized and pre-painted steel coils can be considered within the approved machine specifications. Material grade, thickness, and coating requirements should be confirmed before equipment manufacturing.
Applications for Roofing Sheet Manufacturers
This equipment is intended for roofing sheet manufacturers, construction material factories, and businesses expanding their decorative metal roofing product ranges.
Depending on the finished profile design, metal glazed roofing sheets may be used for residential houses, villas, commercial properties, and architectural roofing projects.
Manufacturers should evaluate their target production capacity, factory layout, material handling arrangements, and finished sheet collection requirements when planning a production line.
Technical Requirements for Machine Selection
Before purchasing a high speed roof tile making machine, customers should provide the finished roofing profile drawing, steel thickness range, coil width, tile step dimensions, required sheet length, and target production capacity.
These details influence the forming roller arrangement, gearbox transmission configuration, tile pressing system, and cutting equipment. The final forming speed, motor power, and automation functions are confirmed in the approved technical proposal.
Haixing Customized Roofing Machinery Solutions
Haixing supplies roll forming machinery for metal roofing and construction material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing, and technical assistance.
Whether you are establishing a new roofing sheet factory or expanding an existing production facility, Haixing can discuss suitable equipment solutions based on your manufacturing requirements.
Request a High Speed Roof Tile Making Machine Quotation
Looking for a high speed roof tile making machine with gearbox transmission and middle plate construction?
Contact Haixing with your roofing tile drawing, steel material specifications, and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
