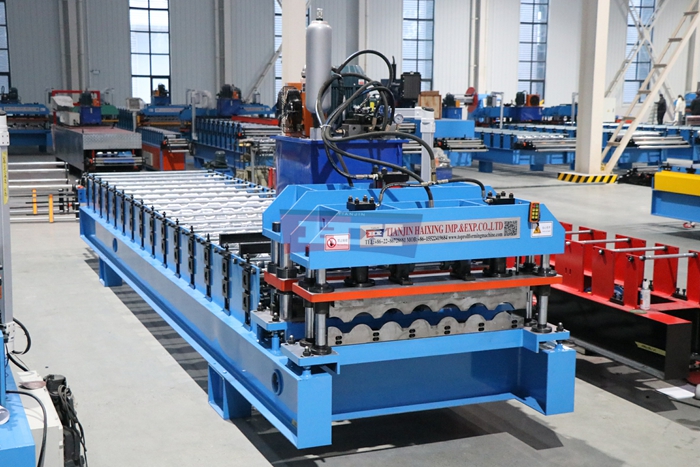

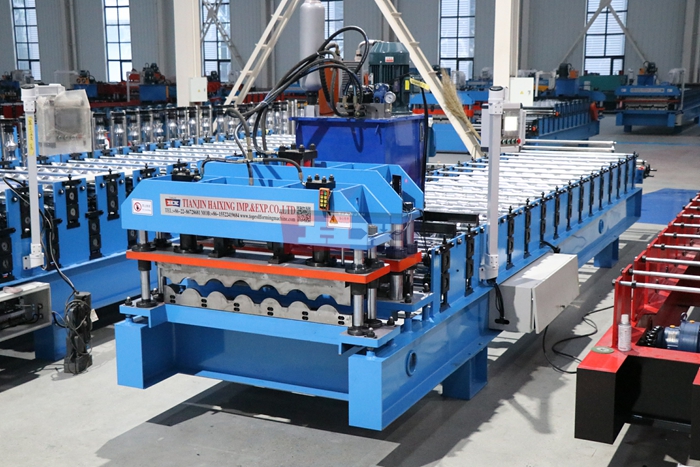

Steel Roof Tile Roll Forming Machine | Haixing
The steel roof tile roll forming machine from Haixing is designed for producing decorative metal roofing sheets with traditional glazed tile-style profiles. It processes galvanized and pre-painted steel coils into stepped roofing panels suitable for residential, commercial, and architectural roofing applications.
For roofing material manufacturers, steel roof tile production offers an opportunity to supply decorative roofing products in different colors, profiles, and finished lengths. Haixing provides customized roll forming equipment solutions according to customers’ roofing tile drawings, raw material specifications, and production objectives.
Steel Roof Tile Roll Forming Process

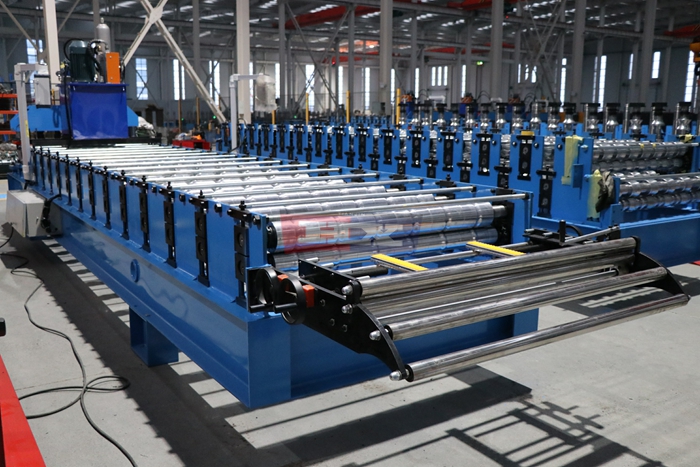

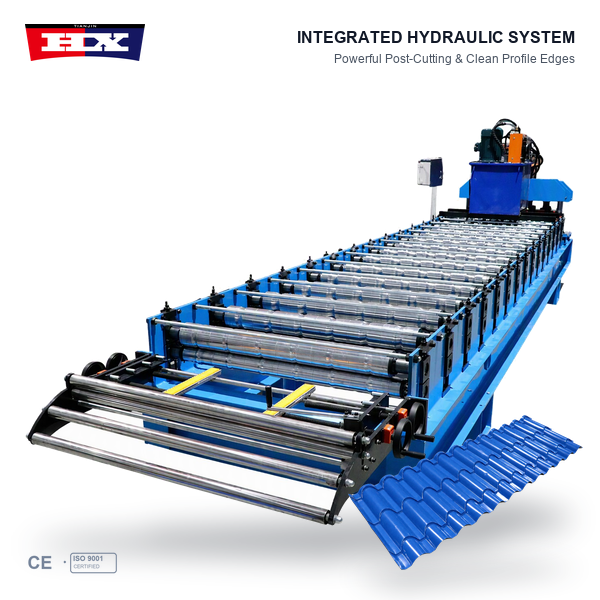

A typical steel roof tile roll forming machine production line includes a decoiler, material guiding section, progressive roll forming system, tile step-pressing unit, and cutting equipment.

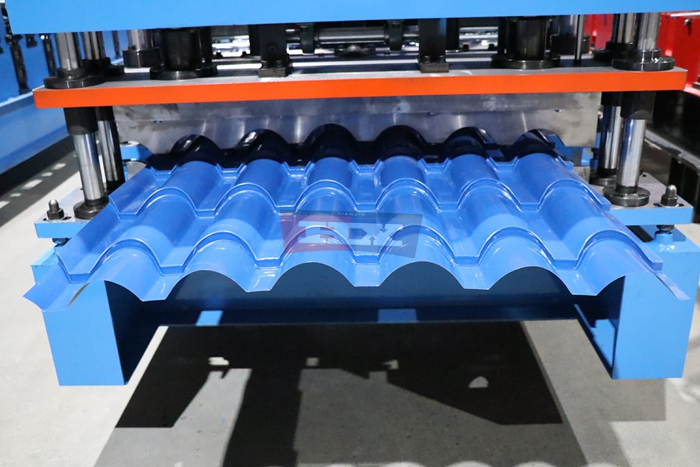

During production, the steel strip passes through forming rollers that gradually shape the material into the required roofing profile. A tile pressing system creates transverse steps at specified intervals, giving the finished roofing sheet its distinctive tile-style appearance.
The formed steel roofing panel is then cut to the required length. The actual forming sequence, pressing arrangement, and cutting method depend on the approved equipment design.

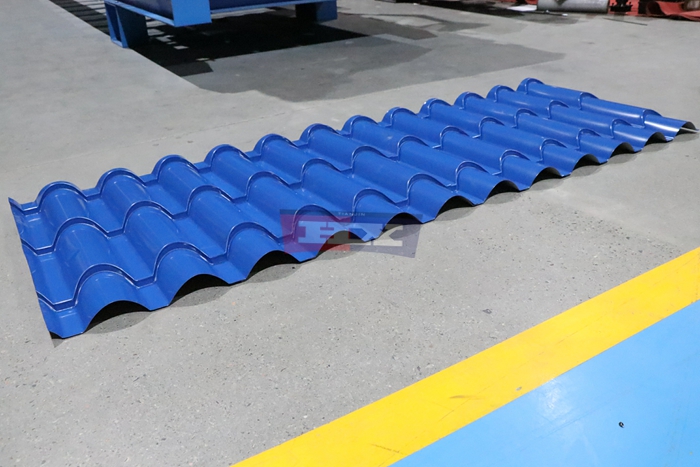

Customized Glazed Steel Roofing Profiles
Different roofing markets require different decorative tile designs and dimensions. Manufacturers may specify the tile profile shape, step height, step spacing, effective coverage width, and material thickness range according to their target roofing products.
Haixing can evaluate customers’ finished roofing tile drawings or physical samples before discussing a suitable machine configuration. The forming roller arrangement and tile pressing system can be planned around the required profile dimensions.
Accurate drawings and material specifications help determine an appropriate steel roof tile roll forming machine solution for the intended finished products.
Suitable Materials for Steel Roofing Tiles
The steel roof tile roll forming machine can be configured for suitable galvanized and pre-painted steel coils within the approved thickness range. Material selection should consider the required roofing profile, coating specifications, and intended installation environment.
Pre-painted steel provides different color and surface finish options, allowing roofing manufacturers to supply decorative roofing products for different architectural designs.
Customers should confirm the intended steel grade, material thickness, and coil width before finalizing the equipment design.
Applications of Decorative Steel Roof Tiles
Finished roofing sheets produced by a steel roof tile roll forming machine can be used for villas, residential houses, commercial properties, and decorative architectural roofing projects.

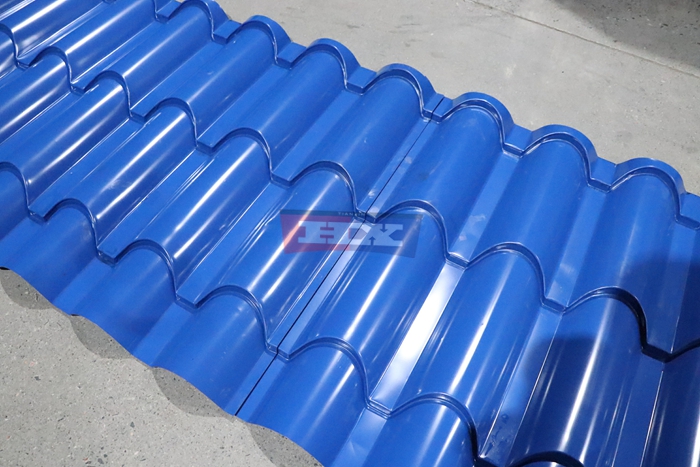

The stepped tile-style profile creates a traditional roofing appearance, while coated steel provides options for different colors and surface finishes.
For building material suppliers, producing decorative steel roofing tiles in-house provides flexibility when handling orders with different roofing profiles, finished lengths, and quantities.
Machine Configuration and Technical Requirements
Before purchasing a steel roof tile roll forming machine, customers should confirm the finished tile drawing, raw material thickness range, coil width, tile step height, step spacing, finished sheet length, and expected production capacity.
These specifications influence the forming roller design, tile pressing arrangement, cutting equipment, and supporting components. Production speed and control functions are confirmed according to the approved machine configuration.
Haixing Metal Roofing Equipment Solutions
Haixing supplies roll forming machinery for metal roofing and construction material manufacturers. Our team supports customers with roofing profile evaluation, equipment configuration discussions, machine manufacturing, factory testing, and technical assistance.
Whether you are establishing a new decorative roofing tile factory or expanding an existing production facility, Haixing can discuss suitable equipment solutions according to your required finished roofing products.
Request a Steel Roof Tile Roll Forming Machine Quotation
If you are planning to manufacture decorative steel roofing tiles, contact Haixing with your roofing tile drawing, material thickness range, coil width, tile step dimensions, and target production capacity.
Our team can review your requirements and discuss a suitable steel roof tile roll forming machine configuration. Contact Haixing to request a customized equipment proposal and quotation.
