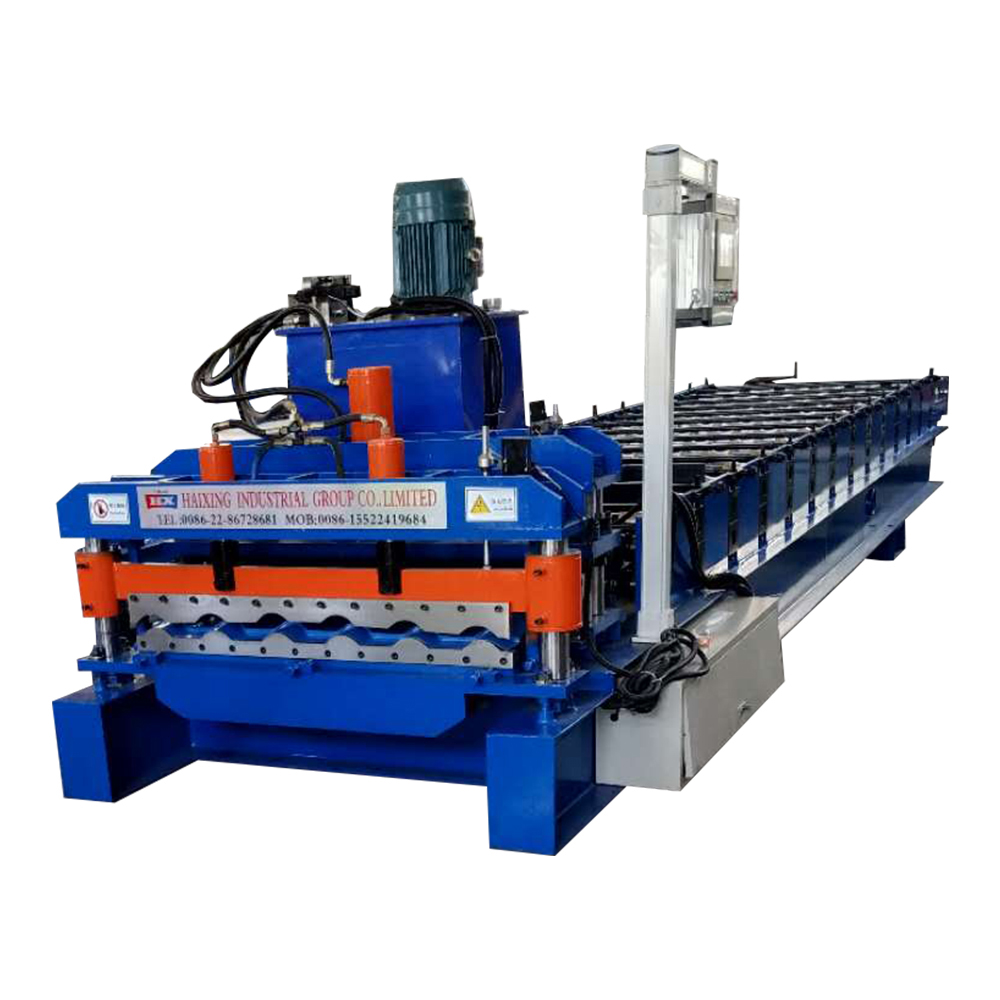

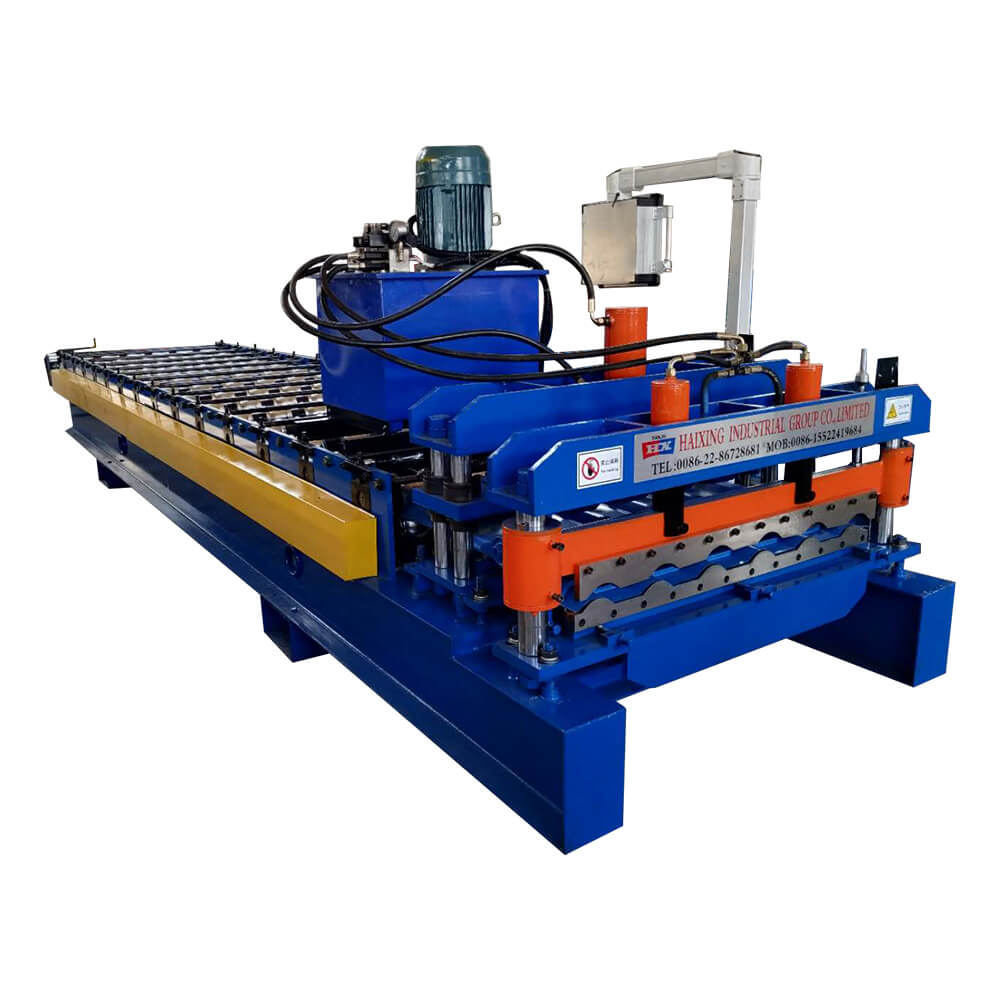

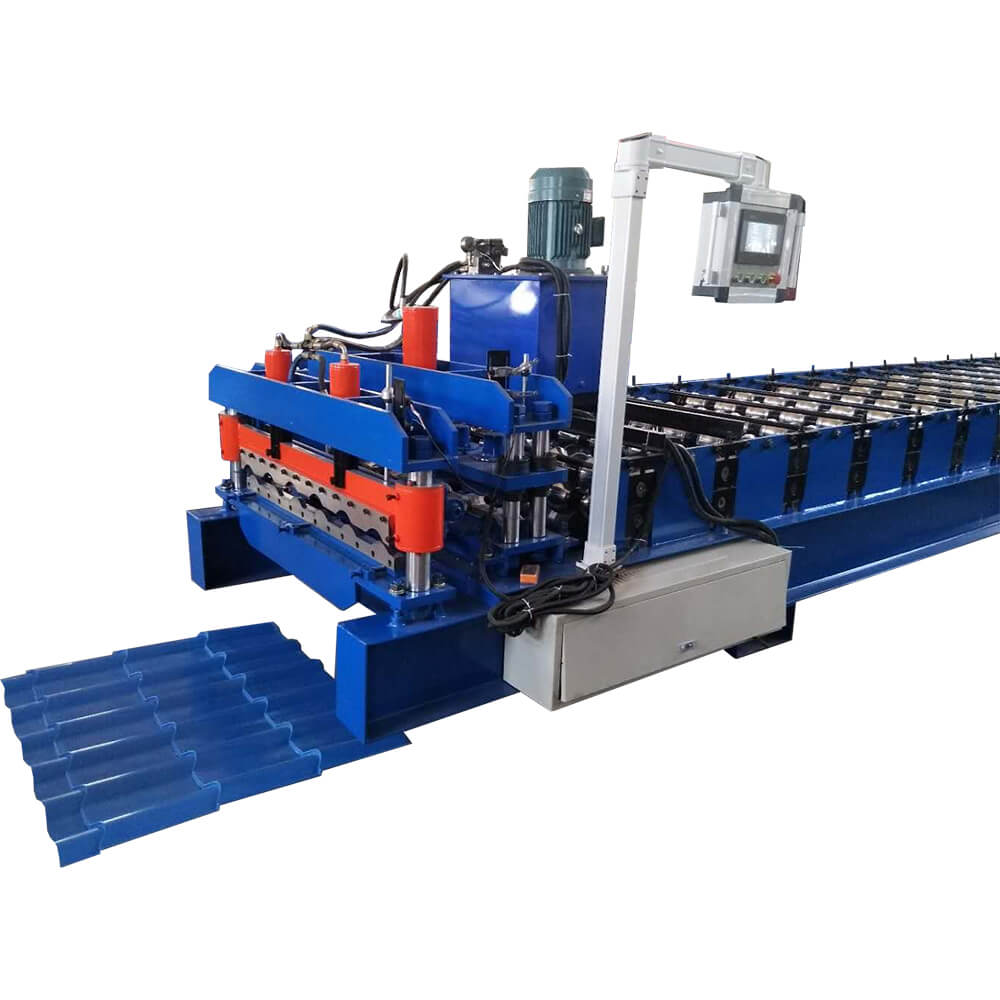

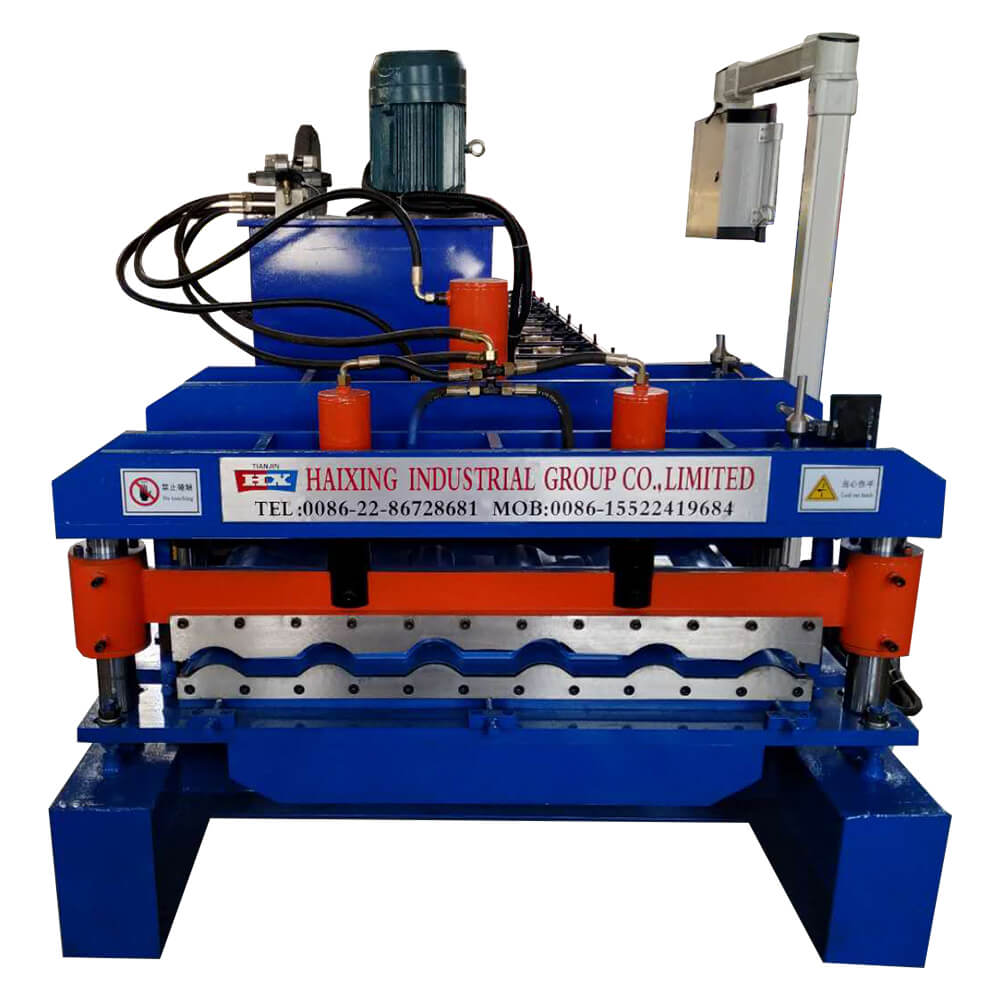

Color Steel Glazed Tiles Roof Panel Making Machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Machine production process

    Packaging & Delivery

    FAQS

    Product Tags

    Color Steel Glazed Tiles Roof Panel Making Machine quick details

    Shearing knife Cr12 / Cr12MOV, heat treatment, HRC 58-60℃
    Cr-plating size: 0.05 mm

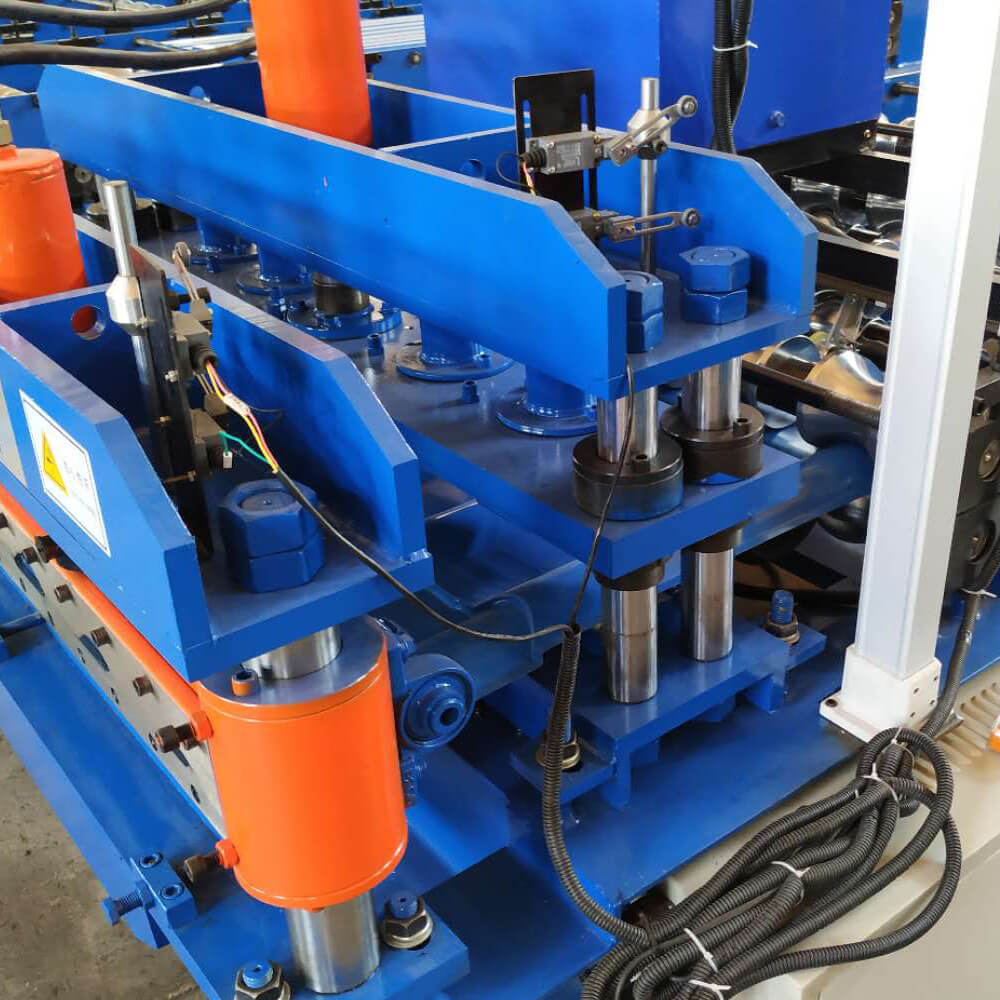

    Cutting method Hydraulic guide column cutting; Hydraulic connecting rod cutting; Electric cutting; Servo motor tracking cutting

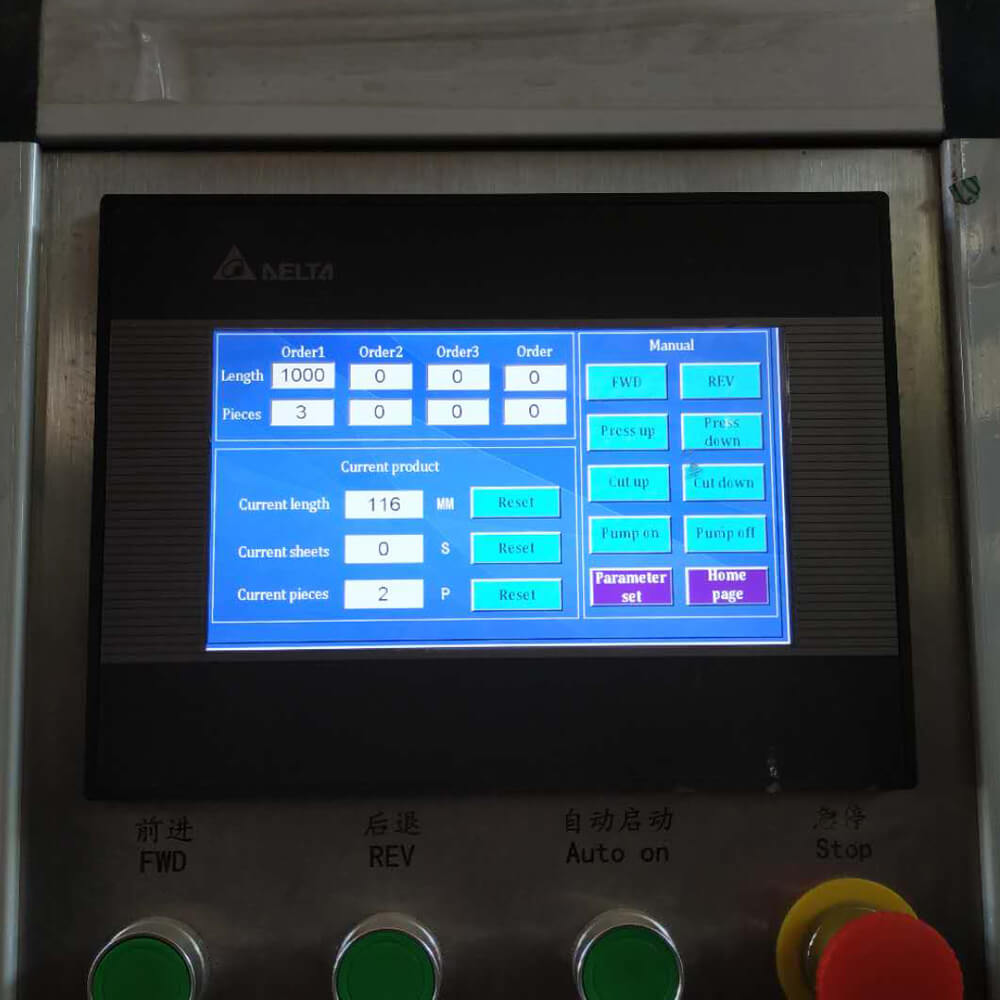

    Control System PLC Control System, 360-degree rotation
    PLC Display languages Chinese, English, (Spanish or Russian)
    Raw material Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Aluminum steel coil/ Stainless steel coil
    Feeding thickness 0.3-1.0mm(Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Stainless steel coil); 0.3-1.5mm (Aluminum steel coil)
    1000 glazed roof8
    1000 glazed roof9
    1000 glazed roof10
    1000 glazed roof7

    Productivity for glazed roof sheet forming machine
    Hydraulic shearing, electric shearing: 1.5-3m/min;

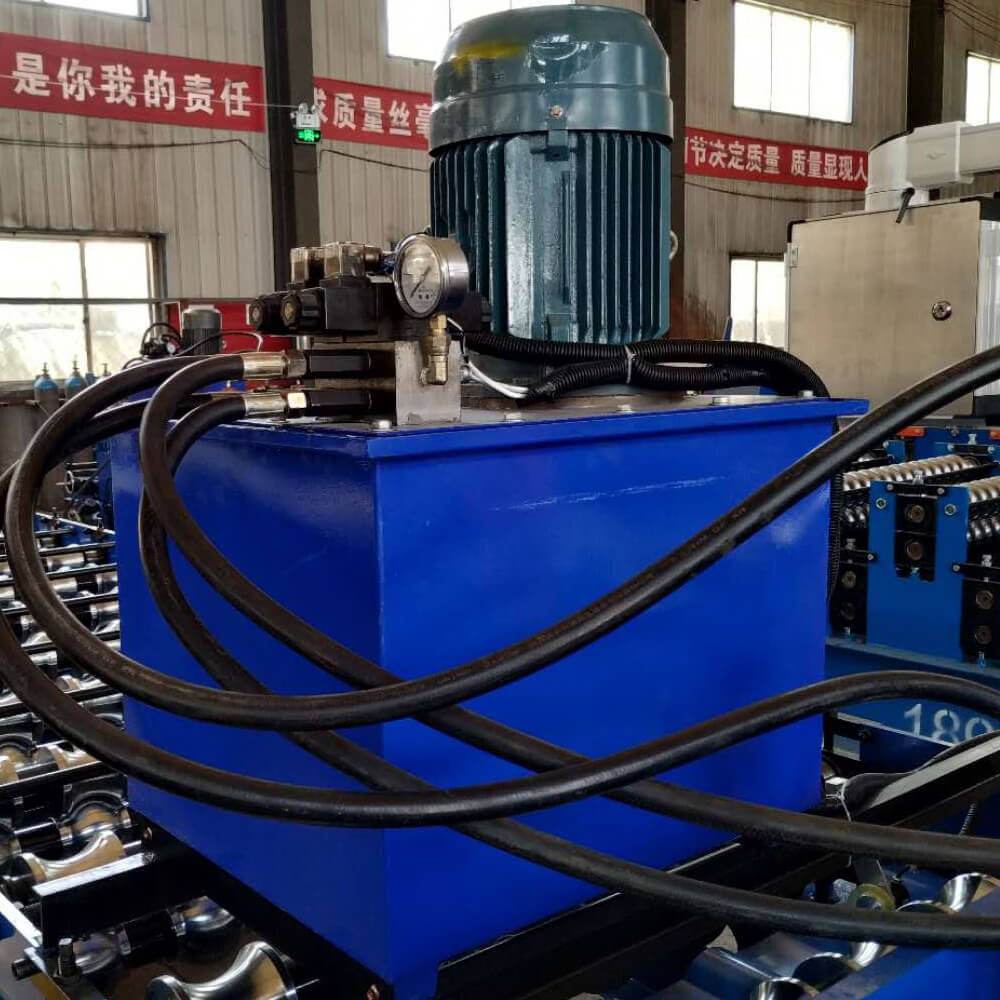

    Hydraulic motor drive: 4-6m/min
    Servo motor shearing: 6-10m/min

    Color steel roof roll forming machine part details

    roof machine details

    01. Mainframe: GB H steel, hard texture.

    02. Operator station: 360-degree rotation display.

    03. Cutter: The main material is Cr12, which has high hardness.

    04. Retaining pad: Prevent the nut from loosening.

    05. Easy hanging: Prevent the machine from scratching during the movement.

    06. Wheel: generally 45# steel, good hardness.

    07. Travel switch: Limit the position or travel of the machine.

    08. Rear hand knife: cut in advance to prevent waste.

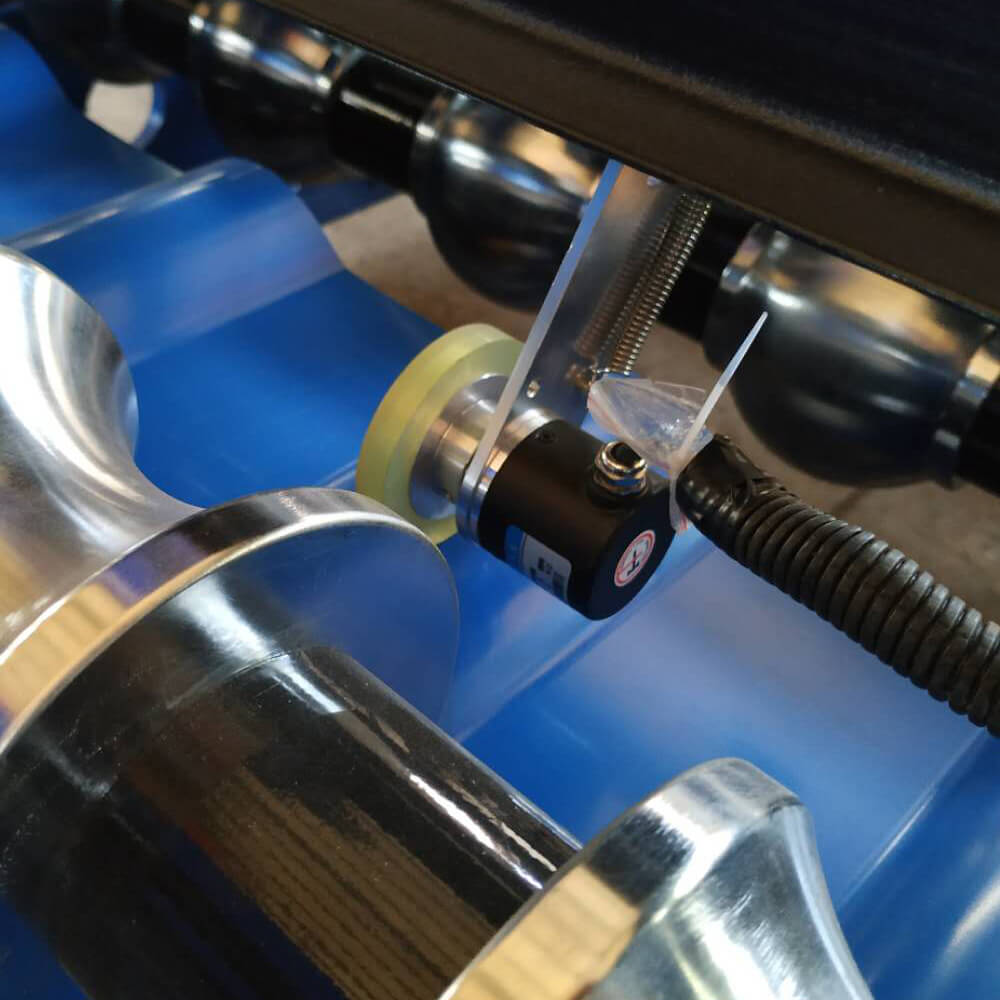

    09. Resin wheel: used to record the length of discharge and record data is more accurate.

    10. Electric control cabinet: The main brands are Panasonic / Siemens / Schneider / Delta PLC

    Why choose us?

    Our company has a professional team of engineers and export team.
    Engineer: 25;
    Factory workers: 88;
    Finance staff: 2;
    Purchasing staff: 12;
    Operator: 3;
    Sales staff: 8;
    After-sales staff: 5.

    Our machine is warranted for 24 months.
    During the warranty period, if the damaged part cannot be repaired, we can send the new part for replacement of the damaged part for free, but you will need to pay the courier fee yourself. If after the warranty period, we can negotiate to resolve the issue and provide technical support throughout the life of the device.

    We offer technical support for the entire life of our machines.

    We can send our technicians to install and train the workers in the clients' factories.


  • Previous:
  • Next:

  • Drawing confirmation

    ——After confirming the final profile with the customer, the team of 12 engineers worked out detail workable parts CAD drawings;

    ——After 5 recheck, the production manager arrangement the material for all machine parts;

    Start production

    ——Our company owns 12sets rough lathe machine, 20sets precise lathe machine, and 30sets shearing machine, all machine parts start to manufacture.

    Product Inspection

    ——Our company Own 3sets hard test machine, and 4sets surface thickness Chromium test machine.

    ——Roller and shaft: Our Inspect team test 90% wheels and shafts, confirm all parts size precise and performance after processing.

    ——Our Inspect team test all roller surface, confirm all part surface paint above 5um.

    ——Mainframe and medium plate: Our Inspect team test the mainframe and plate cutting precise.

    Assembling machine

    ——5 worker assemble and welding one machine body frame by three days.

    Machine painting

    ——Putty ensure weld parts surface smoothly, and environment-friendly paint ensure protect worker body and environment.

    Machine Manual use test

    ——Confirm the output sheet tolerance within 2mm.

    Cutter production

    ——According to the finally manufacture sheet, confirm the blade precise profile, Cr12MOV steel cutting knife finished by laser cutting.

    Storage

    ——To protect the machine surface clear and without damage, we paint again and package by the film.

    Machine production process

    Packaging

    Our products are usually available in two packaging methods: plastic film packaging and plastic film + wooden box packaging.

    1. The main machine is covered with plastic film.

    2. PLC control box, spare parts, and other small parts are packed by wooden cartons.

    Delivery

    Two days before delivery, we unpacked and repainted the machine and repackaged it.

    packing & transport

    1) Q: Do you have after-sales support?

    A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

    2) Q: How do your machines compare with other big companies in this market?

    A: We are up to date with the latest technology and improve our machines accordingly.

    3) Q: How does your factory do regarding quality control?

    A: Quality is the priority. we always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it’s packed for shipment.

    4) Q: Do you sell only standard machines?

    A: No, most of our machines are built according to customers’ specifications, using top brand name components.

    5) Q: Can you make the machine according to my design or prototype?

    A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
