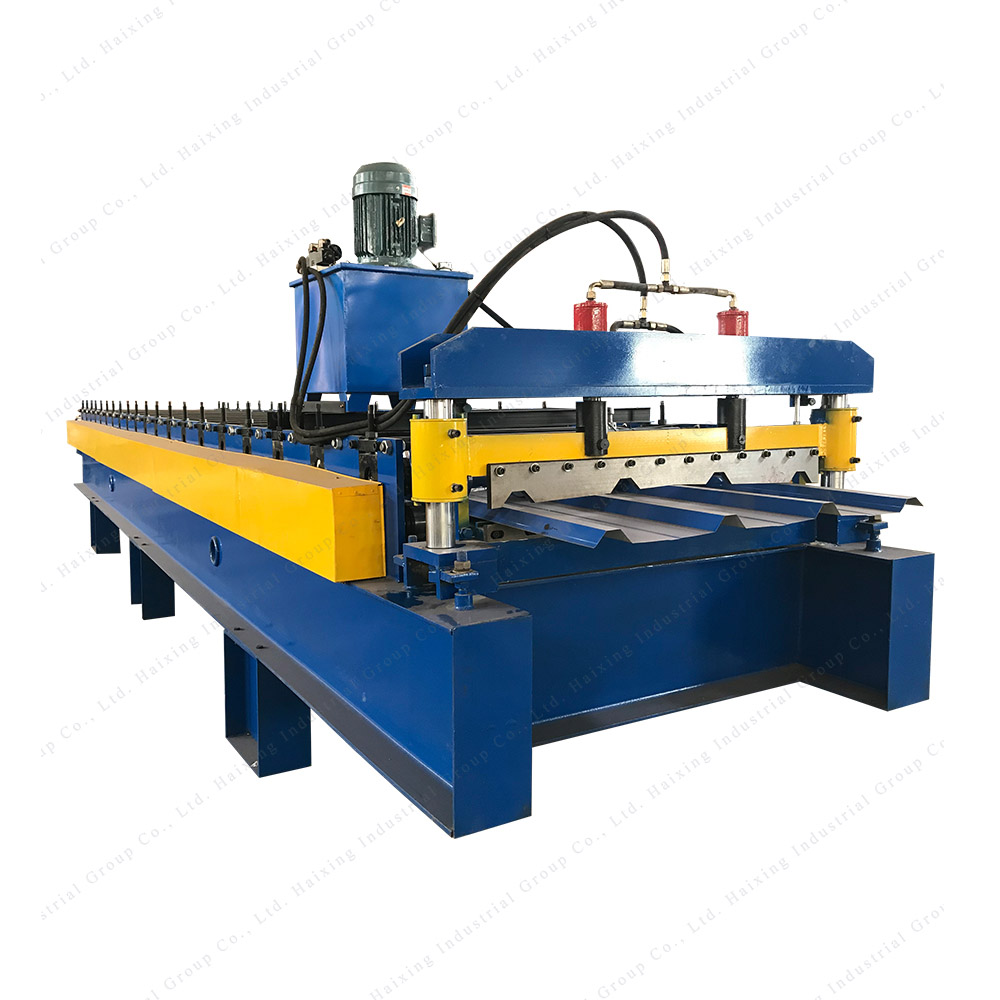

1100mm steel tile roofing sheet roll forming machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Roof roll forming machine parameters

    1

    Main motor power

    4kW, 3-phase or as your requests

    2

    Hydraulic motor power

    3kW

    3

    Hydraulic pressure

    10-12MPa

    4

    Voltage

    380V/3-phase/50Hz (or as your requirements)

    5

    Control system

    PLC delta inverter

    6

    Mainframe

    300/350mm H-beam or 350mm

    7

    Backboard thickness

    16mm

    8

    Chain size

    1 Inch

    9

    Feeding material

    color steel coils

    10

    Feeding thickness

    0.3-0.8mm

    11

    Effective width

    800mm

    12

    Productivity

    0-15/min

    13

    Roll station

    13 roll steps (according to different design)

    14

    Roller diameter

    70mm (depends on different design)

    15

    Roller material

    45# steel

    16

    Cutter material

    Cr12

    17

    Cr-plating size

    0.05mm

    18

    Overall size

    6800*1400*1150mm

    19

    Total weight

    4.8 tons

    Components:

    Manual decoiler: 1 set

    Guiding platform: 1 set

    Coil strip leveler: 1 set

    Main machine of roll forming: 1 set

    Electric-motor: 1 set

    Cutting device: 1 set

    Hydraulic station: 1 set

    PLC control: 1 set

    Supporter table: 1 set

    decoiler type

    PLC control console

    roll forming&output table

    Easy-broken parts

    packing & transport
